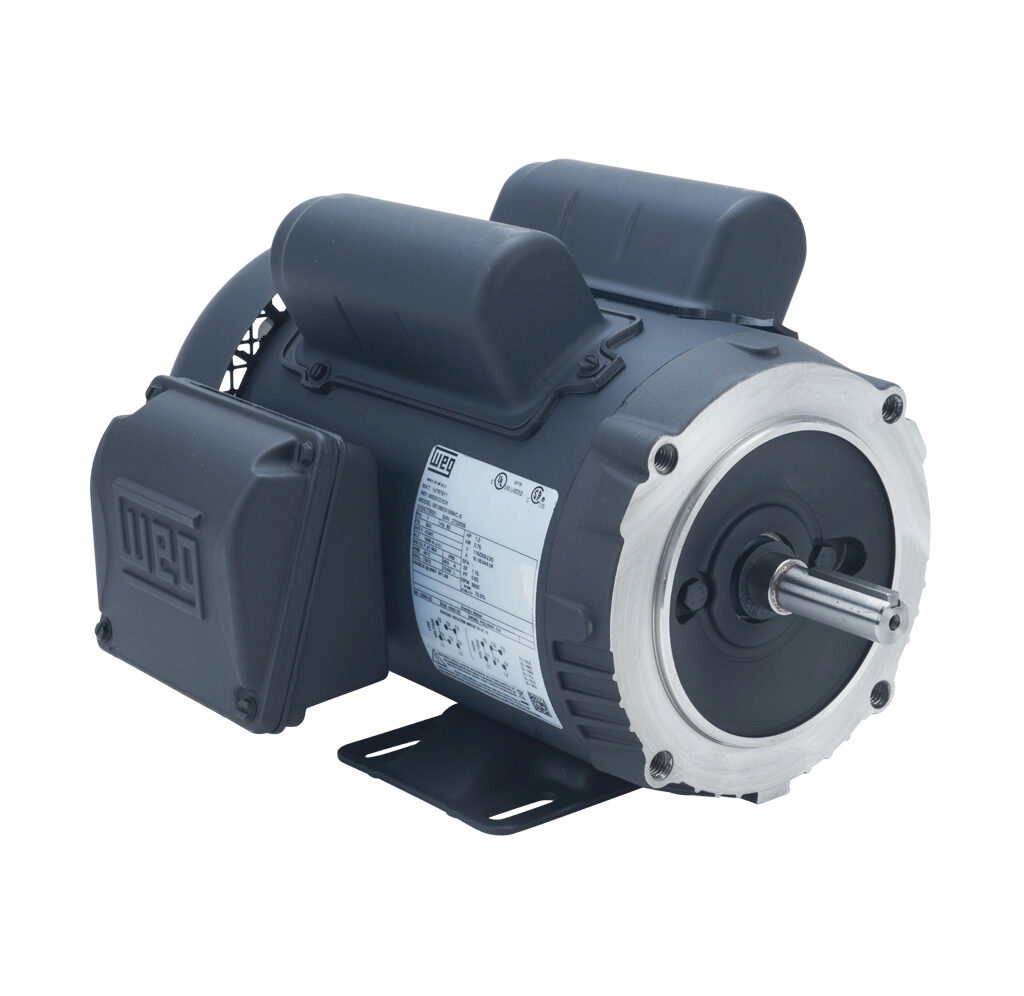

WEG 00136ES1B56C-S 14797811 General Purpose Motor, TEAO/TEFC RolLED Steel 56C Frame, 1 HP, 3500 RPM, 115/208-230V, Foot-mounted
3600 rpm
1 hp
56C
Get it by Thursday, Jul 2
5.00% off
€508.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 10.1/5.64-5.06A , 5.06-5.64/10.1A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 280% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 14 sec. |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Drive End Flange Type | C-Face |
| Duty Cycle | S1 |
| Efficiency | 70% |
| Efficiency 50% | 55% , 82% |
| Efficiency 75% | 64% |
| Efficiency @ 1 % | 92% |
| Efficiency @ 100% | 70% |
| Efficiency @ 75 % | 88% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Fl Amps | 5.1A |
| Fl Efficiency | 70% |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 10.1/5.64-56A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 8 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Integrated Brake | No |
| Inverter Rated | No |
| Ip Rating | IP55 |
| L. R. Amps | 42.5-47.4/85A , 85/47.4-42.5A |
| Length Less Shaft | 11 1/4" |
| Locked Rotor Time | 8 sec. |
| Locked Rotor Time (cold) | 14 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 8.4X(Code L) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Max. Ambient Temp. | 104°F |
| Moment Of Inertia | 0.0472 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0472 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Speed | 3500 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 3500 RPM |
| Nema Design | Design N |
| No Load Amps | 2.37-2.75/5.5A , 5.5/2.37-2.75A |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Noise Level | 68 dBA |
| Nominal Efficiency | 70% |
| Output | 1 hp |
| Output Rating | 1 hp |
| Overall Length | 13 1/8" |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 100% | 0.92 |
| Power Factor 50% | 0.82 |
| Power Factor 75% | 0.88 |
| Power Factor @ 1 % | 70 |
| Power Factor @ 50 % | 55 |
| Power Factor @ 75 % | 64 |
| Product Datasheet | weg-00136es1b56c-s.pdf |
| Product Type | General Purpose |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Speed | 3400-3600 RPM , 3500 RPM , 3600 RPM |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 1.5 lbs.-ft. |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V , 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 13.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 33.34 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | - | - | 56HC | S1 | 4 | 8.6/3.71-4.3A | Foot Mounted | €781.20 | |
 |
00218ES1RFD56H-S | 115/230V | 2 hp | - | 56H | S1 | 4 | 12.2/6.1A | Foot Mounted | €631.13 | |
 |
.5018ES1BCH56 | 115/208-230V AC | 1/2 hp | - | 56 | Continuous | 4 | 6.4/0-3.2A | Foot Mounted | €342.43 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | 56 | S1 | 2 | 4.6/1.98-2.3A | Foot Mounted | €515.42 | |
 |
.7518ES1RFD56-S | 115/230V | 3/4 hp | - | 56 | S1 | 4 | 8/4A | Foot Mounted | €425.94 | |
 |
.5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | W56 | S1 | 4 | 6.6/2.85-3.3A | Foot Mounted | €372.25 | |
 |
00118ES1EOL143T | 208-230/460V | 1 hp | - | 143T | S1 | 4 | 2.75/4.74-5.5A | F-1 | €440.02 |
