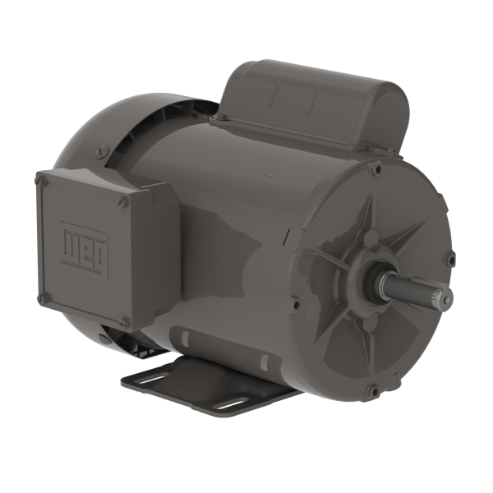

WEG .5018ES1BCH56 11690091 Electric Motor, 1/2Hp, 60Hz, 1800 Rpm
Get it by Tuesday, Dec 23
€342.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 280% |
| Cold Locked Rotor Time | 10 sec. |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 64% |
| Efficiency At 50 % | 46% |
| Efficiency At 75 % | 57% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Horsepower | 1/2 hp |
| Hot Locked Rotor Time | 6 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 40/19-20A |
| Locked Rotor Torque | 200% |
| Lrc | 5.0X(Code L) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.0973 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1750 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 6.4/0-3.2A |
| No. Of Holes | 2 |
| No. Of Poles | 4 |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL7022 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor At 1 % | 65 |
| Power Factor At 50 % | 54 |
| Power Factor At 75 % | 62 |
| Rated Current | 8/3.8-4A |
| Rated Torque | 1.5 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Service Factor | Hp | No. Of Poles | Synchronous Speed | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
35018EP3G449T-W22 | 460V AC | 3 | 60 Hz | 1.15 | 350 hp | 4 | 1800 RPM | Foot Mounted | €41,626.63 | |
 |
01536ET3E254TC-S | 230/460/190-220/380-415V AC | 3 | 60 Hz | 1.15 | 15 hp | 2 | 3600 RPM | Foot Mounted | €1,918.19 | |
 |
00236ET3E145TC-S | 230/460/190-220/380-415V AC | 3 | 50/60 Hz | 1.15 | - | 2 | 3600 RPM | Foot Mounted | €643.06 | |
|
00718ET3H213TC-S | 575V AC | 3 | 60 Hz | 1.15 | 7 1/2 hp | 4 | 1800 RPM | Foot Mounted | €1,185.92 | |
 |
00112ET3P145T-W22 | 200V AC | 3 | 60 Hz | 1.25 | - | 6 | 1200 RPM | Foot Mounted | €725.38 | |
 |
01012ET3E256TC-S | 230/460/190-220/380-415V AC | 3 | 50/60 Hz | - | - | 6 | 1200 RPM | Foot Mounted | €2,483.13 | |
 |
.5018ES1RCHO56 | 115-230V | 1 | 60 Hz | 1.15 | - | 4 | 1800 RPM | Foot Mounted | €348.38 |
