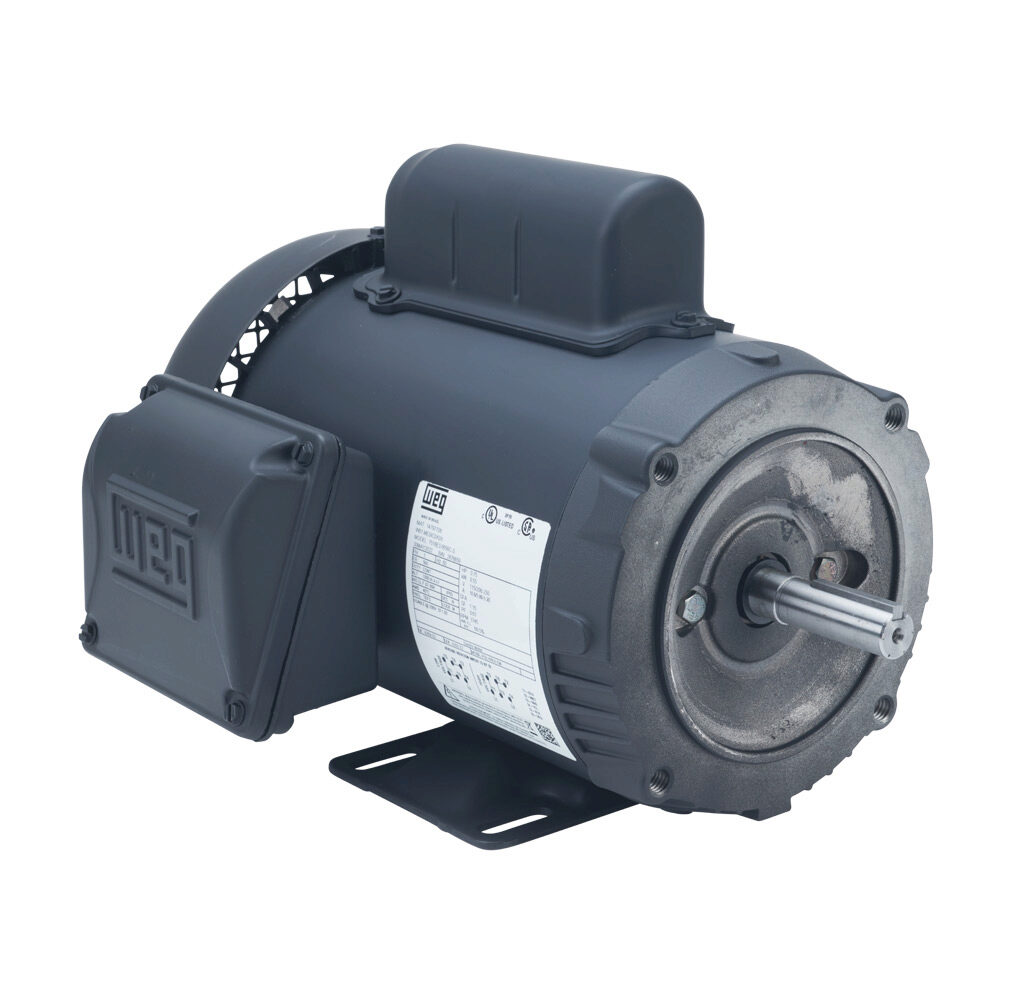

WEG .7518ES1B56C-S 14797708 General Purpose Motor, TEAO/TEFC Rolled Steel 56C Frame, 0.75 HP, 1745 RPM, 115/208-230V, Foot-mounted
1800 rpm
0.75 hp
56C
Get it by Monday, Apr 6
€604.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 270% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Steel |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency | 68.5% |
| Efficiency At 1 % | 67% |
| Efficiency At 50 % | 47% |
| Efficiency At 75 % | 58% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grade | Grade 1045 |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 3/4 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 67.8/37.5-33.9A |
| Locked Rotor Torque | 300% |
| Lrc | 6.4X(Code M) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0778 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 1745 RPM |
| Motor Type | Induction |
| Mounting | C-Face/Rigid Base , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1745 RPM |
| Nema Design | Design N |
| No Load Amps | 8/3.45-4A |
| No. Of Poles | 4 |
| Noise Level | 54 dBA |
| Number Of Phases | 1 |
| Output | 3/4 hp |
| Output Rating | 3/4 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor At 1 % | 68.5 |
| Power Factor At 50 % | 57 |
| Power Factor At 75 % | 65 |
| Rated Current | 10.6/5.86-5.3A |
| Rated Torque | 2.26 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V |
| Voltage Rating | 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 13.48 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 33.31 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Full Load Amps | Frame | Rpm | Duty Cycle | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | - | 1745 RPM | - | 56HC | 1700-1800 RPM | S1 | 8.6/3.71-4.3A | €781.20 | |
 |
00218ES1RFD56H-S | 115/230V AC | 2 hp | - | - | 56H | 1700-1800 RPM | S1 | 12.2/6.1A | €631.13 | |
 |
.5018ES1BCH56 | 115/208-230V | - | - | - | 56 | 1700-1800 RPM | Continuous | 6.4/0-3.2A | €342.43 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | - | 56 | 3400-3600 RPM | S1 | 4.6/1.98-2.3A | €515.42 | |
 |
.7518ES1RFD56-S | 115/230V AC | 3/4 hp | - | - | 56 | 1700-1800 RPM | S1 | 8/4A | €425.94 | |
 |
.5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | - | W56 | 1700-1800 RPM | S1 | 6.6/2.85-3.3A | €372.25 | |
 |
00118ES1EOL143T | 208-230/460V | - | - | - | 143T | 1700-1800 RPM | S1 | 2.75/4.74-5.5A | €440.02 |
