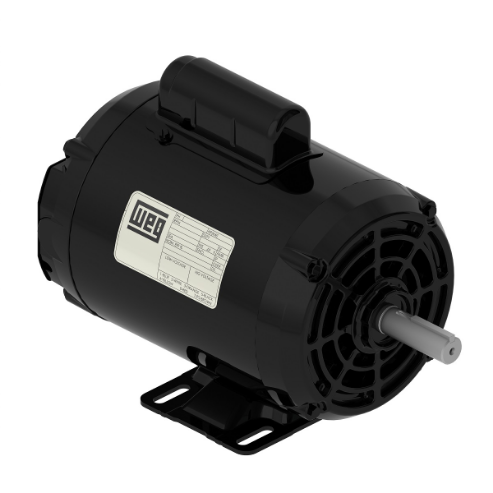

WEG .5012ES1B56-S 14796990 General Purpose Motor, TEAO/TEFC Rolled Steel 56 Frame, 0.5 HP, 1170 RPM, 115/208-230 V
1200 rpm
0.50 hp
56
Get it by Thursday, Jul 2
€610.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 6.4/3.54-3.2A |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% |
| Cold Locked Rotor Time | 32 sec. |
| Composition | Steel |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency 50% | 58% |
| Efficiency @ 1 % | 72% |
| Efficiency @ 75 % | 67% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Hp | 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 42.2/23.4-21.1A |
| Locked Rotor Torque | 240% |
| Lrc | 6.6X(Code L) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.1241 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1170 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 4.4/1.9-2.2A |
| No. Of Poles | 6 |
| Noise Level | 54 dBA |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor @ 1 % | 67 |
| Power Factor @ 50 % | 54 |
| Power Factor @ 75 % | 63 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 2.24 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V , 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 34.31 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | - | - | 56HC | S1 | 4 | 8.6/3.71-4.3A | Foot Mounted | €781.20 | |
 |
00218ES1RFD56H-S | 115/230V | 2 hp | - | 56H | S1 | 4 | 12.2/6.1A | Foot Mounted | €631.13 | |
 |
.5018ES1BCH56 | 115/208-230V AC | 1/2 hp | - | 56 | Continuous | 4 | 6.4/0-3.2A | Foot Mounted | €342.43 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | 56 | S1 | 2 | 4.6/1.98-2.3A | Foot Mounted | €515.42 | |
 |
.7518ES1RFD56-S | 115/230V | 3/4 hp | - | 56 | S1 | 4 | 8/4A | Foot Mounted | €425.94 | |
 |
.5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | W56 | S1 | 4 | 6.6/2.85-3.3A | Foot Mounted | €372.25 | |
 |
00118ES1EOL143T | 208-230/460V | 1 hp | - | 143T | S1 | 4 | 2.75/4.74-5.5A | F-1 | €440.02 |
