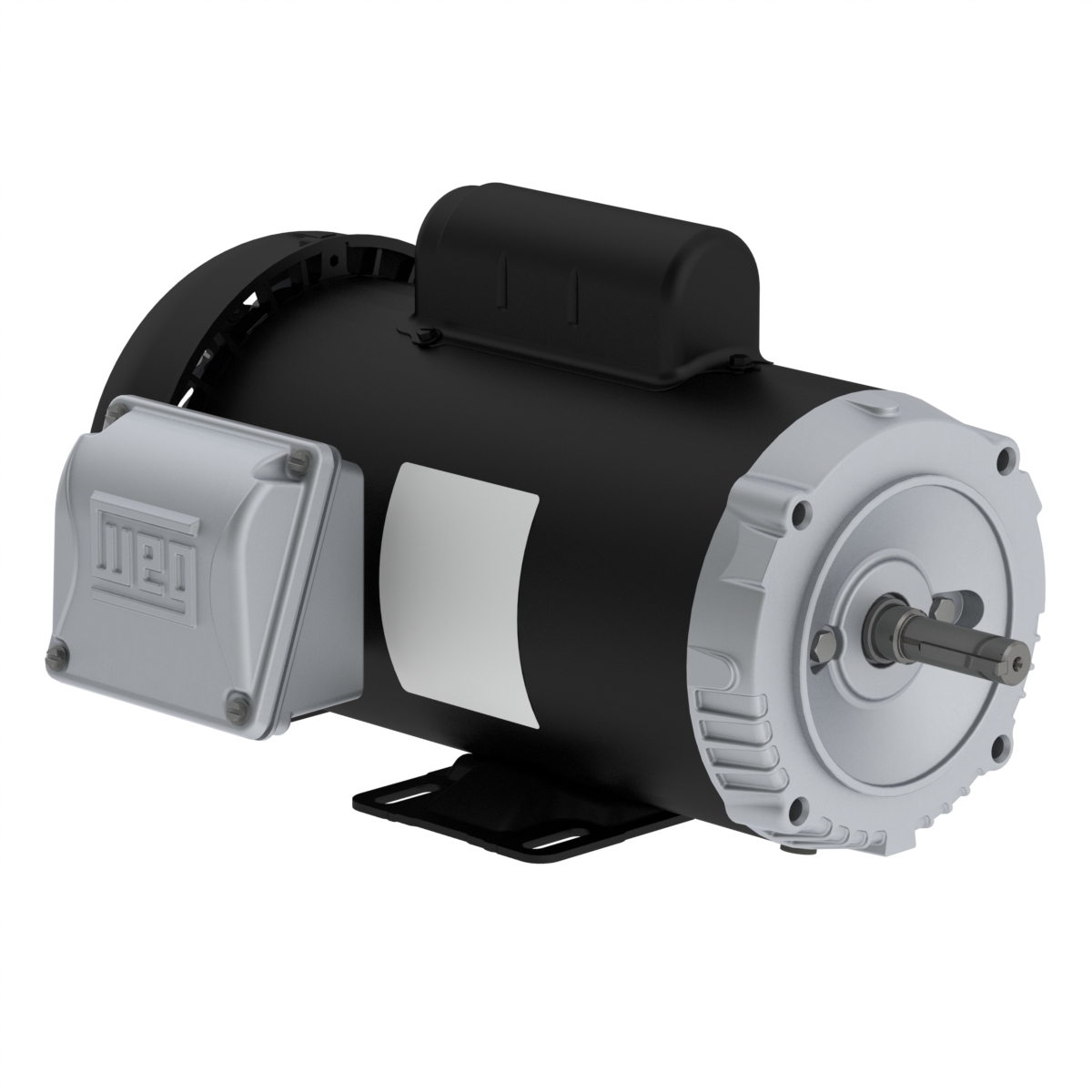

WEG 00118ES1BO56C-S Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB9YDU

WEG 00118ES1BO56C-S 14797785 General Purpose Motor, TEAO/TEFC RolLED Steel 56C Frame, 1 HP, 1745 RPM, 115/208-230V, Foot-mounted, Auto Overload Protector

Item: BB9YDUModel: 00118ES1BO56C-SCross Ref: 14797785
Check Availability
In Stock

Get it by Monday, Jul 13

€523.75 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 13.6/7.52-6.8A , 6.8-7.52/13.6A
Balancing Method 1/2" Key
Bearing Cap Yes
Bolt Material Carbon Steel
Break Down Torque 270%
Cold Locked Rotor Time 14 sec.
Composition Steel
Design L
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 48% , 62%
Efficiency 75% 68%
Efficiency @ 1 % 68%
Efficiency @ 100% 71%
Efficiency @ 75 % 60%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange C
Flange Type C
Frame 56C
Frame Material Rolled Steel
Frame Size 56C
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 8 sec.
Hp 1 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 45.6-50.4/91.1A , 91.1/50.4-45.6A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Torque 280%
Lrc 6.7X(Code M)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1037 lbs.-sq. ft.
Moment Of Inertia (j) 0.1037 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1745 RPM
Mounting F-1 , Foot Mounted
No Load Amps 4.14-4.8/9.6A , 9.6/4.14-4.8A
No. Of Poles 4
Noise Level 54 dBA
Output 1 hp
Output Rating 1 hp
Overload Protection Automatic
Overload Protector Automatic
Painting Munsell N 1-Matte 207N (ISO 12944-C2)
Phase 1
Power Factor 100% 0.68
Power Factor 50% 0.48
Power Factor 75% 0.6
Power Factor @ 1 % 71
Power Factor @ 50 % 62
Power Factor @ 75 % 68
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Speed 1700-1800 RPM , 1745 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 3.01 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelVoltageHpFull Load AmpsFrameDuty CycleNo. Of PolesNo Load AmpsMountingPrice
WEG 00158ES1B56C-S Electric Motor, 1 1/2Hp, 60 HzHz, 1800 Rpm | BB2CJB 00158ES1B56C-S115/208-230V AC--56HCS148.6/3.71-4.3AFoot Mounted€781.20
WEG 00218ES1RFD56H-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB4XPH 00218ES1RFD56H-S115/230V2 hp-56HS1412.2/6.1AFoot Mounted€631.13
WEG .5018ES1BCH56 Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BB6UNY .5018ES1BCH56115/208-230V AC1/2 hp-56Continuous46.4/0-3.2AFoot Mounted€342.43
WEG 00156ES1B56-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB7FCT 00156ES1B56-S115/208-230V AC1 1/2 hp-56S124.6/1.98-2.3AFoot Mounted€515.42
WEG .7518ES1RFD56-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB7QGN .7518ES1RFD56-S115/230V3/4 hp-56S148/4AFoot Mounted€425.94
WEG .5018ES1BW56-S Electric Motor, 1/2Hp, 60 HzHz, 1730 Rpm | BB7RJG .5018ES1BW56-S115/208-230V AC1/2 hp-W56S146.6/2.85-3.3AFoot Mounted€372.25
WEG 00118ES1EOL143T Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB8APV 00118ES1EOL143T208-230/460V1 hp-143TS142.75/4.74-5.5AF-1€440.02
