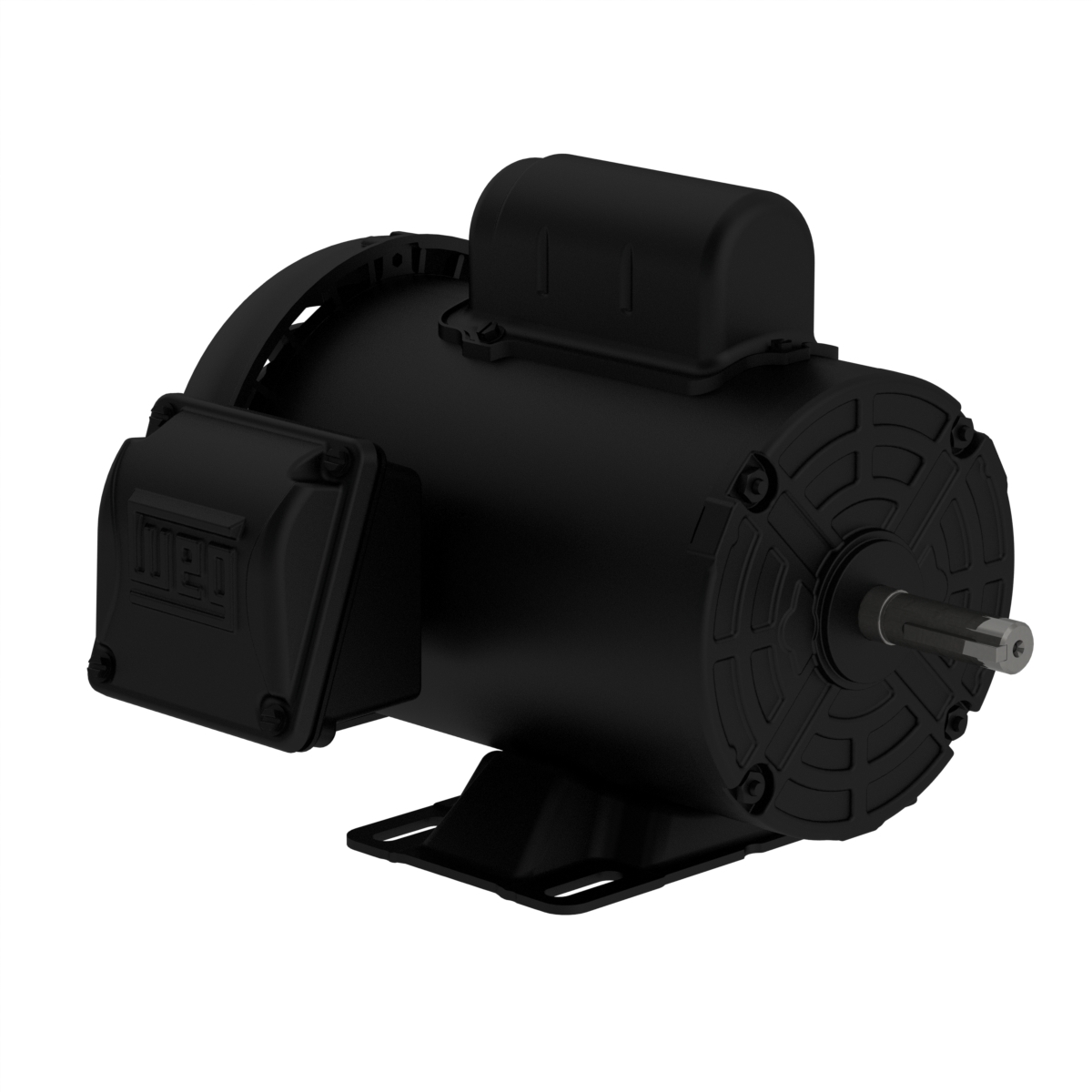

WEG .7518ES1B56-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BC2BNW

WEG .7518ES1B56-S 14797709 General Purpose Motor, TEAO/TEFC Rolled Steel 56 Frame, 0.75 HP, 1745 RPM, 115/208-230 V

Item: BC2BNWModel: .7518ES1B56-SCross Ref: 14797709
Check Availability
In Stock
RPM
HP

Get it by Tuesday, Jul 7

€415.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Electric Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 10.6/5.86-5.3A , 5.3-5.86/10.6A
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break Down Torque 270%
Cold Locked Rotor Time 18 sec.
Composition Steel
Design No
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 47% , 57%
Efficiency 75% 65%
Efficiency @ 1 % 67%
Efficiency @ 100% 68.5%
Efficiency @ 75 % 58%
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange Without
Flange Type Without
Frame 56
Frame Material Rolled Steel
Frequency 60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 10 sec.
Hp 3/4 hp
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 33.9-37.5/67.8A , 67.8/37.5-33.9A
Locked Rotor Time (cold) 18 sec.
Locked Rotor Time(hot) 10 sec.
Locked Rotor Torque 300%
Lrc 6.4X(Code M)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.0778 lbs.-sq. ft.
Moment Of Inertia (j) 0.0778 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1745 RPM
Mounting F-1 , Foot Mounted
No Load Amps 3.45-4/8A , 8/3.45-4A
No. Of Poles 4
Noise Level 54 dBA
Output 3/4 hp
Output Rating 3/4 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 1
Power Factor 100% 0.67
Power Factor 50% 0.47
Power Factor 75% 0.58
Power Factor @ 1 % 68.5
Power Factor @ 50 % 57
Power Factor @ 75 % 65
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Speed 1700-1800 RPM , 1745 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 2.26 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208-230V AC

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)25.4
Ship length (cm)33.31
Ship width (cm)25.4
Country of OriginBR

Product Variants

ProductModelVoltageHpFull Load AmpsFrameDuty CycleNo. Of PolesNo Load AmpsMountingPrice
WEG 00158ES1B56C-S Electric Motor, 1 1/2Hp, 60 HzHz, 1800 Rpm | BB2CJB 00158ES1B56C-S115/208-230V AC--56HCS148.6/3.71-4.3AFoot Mounted€781.20
WEG 00218ES1RFD56H-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB4XPH 00218ES1RFD56H-S115/230V2 hp-56HS1412.2/6.1AFoot Mounted€631.13
WEG .5018ES1BCH56 Electric Motor, 1/2Hp, 60Hz, 1800 Rpm | BB6UNY .5018ES1BCH56115/208-230V AC1/2 hp-56Continuous46.4/0-3.2AFoot Mounted€342.43
WEG 00156ES1B56-S Electric Motor, 1 1/2Hp, 60Hz, 3600 Rpm | BB7FCT 00156ES1B56-S115/208-230V AC1 1/2 hp-56S124.6/1.98-2.3AFoot Mounted€515.42
WEG .7518ES1RFD56-S Electric Motor, 0.75Hp, 60Hz, 1800 Rpm | BB7QGN .7518ES1RFD56-S115/230V3/4 hp-56S148/4AFoot Mounted€425.94
WEG .5018ES1BW56-S Electric Motor, 1/2Hp, 60 HzHz, 1730 Rpm | BB7RJG .5018ES1BW56-S115/208-230V AC1/2 hp-W56S146.6/2.85-3.3AFoot Mounted€372.25
WEG 00118ES1EOL143T Electric Motor, 1Hp, 60Hz, 1800 Rpm | BB8APV 00118ES1EOL143T208-230/460V1 hp-143TS142.75/4.74-5.5AF-1€440.02
