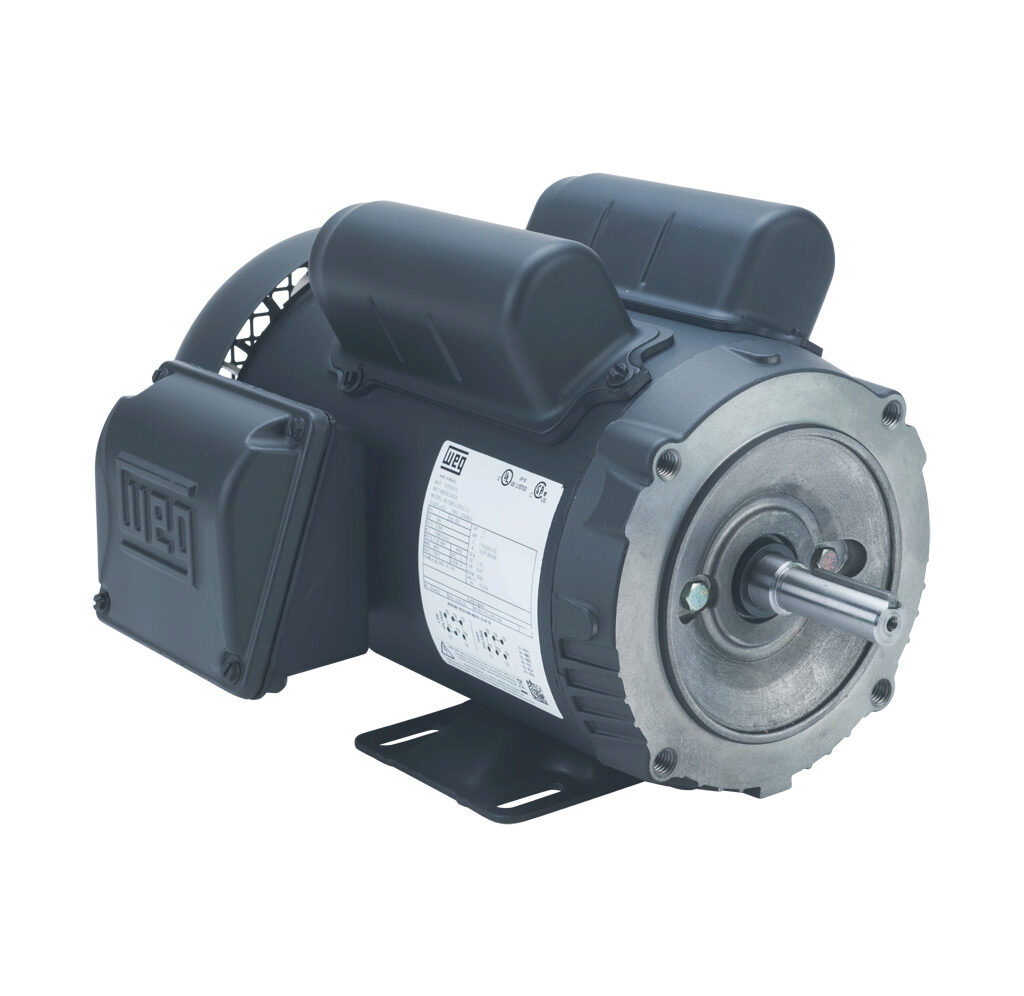

WEG 00156ES1B56C-S 14797815 General Purpose Motor, TEAO/TEFC RolLED Steel 56C Frame, 1.5 HP, 3500 RPM, 115/208-230V, Foot-mounted
3600 rpm
1.5 hp
56C
Get it by Tuesday, Apr 7
€541.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 250% |
| Breakdown Torque | 250% |
| Cold Locked Rotor Time | 12 sec. |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 75% |
| Efficiency @ 100% | 75% |
| Efficiency @ 50% | 66% |
| Efficiency @ 75% | 73% |
| Efficiency At 1 % | 97% |
| Efficiency At 50 % | 92% |
| Efficiency At 75 % | 95% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 7 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 106/58.4-52.8A |
| L.r. Amperes | 52.8-58.4/106A |
| Locked Rotor Time | 7 sec. |
| Locked Rotor Time (cold) | 12 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 8.0X(Code K) |
| Main Terminal Box Hole | 0.881" |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0589 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0589 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 3500 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 3500 RPM |
| Nema Design | Design L |
| No Load Amps | 1.98-2.3/4.6A , 4.6/1.98-2.3A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Number Of Phases | 1 |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 50% | 0.92 |
| Power Factor 75% | 0.95 |
| Power Factor At 1 % | 75 |
| Power Factor At 50 % | 66 |
| Power Factor At 75 % | 73 |
| Power Factor_100% | 0.97 |
| Product Datasheet | weg-00156es1b56c-s.pdf |
| Rated Current | 13.2/7.30-6.6A , 6.6-7.3/13.2A |
| Rated Speed | 3500 RPM |
| Rated Torque | 2.25 lbs.-ft. |
| Rated Voltage | 115/208-230V , 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
| Voltage Rating | 115/208-230V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 15.93 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 35.31 |
| Ship width (cm) | 25.4 |
| Country of Origin | BR |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Full Load Amps | Frame | Rpm | Duty Cycle | No Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | - | 1745 RPM | - | 56HC | 1700-1800 RPM | S1 | 8.6/3.71-4.3A | €781.20 | |
 |
00218ES1RFD56H-S | 115/230V AC | 2 hp | - | - | 56H | 1700-1800 RPM | S1 | 12.2/6.1A | €631.13 | |
 |
.5018ES1BCH56 | 115/208-230V | - | - | - | 56 | 1700-1800 RPM | Continuous | 6.4/0-3.2A | €342.43 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | - | 56 | 3400-3600 RPM | S1 | 4.6/1.98-2.3A | €515.42 | |
 |
.7518ES1RFD56-S | 115/230V AC | 3/4 hp | - | - | 56 | 1700-1800 RPM | S1 | 8/4A | €425.94 | |
 |
.5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | - | W56 | 1700-1800 RPM | S1 | 6.6/2.85-3.3A | €372.25 | |
 |
00118ES1EOL143T | 208-230/460V | - | - | - | 143T | 1700-1800 RPM | S1 | 2.75/4.74-5.5A | €440.02 |
