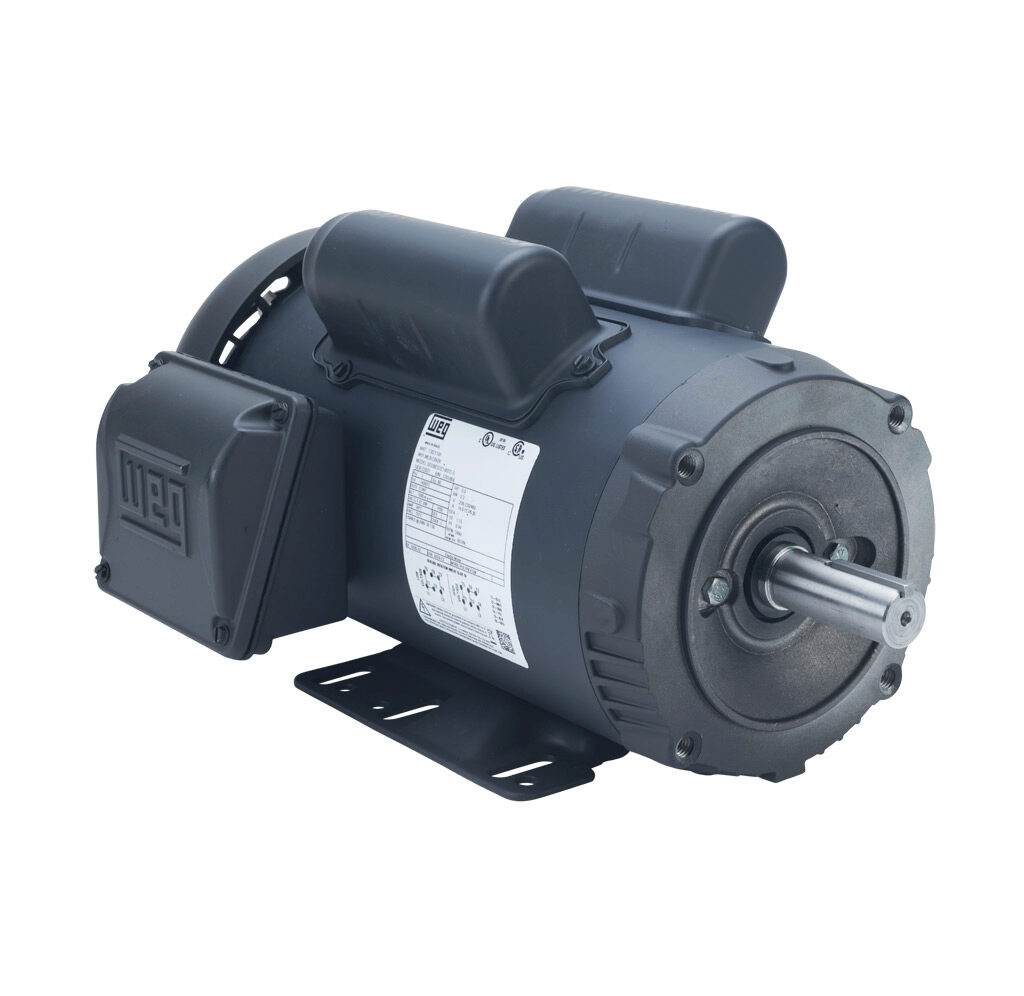

WEG 00336ES1E145TC-S 13821108 General Purpose Motor, TEAO/TEFC RolLED Steel 143/5TC Frame, 3 HP, 3490 RPM, 208-230/460 V
3600 rpm
3 hp
145TC
Get it by Wednesday, Jul 8
€1,400.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 14-12.7/6.35A , 6.35/12.7-14A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 10 sec. |
| Composition | Steel |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 80% |
| Efficiency 50% | 76% , 86% |
| Efficiency 75% | 79% |
| Efficiency @ 1 % | 94% |
| Efficiency @ 100% | 80% |
| Efficiency @ 75 % | 92% |
| Efficiency Group | Standard Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Industrial Polymer , Polymer |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 6 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 112-102/50.8A , 50.8/102-112A |
| Locked Rotor Time | 6 sec. |
| Locked Rotor Time (cold) | 10 sec. |
| Locked Rotor Torque | 210% |
| Lrc | 8.0X(Code J) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.0944 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.0944 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 143/5TC |
| Motor Speed | 3490 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Speed | 3490 RPM |
| Nema Design | Design L |
| No Load Amps | 2/3.45-4A , 3.45-4/2A |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor 100% | 0.94 |
| Power Factor 50% | 0.86 |
| Power Factor 75% | 0.92 |
| Power Factor @ 1 % | 80 |
| Power Factor @ 50 % | 76 |
| Power Factor @ 75 % | 79 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 3.06% |
| Speed | 3400-3600 RPM , 3490 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.51 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 208-230/460V AC |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 23.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | No Load Amps | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | - | - | 56HC | S1 | 4 | 8.6/3.71-4.3A | Foot Mounted | €781.20 | |
 |
00218ES1RFD56H-S | 115/230V | 2 hp | - | 56H | S1 | 4 | 12.2/6.1A | Foot Mounted | €631.13 | |
 |
.5018ES1BCH56 | 115/208-230V AC | 1/2 hp | - | 56 | Continuous | 4 | 6.4/0-3.2A | Foot Mounted | €342.43 | |
 |
00156ES1B56-S | 115/208-230V AC | 1 1/2 hp | - | 56 | S1 | 2 | 4.6/1.98-2.3A | Foot Mounted | €515.42 | |
 |
.7518ES1RFD56-S | 115/230V | 3/4 hp | - | 56 | S1 | 4 | 8/4A | Foot Mounted | €425.94 | |
 |
.5018ES1BW56-S | 115/208-230V AC | 1/2 hp | - | W56 | S1 | 4 | 6.6/2.85-3.3A | Foot Mounted | €372.25 | |
 |
00118ES1EOL143T | 208-230/460V | 1 hp | - | 143T | S1 | 4 | 2.75/4.74-5.5A | F-1 | €440.02 |
