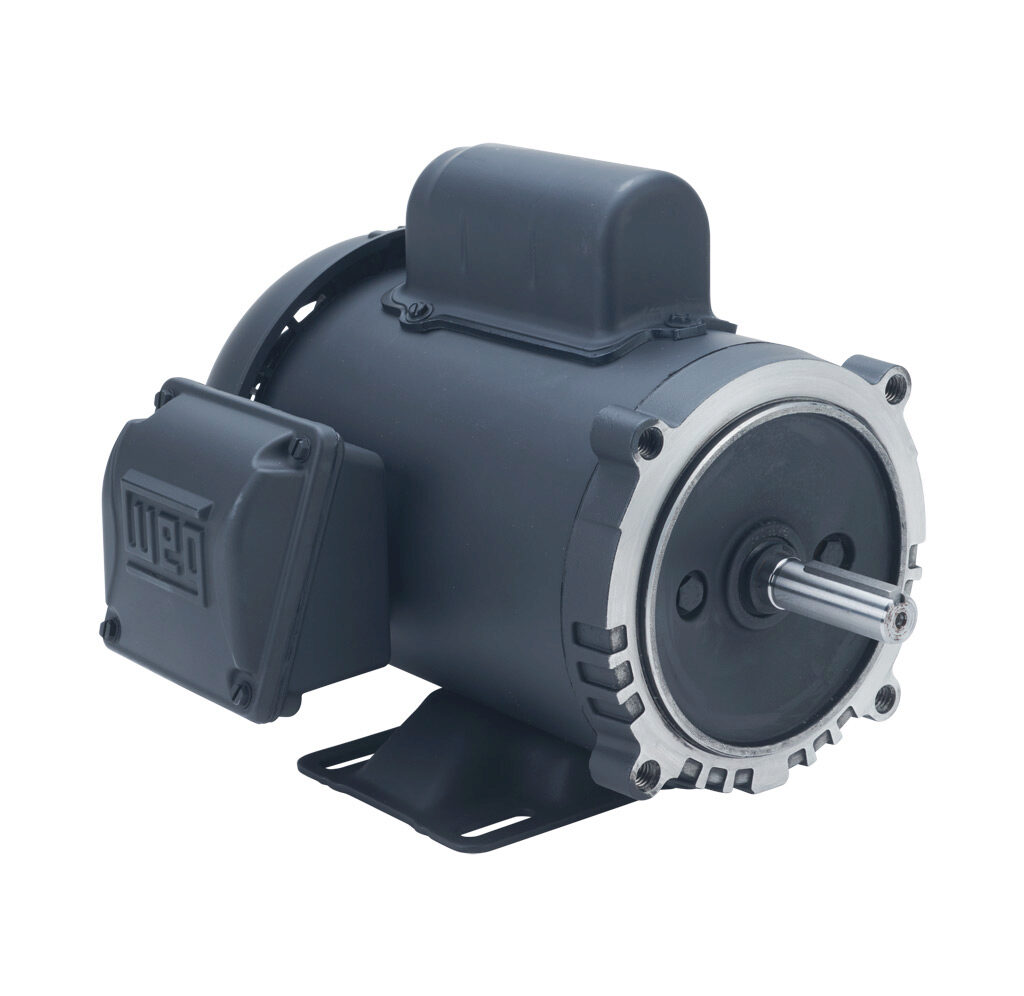

WEG .3318ES1BW56C-S Electric Motor, 0.33Hp, 60Hz, 1800 Rpm | BB9WAV

WEG .3318ES1BW56C-S 13624906 General Purpose Motor, TEAO/TEFC Rolled Steel W56C Frame, 0.33 HP, 1735 RPM, 115/208-230V, Foot-mounted

Item: BB9WAVModel: .3318ES1BW56C-SCross Ref: 13624906

Check Availability

In Stock

1800 rpm

RPM

0.33 hp

56C

Frame

Get it by Tuesday, Apr 7

€496.80 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Electric Motor
Altitude	1000 M.A.S.L. , 1000 MASL
Ambient Temp.	-20°C to +40°C
Balancing Method	Not Balanced
Bearing Cap	Yes
Bolt Material	Carbon Steel
Break-down Torque	280%
Breakdown Torque	280%
Cold Locked Rotor Time	21 sec.
Design	N
Drain	Rubber, Automatic
Drip Cover	Without
Duty Cycle	S1
Efficiency	61%
Efficiency @ 100%	61%
Efficiency @ 50%	46%
Efficiency @ 75%	55%
Efficiency At 1 %	59%
Efficiency At 50 %	42%
Efficiency At 75 %	51%
Efficiency Group	Standard Efficiency
Electrically Reversible	Yes
Enclosure	IC411
Enclosure Type	Tefc
Fan Cover Material	Industrial Polymer , Polymer
Fan Material	Plastic
Flange	C
Flange Type	C
Frame	W56C
Frame Material	Rolled Steel
Frequency	60 Hz
Grounding Lugs	Single
Hot Locked Rotor Time	12 sec.
Impregnation Method	Dip And Bake Polyester
Insulation Class	Class F
Integrated Brake	No
Ip Rating	IP55
L. R. Amps	33.6/18.6-16.8A
L.r. Amperes	16.8-18.6/33.6A
Locked Rotor Time (cold)	21 sec.
Locked Rotor Time (hot)	12 sec.
Locked Rotor Torque	320%
Lrc	5.6X(Code N)
Main Terminal Box Hole	0.881"
Main Terminal Box Hole Size	0.881"
Moment Of Inertia	0.0399 lbs.-sq. ft.
Moment Of Inertia (j)	0.0399 lbs.-sq. ft.
Motor Application	General Purpose
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame	56C
Motor Speed	1735 RPM
Motor Type	Induction
Mounting	F-1 , Foot Mounted
Mounting Orientation	Horizontal, Vertical
Nameplate Rpm	1735 RPM
Nema Design	Design N
No Load Amps	2.33-2.7/5.4A , 5.4/2.33-2.7A
No. Of Poles	4
Noise Level	52 dBA
Number Of Phases	1
Output	1/3 hp
Output Rating	0.33 hp , 1/3 hp
Overload Protection	No
Overload Protector	Without Overload Protector
Painting	Munsell N 1-Matte 207N (ISO 12944-C2)
Phase	1
Power Factor 50%	0.42
Power Factor 75%	0.51
Power Factor At 1 %	61
Power Factor At 50 %	46
Power Factor At 75 %	55
Power Factor_100%	0.59
Rated Current	3-3.32/6A , 6/3.32-3A
Rated Speed	1735 RPM
Rated Torque	0.999 lbs.-ft.
Rated Voltage	115/208-230V , 115/208-230V AC
Resilient Base	Without
Rotation	CW/CCW
Rpm	1700-1800 RPM
Screw Cap	Carbon Steel
Series	S Series
Service Factor	1.15
Shaft Diameter	5/8"
Shaft Material	Carbon Steel
Shaft Material Grade	Grade 1040/45
Shaft Type	Round With Square Key
Slip	3.61%
Starting Method	Direct On Line
Synchronous Speed	1800 RPM
Temp. Rise	80 K
Terminal Block	Without
Terminal Box	Left Position
Tropicalized Painting	Without
Voltage	115/208-230V AC
Voltage Rating	115/208-230V AC
Voltage Type	AC

Shipping Info:

Ship weight (kg)	9.56
Ship height (cm)	25.4
Ship length (cm)	29.21
Ship width (cm)	25.4
Country of Origin	BR

Product Variants

Model	Voltage	Hp	Nameplate Rpm	Full Load Amps	Frame	Rpm	Duty Cycle	No Load Amps	Price
00158ES1B56C-S	115/208-230V AC	-	1745 RPM	-	56HC	1700-1800 RPM	S1	8.6/3.71-4.3A	€781.20
00218ES1RFD56H-S	115/230V AC	2 hp	-	-	56H	1700-1800 RPM	S1	12.2/6.1A	€631.13
.5018ES1BCH56	115/208-230V	-	-	-	56	1700-1800 RPM	Continuous	6.4/0-3.2A	€342.43
00156ES1B56-S	115/208-230V AC	1 1/2 hp	-	-	56	3400-3600 RPM	S1	4.6/1.98-2.3A	€515.42
.7518ES1RFD56-S	115/230V AC	3/4 hp	-	-	56	1700-1800 RPM	S1	8/4A	€425.94
.5018ES1BW56-S	115/208-230V AC	1/2 hp	-	-	W56	1700-1800 RPM	S1	6.6/2.85-3.3A	€372.25
00118ES1EOL143T	208-230/460V	-	-	-	143T	1700-1800 RPM	S1	2.75/4.74-5.5A	€440.02
