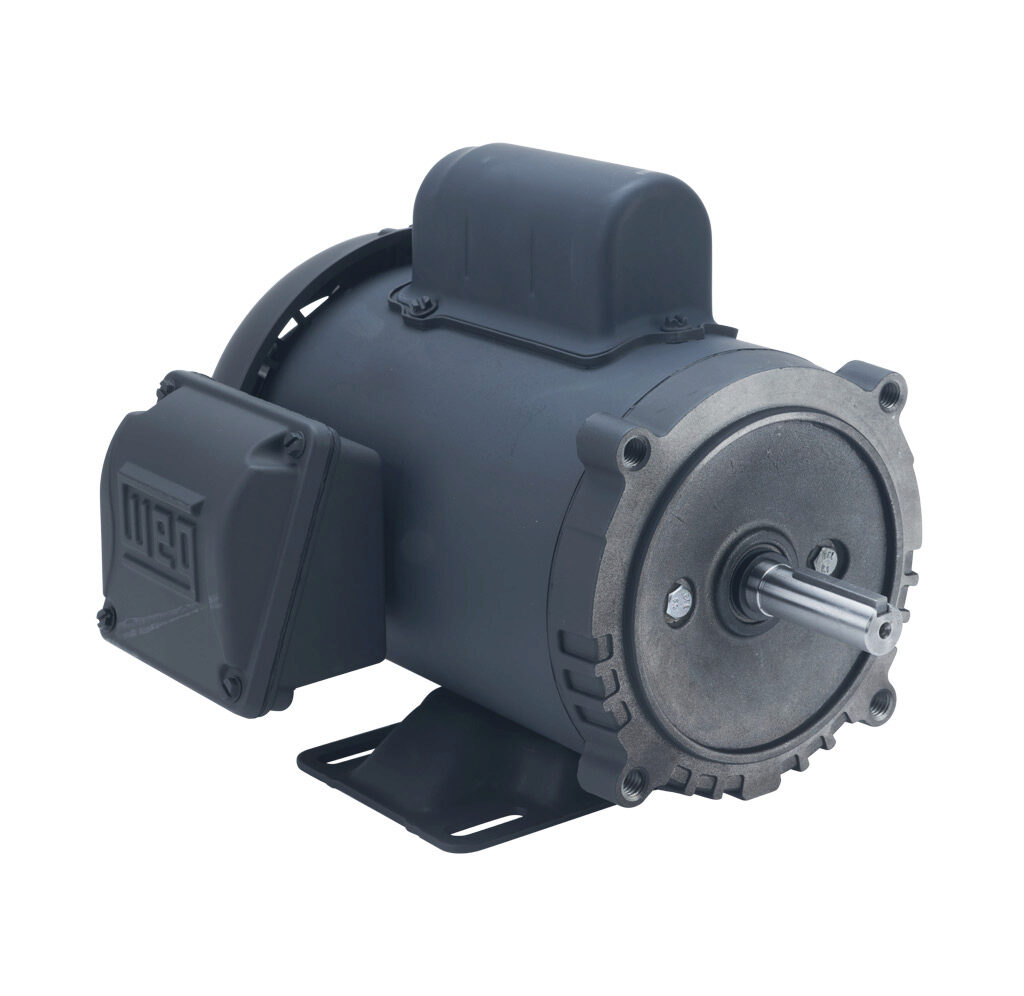

WEG .5036ES1BW56C-S 13608360 Electric Motor, 0.5Hp, 60Hz, 3600 Rpm
Get it by Thursday, Dec 18
€373.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | Not Balanced |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Cold Locked Rotor Time | 12 sec. |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 60% |
| Efficiency At 1 % | 76% |
| Efficiency At 50 % | 59% |
| Efficiency At 75 % | 69% |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | W56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 7 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| L. R. Amps | 56/31-28A |
| Locked Rotor Torque | 290% |
| Lrc | 8.0X(Code P) |
| Main Terminal Box Hole Size | 0.881" |
| Moment Of Inertia | 0.0233 lbs.-sq. ft. |
| Motor Application | General Purpose |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 56C |
| Motor Speed | 3500 RPM |
| Motor Type | Induction |
| Mounting | Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 3500 RPM |
| No Load Amps | 4.8/2.07-2.4A |
| No. Of Poles | 2 |
| Noise Level | 66 dBA |
| Number Of Phases | 1 |
| Output | 1/2 hp |
| Output Rating | 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor At 1 % | 60 |
| Power Factor At 50 % | 50 |
| Power Factor At 75 % | 58 |
| Rated Current | 7/3.87-3.5A |
| Rated Torque | 0.75 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Diameter | 5/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 10.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 2.54 |
| Country of Origin | BR |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Frame | Duty Cycle | No. Of Poles | Break-down Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00158ES1B56C-S | 115/208-230V AC | 1745 RPM | - | - | 56HC | S1 | 4 | 270% | €781.20 | |
 |
.5012ES1B56C-S | 115/208-230V AC | - | 1/2 hp | - | 56C | S1 | 6 | 260% | €638.29 | |
 |
00118ES1B56C-S | 115/208-230V AC | 1745 RPM | 1 hp | 13.6/7.52-6.8A | 56C | S1 | 4 | 270% | €660.25 | |
 |
.7518ES1B56C-S | 115/208-230V | 1745 RPM | 3/4 hp | - | 56C | Continuous | 4 | 270% | €604.80 | |
 |
.3336ES1BW56C-S | 115/208-230V AC | 3490 RPM | - | - | W56C | S1 | 2 | 290% | €471.60 | |
 |
.5018ES1BW56C-S | 115/208-230V AC | 1730 RPM | - | - | W56C | S1 | 4 | 270% | €397.29 | |
 |
00136ES1B56C-S | 115/208-230V AC | 3500 RPM | 1 hp | 10.1/5.64-56A | 56C | S1 | 2 | 280% | €534.99 |
