EATON BR Type Meter Breakers
Eaton BR type meter breakers are installed in a meter socket or meter base to protect the electrical system in a residential or small commercial application.
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Height | Interrupt Rating | Feed Type | No. Of Circuits | Ground | Main Circuit Breaker | Box Size | Notes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MBE1212L200BTF | 6 1/2" | 10 kAIC | Bottom | 12 | #6 AWG to 2/0 AWG | - | C | - | - | RFQ
|
| B | MBE1224B100BTSZ | 6 4/5" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2100 | A | - | €2,637.65 | |

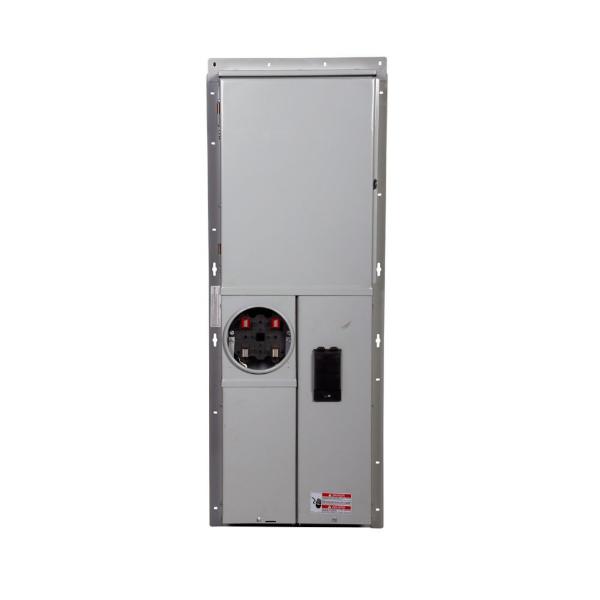

| C | MBED3042BH225BF | 6.3" | 10 kAIC | Bottom | 42 | #6 AWG to 2/0 AWG | CSR2225 | - | - | - | RFQ
|
| D | MBE1212L200BTS | 6.3" | 10 kAIC | Top/Bottom | 12 | #6 AWG to 2/0 AWG | - | C | - | €3,244.78 | |
| A | MBE88B200BTS | 6.3" | 10 kAIC | Top/Bottom | 8 | #6 AWG to 250 kcmil | CSR2200N | A | - | €2,206.61 | |

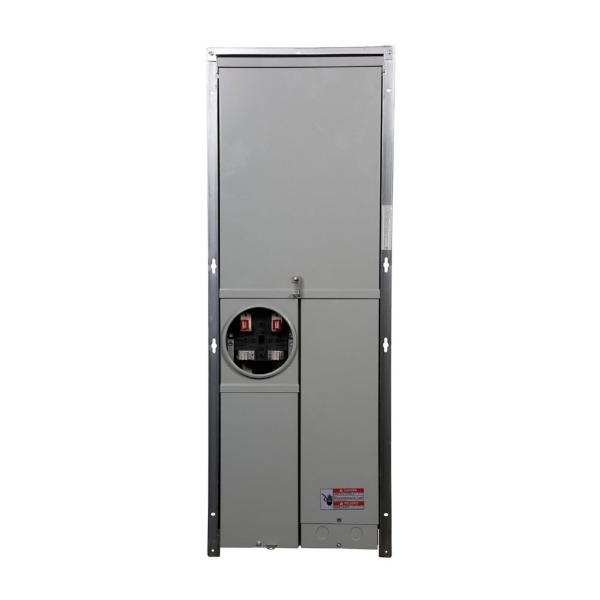

| E | MBE2040B150BF | 6.3" | 22 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | CSR2150 | B | - | €3,742.81 | |

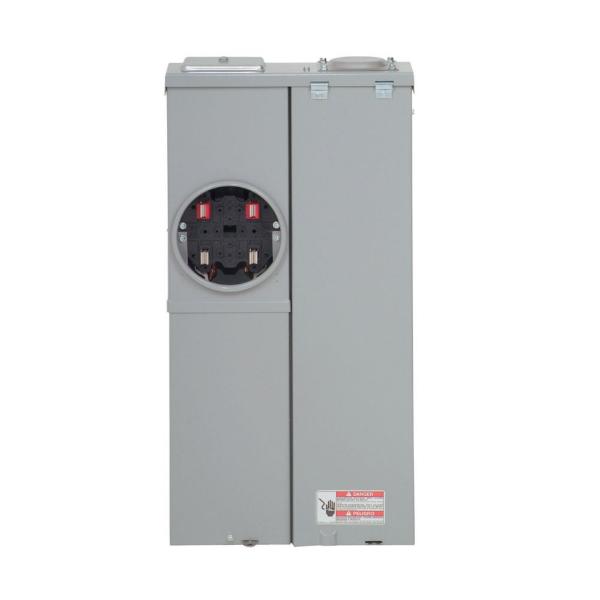

| F | MBE48B200BTS | 6.9" | 10 kAIC | Top/Bottom | 8 | #6 AWG to 250 kcmil | CSR2200 | A | - | €2,206.61 | |

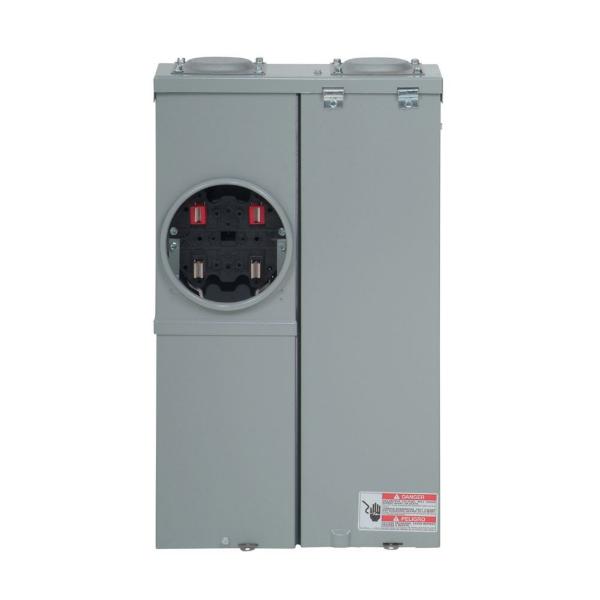

| G | MBE1224B100BTS | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2100 | A | - | €2,057.32 | |
| H | MBE1224B125BTFZ | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2125 | A | 2015 CEC/ Title 24 Compliant | €2,821.94 | |
| A | MBE1224B125BTS | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2125 | A | - | - | RFQ
|
| I | MBE1224B100BTFZ | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2100 | A | - | €2,843.97 | |
| A | MBE24L125BTF | 23 22/25" | 22 kAIC | Top/Bottom | 4 | #14 AWG to 2/0 AWG | - | A | - | €911.75 | |
| A | MBE1224B125BTF | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2125 | A | - | - | RFQ
|

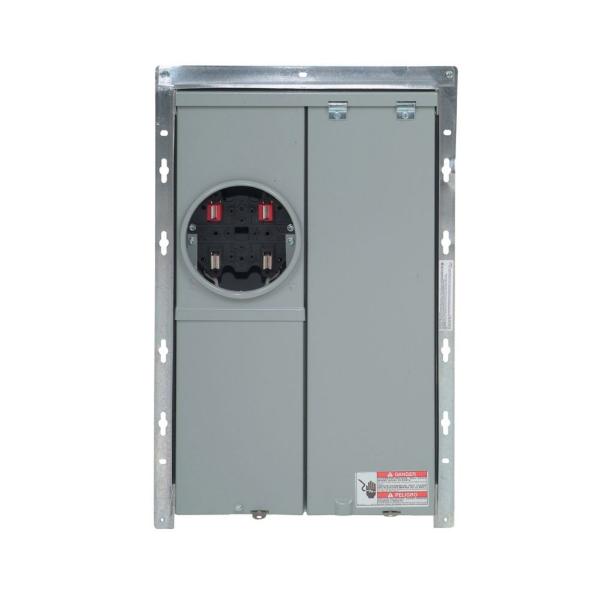

| J | MBE1224B100BTF | 23 22/25" | 10 kAIC | Top/Bottom | 24 | #14 AWG to 2/0 AWG | BR2100 | A | - | €2,057.32 | |

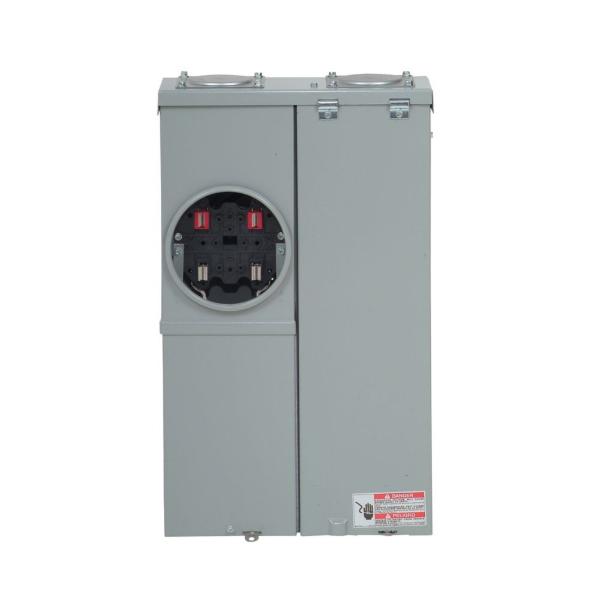

| K | MBE24L125BTS | 23 22/25" | 22 kAIC | Top/Bottom | 4 | #14 AWG to 2/0 AWG | - | A | - | €877.28 | |

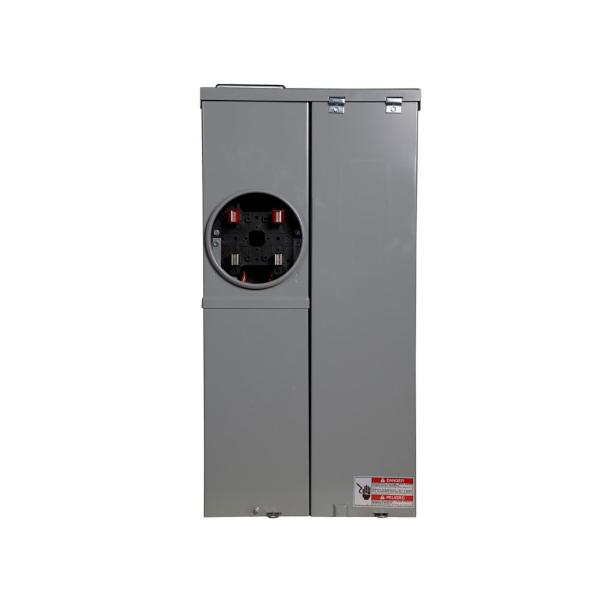

| L | MBER48B150BTS | 23.38" | 22 kAIC | Top/Bottom | 8 | - | CSR2150 | A | Units Come With Feed-Through Lugs. Units Include A Two-Pole Provision For Secondary Main 70A Max. Type BR, BRH, BRHH. | €5,142.43 | |
| M | MBE1224B125TS | 25" | 10 kAIC | Overhead | 24 | #14 AWG to 1/0 AWG | BR2125 | A | - | €2,673.97 | |
| N | MBE1224B100TS | 25" | 10 kAIC | Overhead | 24 | #14 AWG to 1/0 AWG | BR2100 | C | - | €1,680.51 | |
| F | MBE48B200BTF | 28.38" | 10 kAIC | Top/Bottom | 8 | #6 AWG to 250 kcmil | CSR2200 | A | - | €2,206.61 | |

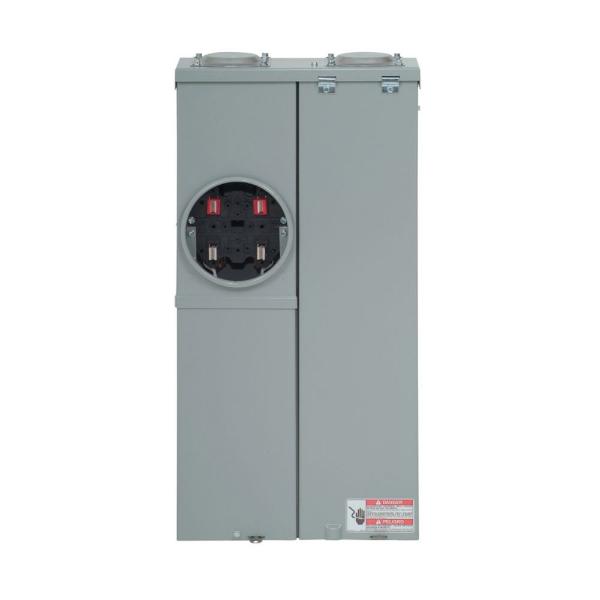

| O | MBEB200BTS | 28.38" | 10 kAIC | Top/Bottom | - | #6 AWG to 250 kcmil | CSR2200 | A | - | €2,078.90 | |
| A | MBEB200BTF | 28.38" | 10 kAIC | Top/Bottom | - | #6 AWG to 250 kcmil | CSR2200 | A | - | €2,158.08 | |
| P | MBER48B200BTS | 28.38" | 10 kAIC | Top/Bottom | 8 | #5 AWG to 250 kcmil | CSR2200 | A | - | €2,968.97 | |
| A | MBE24L200BTS | 28.38" | 10 kAIC | Top/Bottom | 4 | #6 AWG to 250 kcmil | - | A | - | €1,769.88 | |

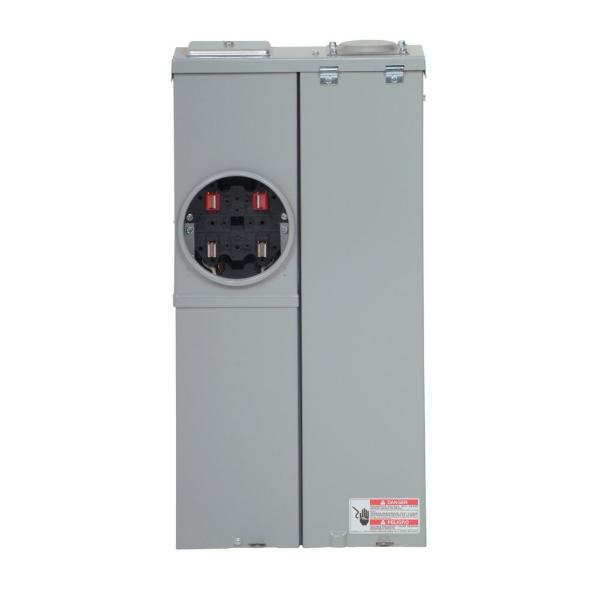

| Q | MBE48B150BTS | 28.38" | 22 kAIC | Top/Bottom | 8 | #6 AWG to 250 kcmil | CSR2150 | A | - | €2,206.61 | |
| A | MBE816P200TS | 32.38" | 10 kAIC | Overhead | 16 | #6 AWG to 350 kcmil | Provisions | C | Units Come With Feed-Through Lugs. Includes Factory-Mounted 2.50 In Hub On Bottom Endwall. UG Feed Only. | €3,766.13 | |
| R | MBE2040B200TF | 32.38" | 10 kAIC | Overhead | 40 | #6 AWG to 350 kcmil | CSR2200 | C | - | €5,053.39 | |

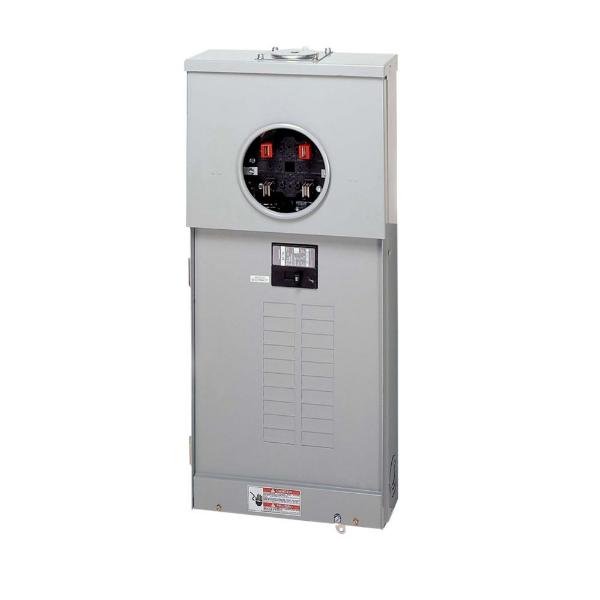

| S | MBE2040B200TS | 32.38" | 10 kAIC | Overhead | 40 | #6 AWG to 350 kcmil | CSR2200 | C | - | €5,053.39 | |
| T | MBE1428B125BF | 34.13" | 10 kAIC | Bottom | 28 | #14 AWG to 2/0 AWG | BR2125 | B | - | €2,976.61 | |
| U | MBE1428B100BS | 34.13" | 10 kAIC | Bottom | 28 | #14 AWG to 2/0 AWG | BR2100 | B | - | €1,680.51 | |
| V | MBE1428B100BF | 34.13" | 10 kAIC | Bottom | 28 | #14 AWG to 2/0 AWG | BR2100 | B | - | €1,563.01 | |

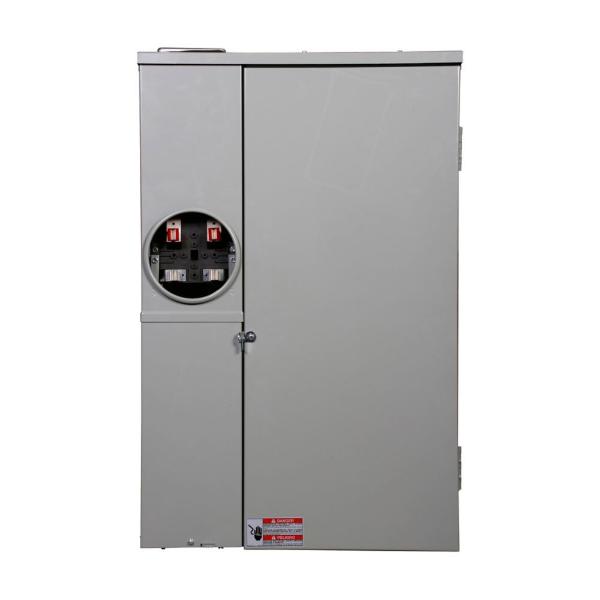

| W | MBE4040B200TS | 34.17" | 10 kAIC | Overhead | 40 | #6 AWG to 250 kcmil | CSR2200 | 12 | - | €6,990.12 | |
| A | MBE4040B200BSHH | 34.38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | 12 | - | €5,707.44 | |

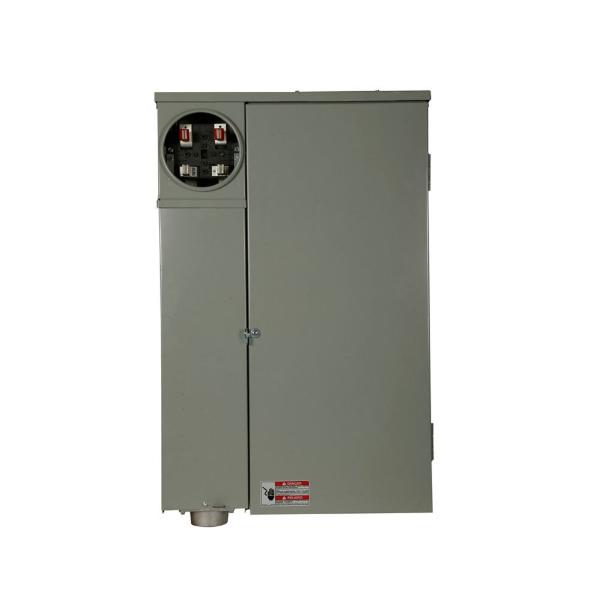

| X | MBE4040B200BSH | 34.38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | D | - | €4,924.00 | |

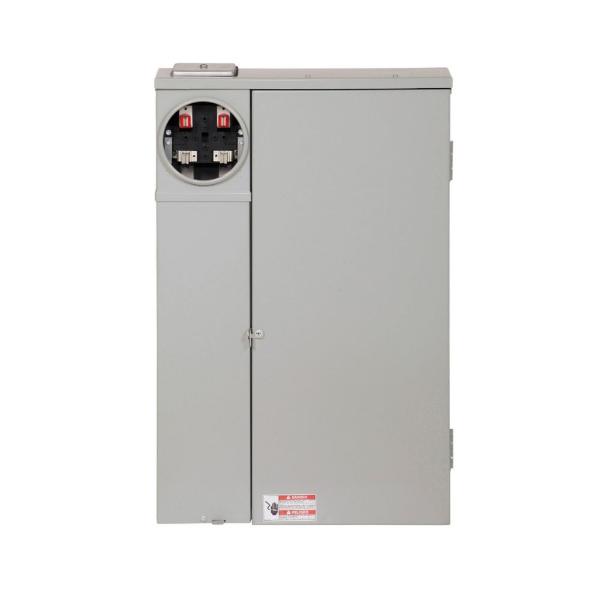

| Y | MBE4040B200BTS | 34.38" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | D | - | €4,773.32 | |
| A | MBE4040B200BTF | 34.38" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | D | - | €4,773.32 | |
| A | MBE2040B225BTS | 36.06" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2225 | A | - | €4,744.98 | |
| A | MBE2040B225BTF | 36.06" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2225 | A | - | €4,744.98 | |
| Z | MBE2040B200BTS | 36.06" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | A | - | €3,810.52 | |

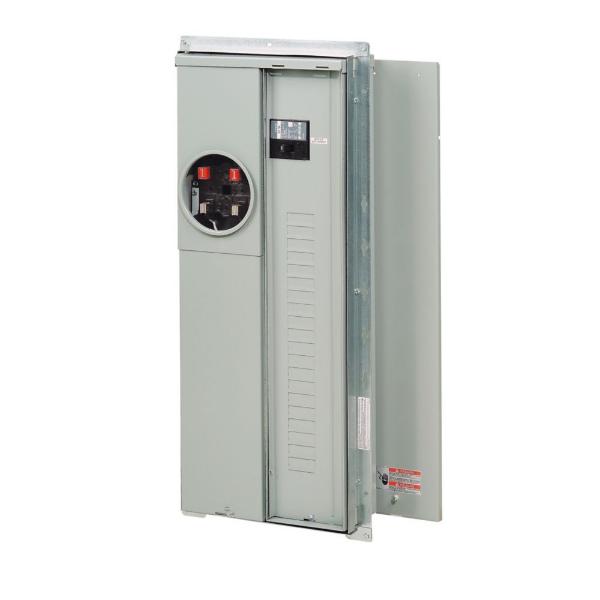

| A1 | MBE2040B200BTF | 36.06" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | A | - | €4,098.29 | |
| B1 | MBE1836B125BF | 36.13" | 10 kAIC | Bottom | 36 | #14 AWG to 2/0 AWG | BR2125 | B | - | €3,405.68 | |
| C1 | MBE2040B200BTSV | 36.19" | 10 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2201 | A | - | €5,883.76 | |

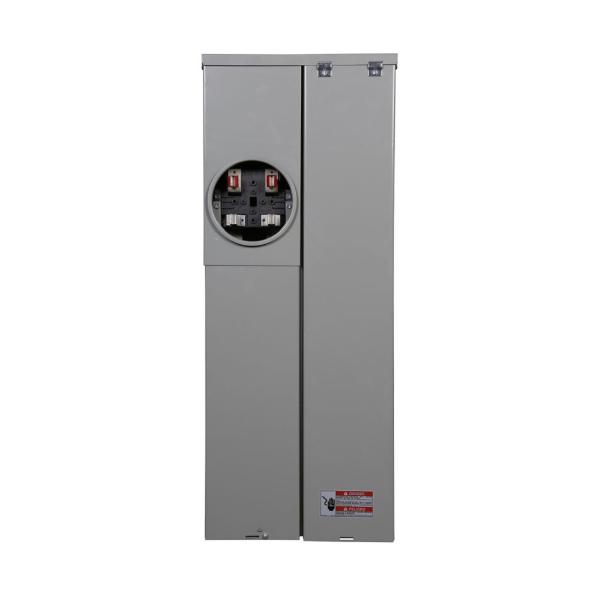

| D1 | MBE2040B150BTS | 37" | 22 kAIC | Top/Bottom | 40 | #6 AWG to 250 kcmil | CSR2150 | - | - | €4,748.90 | |

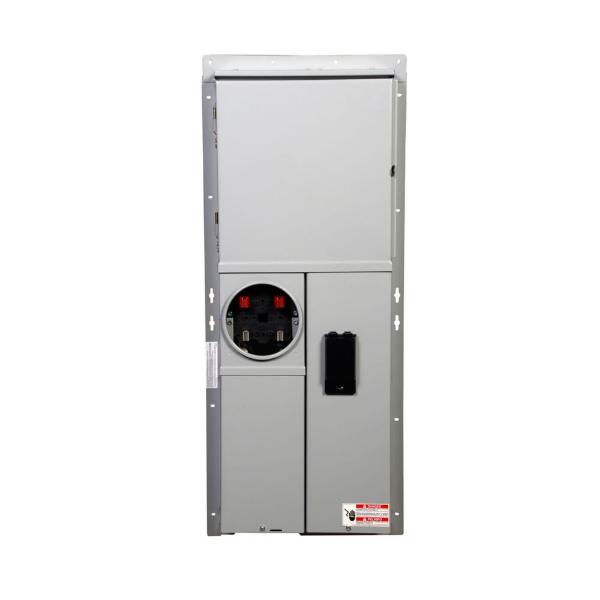

| E1 | MBED2040B225BF | 38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | BW2225 | - | - | €4,748.86 | |
| A | MBED1836B100BF | 38" | 10 kAIC | Bottom | 36 | #14 AWG to 2/0 AWG | BW2100 | - | - | €4,671.98 | |

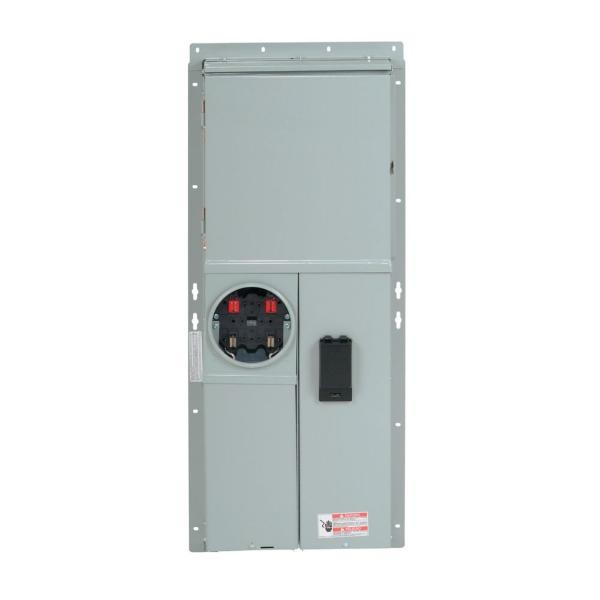

| F1 | MBED2040B200BF | 38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | BW2200 | - | - | €3,571.68 | |

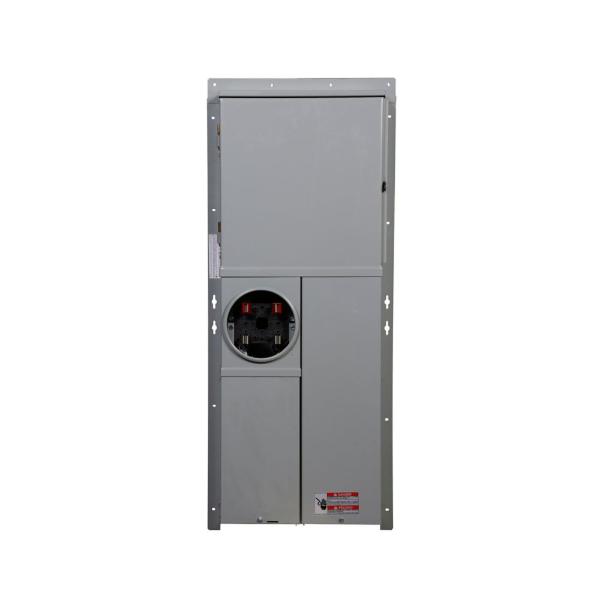

| G1 | MBED1836B125BF | 38" | 10 kAIC | Bottom | 36 | #14 AWG to 2/0 AWG | BW2125 | - | - | €4,491.39 | |

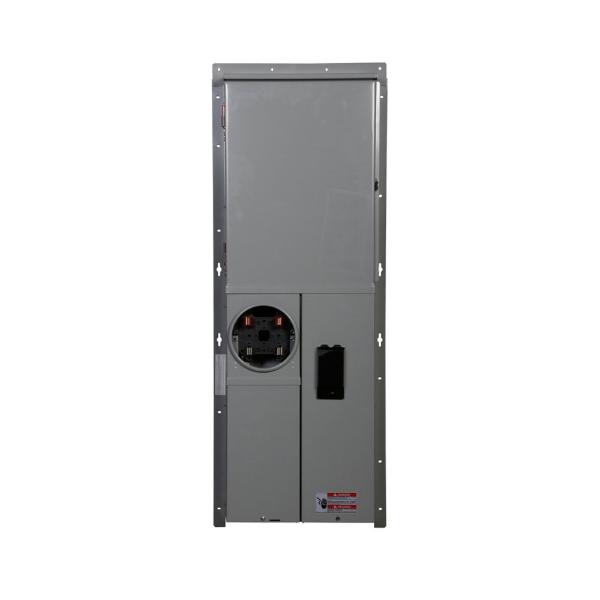

| H1 | MBED3042B225BF | 42 1/2" | 10 kAIC | Bottom | 42 | #6 AWG to 2/0 AWG | BW2225 | - | - | €4,821.66 | |

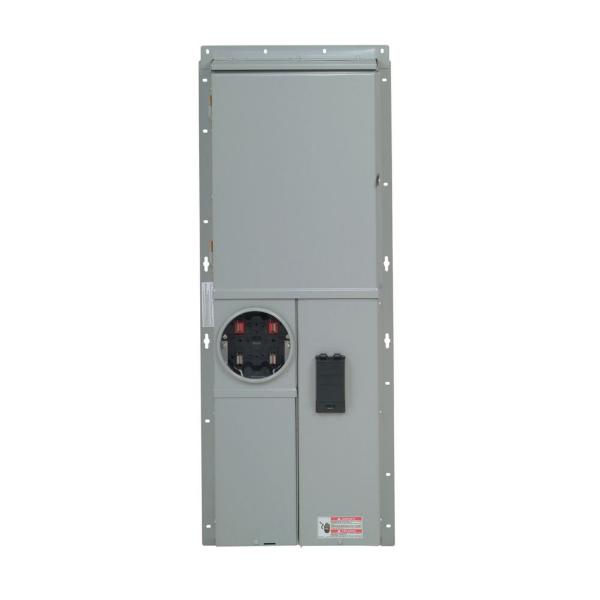

| I1 | MBED3042B200BF | 42 1/2" | 10 kAIC | Bottom | 42 | #6 AWG to 2/0 AWG | BW2200 | - | - | €4,489.10 | |
| A | MBED2040B200BFN | 42 1/2" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | BW2200 | - | - | €4,449.15 | |
| A | MBED3042B200BF6 | 42 1/2" | 10 kAIC | Bottom | - | - | - | - | - | - | RFQ
|
| A | MBED2040B225BFN | 42 1/2" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | BW2225 | - | Main Breaker Bus Connected To 20/40 Distribution. Main And Disconnect In Same Compartment. | - | RFQ
|
| E | MBE2040B200BF | 43.38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | B | - | €3,234.57 | |
| R | MBE2040B200BS | 43.38" | 10 kAIC | Bottom | 40 | #6 AWG to 250 kcmil | CSR2200 | B | - | €3,478.46 | |
| J1 | MBE3042B225BF | 46 22/25" | 10 kAIC | Bottom | 42 | #6 AWG to 250 kcmil | CSR2225 | B | - | €5,527.73 | |

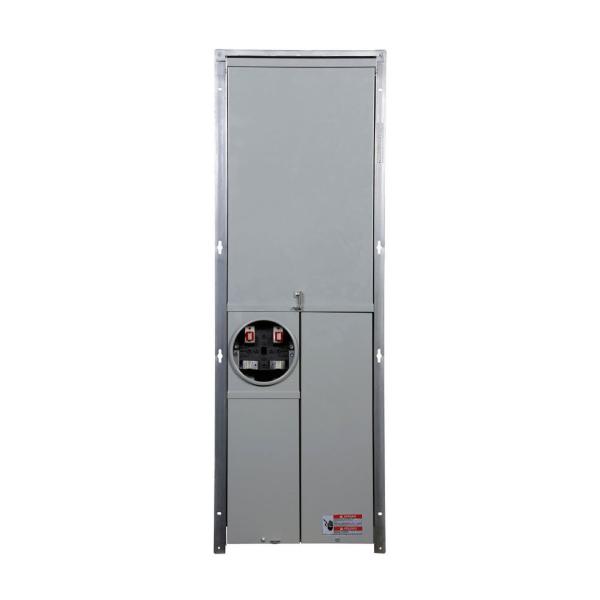

| J1 | MBE3042B200BF | 46 22/25" | 10 kAIC | Bottom | 42 | #6 AWG to 250 kcmil | CSR2200 | B | - | - | RFQ
|

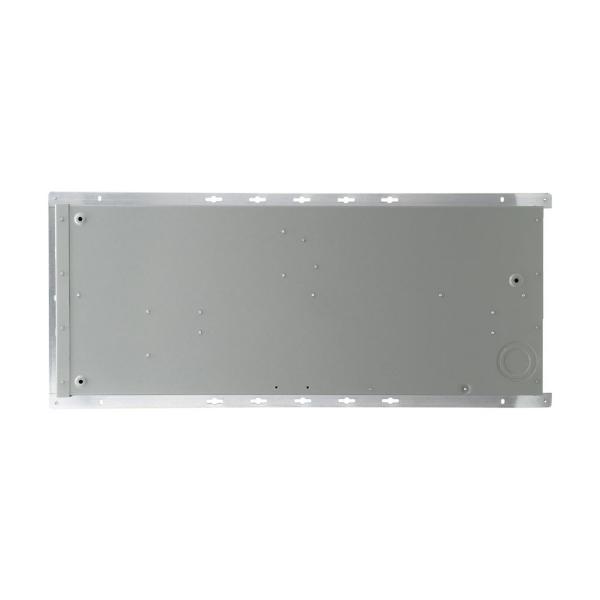

| K1 | MBE2040PV125BTF | 48" | 22 kAIC | - | 40 | - | - | - | - | €6,284.63 |
Working Mechanism
- Eaton BR type meter breakers interrupt the flow of electricity in the circuit if the current exceeds a certain level.
- When the breaker trips, it opens the circuit to stop the flow of electricity and protect the electrical system from damage due to overloading or short circuit conditions.
Standards and Approvals
- UL
- EUSERC
Frequently Asked Questions
What is the difference between a meter breaker and a main breaker?
A meter breaker is a circuit breaker that is installed in a meter socket or meter base, while the main breaker is installed in the main panel or main loadcenter.
How to choose the right meter breaker?
Determine the size of the breaker by estimating the electrical load of the circuit. Once you have the total wattage, use a wattage-to-amp conversion chart to determine the right size of the breaker.
How to calculate the total electric load in a circuit?
Add the wattage of all the devices and appliances connected to the circuit to get its total electric load.
