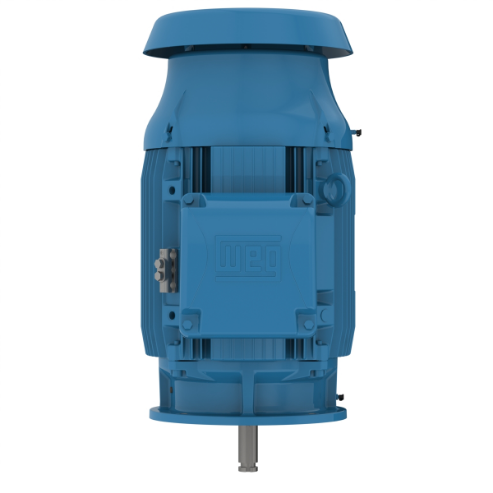

WEG 07536ET3E365HP-W22 13016769 Pump Motor, 75 HP, 3600 RPM, 208-230/460 V, 3 Phase, TEFC, 365HP Frame, Footed, Premium, P-Base
Get it by Tuesday, Feb 24
€12,574.94 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 18 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 90% |
| Efficiency At 50 % | 83% |
| Efficiency At 75 % | 88% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | P |
| Frame | 364/5HP |
| Frame Material | Cast Iron |
| Frame Size | 365HP |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 10 sec. |
| Hp | 75 hp |
| Impregnation Method | Constant Resin Flow |
| L. R. Amps | 1097/549A |
| Locked Rotor Torque | 200% |
| Lrc | 6.7X(Code G) |
| Main Terminal Box Hole Size | 3" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 11.9 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 3555 RPM |
| Mounting | Footless |
| No Load Amps | 40/20A |
| No. Of Poles | 2 |
| Noise Level | 79 dBA |
| Output | 75 hp |
| Output Rating | 75 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 93.6 |
| Power Factor At 50 % | 92.4 |
| Power Factor At 75 % | 93.6 |
| Rated Current | 164/81.9A |
| Rated Torque | 111 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.25% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 561.15 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Service Factor | Hp | Frequency | Motor Enclosure Design | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 01836ET3Y160LFF-W22 | 380-415/460V | 1.25 | 25 hp | 50 Hz | Totally Enclosed Fan Cooled | 29.9A | 3550 RPM | - | €5,367.05 | |
| 03736ET3Y200LFF-W22 | 380-415/460V | 1.25 | 50 hp | 60 Hz | Totally Enclosed Fan Cooled | 59.8A | 3570 RPM | - | €9,770.55 | |
| 05536ET3Y250S/MFF-W2 | 460V AC | 1.25 | 75 hp | 50/60 Hz | Totally Enclosed Fan Cooled | 80.3A | 3600 RPM | - | €16,526.29 | |
| 00156ET3H143TC-W22 | 575V AC | 1.25 | 1 1/2 hp | 60 Hz | Totally Enclosed Fan Cooled | 1.57A | 3480 RPM | Three Phase | €840.81 | |
| 00236ET3H145TC-W22 | 575V AC | 1.25 | 2 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.05A | 3475 RPM | Three Phase | €853.67 | |
| 00336ET3H182TC-W22 | 575V | 1 | 3 hp | 60 Hz | Totally Enclosed Fan Cooled | 2.9A | 3515 RPM | Three Phase | €1,055.20 | |
| 00536ET3H184TC-W22 | 575V AC | 1.25 | 5 hp | 60 Hz | Totally Enclosed Fan Cooled | 4.72A | 3485 RPM | Three Phase | €1,251.50 |
