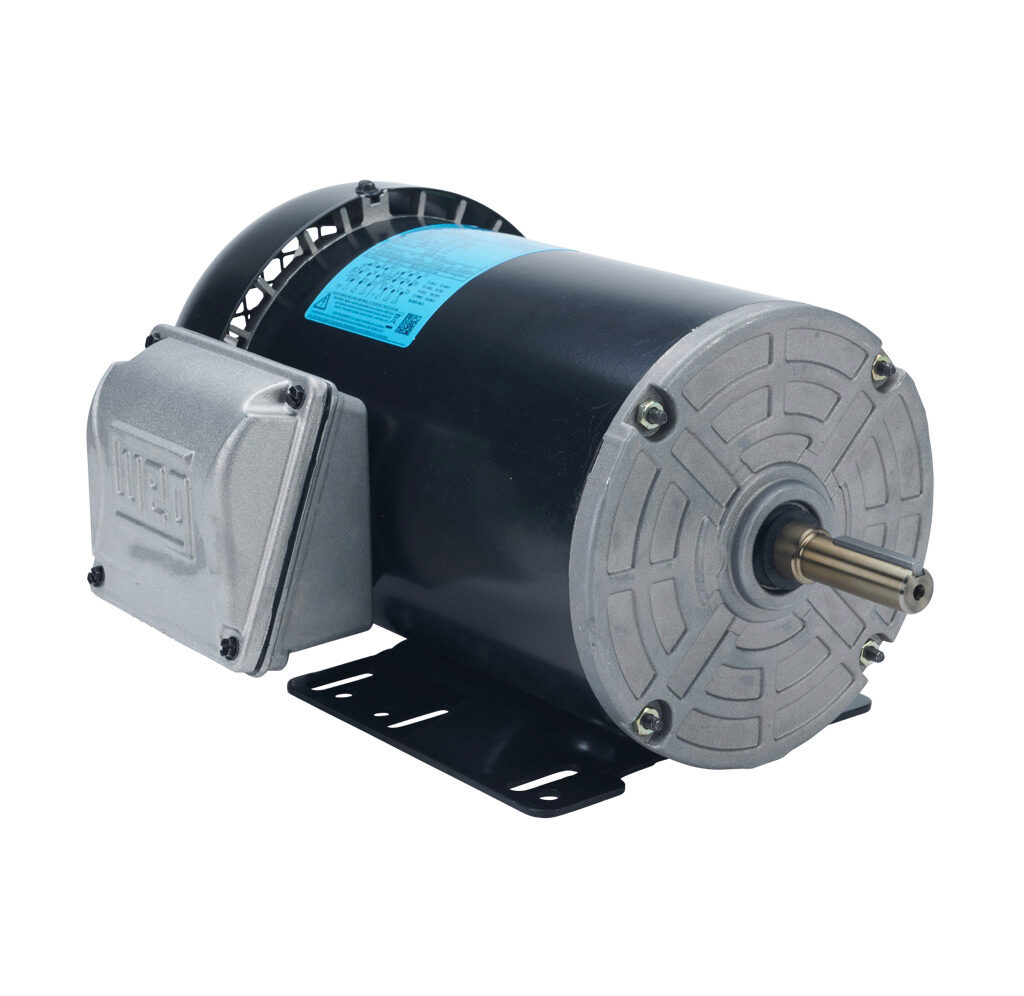

WEG 00218ET3E56-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BB8YVQ

WEG 00218ET3E56-S 14799100 General Purpose Motor, TEAO/TEFC RolLED Steel 56H Frame, 2 HP, 1435 RPM, 415 V

Item: BB8YVQModel: 00218ET3E56-SCross Ref: 14799100
Check Availability
In Stock

Get it by Friday, Apr 3

€781.20 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Balancing Method 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
Break-down Torque 300%
Breakdown Torque 300%
Cold Locked Rotor Time 27 sec.
Composition Steel
Connection Cables Quantity 9
Constant Torque Rating 5:1
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 86.5%
Efficiency @ 100% 86.5%
Efficiency @ 50% 85.5%
Efficiency @ 75% 87.5%
Efficiency At 1 % 80%
Efficiency At 50 % 60%
Efficiency At 75 % 73%
Efficiency Group Premium Efficiency
Electrically Reversible Yes
Enclosure IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange Without
Flange Type Without
Frame 56H
Frame Material Rolled Steel
Frame Size 56H
Frequency 50/60 Hz
Grounding Lugs Single
Hot Locked Rotor Time 15 sec.
Hp 2 hp
Hz 60 Hz
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
Integrated Brake No
Ip Rating IP55
L. R. Amps 44.6/22.3A
L.r. Amperes 22.3/44.6A
Locked Rotor Time (cold) 27 sec.
Locked Rotor Time (hot) 15 sec.
Locked Rotor Torque 270%
Lrc 8.2X(Code K)
Main Terminal Box Hole 0.881"
Main Terminal Box Hole Size 0.881"
Moment Of Inertia 0.1296 lbs.-sq. ft.
Moment Of Inertia (j) 0.1296 lbs.-sq. ft.
Motor Application General Purpose And Inverter Rated
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame 56H
Motor Speed 1745 RPM
Motor Type Induction
Mounting F-1 , Foot Mounted
Mounting Orientation Horizontal
Nameplate Rpm 1745 RPM
Nema Design Design B
No Load Amps 1.4/2.8A , 2.8/1.4A
No. Of Poles 4
Noise Level 52 dBA
Number Of Phases 3
Output 2 hp
Output Rating 2 hp
Overload Protection No
Overload Protector Without Overload Protector
Painting Only Primer
Phase 3
Power Factor 50% 0.6
Power Factor 75% 0.73
Power Factor At 1 % 86.5
Power Factor At 50 % 85.5
Power Factor At 75 % 87.5
Power Factor_100% 0.8
Product Datasheet weg-00218et3e56-s.pdf
Rated Current 2.72/5.44A , 5.44/2.72A
Rated Speed 1745 RPM
Rated Torque 6.02 lbs.-ft.
Rated Voltage 230/460V AC
Resilient Base Without
Rotation CW/CCW
Rpm 1700-1800 RPM
Screw Cap Carbon Steel
Series S Series
Service Factor 1.15
Shaft Diameter 5/8"
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Shaft Type Round With Square Key
Slip 3.06%
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Variable Torque Rating 1000:1
Voltage 190-220/230/380-415/460V , 230/460/190-220/380-415V AC
Voltage Rating 208-230/460V AC
Voltage Type AC

Shipping Info:

Ship weight (kg) 19.78
Ship height (cm)77.98
Ship length (cm)35.3
Ship width (cm)85.09
Country of OriginBR

Documentation:

Datasheet

Product Variants

ProductModelService FactorFrequencyMotor Enclosure DesignHpFull Load AmpsNameplate RpmMotor TypeMounting TypePrice
WEG 00158ET3W90L-W22 Metric Motor, Shielded 460v 60 Hz Cw / Ccw | AA2GCZ 10G858 00158ET3W90L-W22150 HzTotally Enclosed Fan Cooled2 hp2.8A1755 RPM-Rigid Base€914.46
WEG 00218ET3W100L-W22 Metric Motor, 460v 60 Hz Shielded Cw / Ccw | AA2GDF 10G864 00218ET3W100L-W22160 HzTotally Enclosed Fan Cooled3 hp4.1A1750 RPM-Rigid Base€1,095.12
WEG 00418ET3Y112M-W22 Metric Motor, 5-1/2Hp, 230/460v Cw / Ccw | AA2GDP 10G872 00418ET3Y112M-W22150 HzTotally Enclosed Fan Cooled5 1/2 hp7.3A1755 RPM-Rigid Base€1,177.86
WEG 00518ET3Y132S-W22 Metric Motor, 7-1/2Hp, 230/460v Cw / Ccw | AA2GDU 10G876 00518ET3Y132S-W22160 HzTotally Enclosed Fan Cooled7 1/2 hp9.1A1775 RPM-Rigid Base€1,613.01
WEG 00718ET3Y132M-W22 Metric Motor, 10Hp, 230/460v Cw / Ccw | AA2GEA 10G882 00718ET3Y132M-W22150 HzTotally Enclosed Fan Cooled10 hp12.2A1770 RPM-Rigid Base€1,918.09
WEG 01818ET3Y180MFF-W22 Metric Motor, 25Hp, 230/460V, Cw / Ccw | AA2GEM 10G893 01818ET3Y180MFF-W221.2550/60 HzTotally Enclosed Fan Cooled25 hp30.6A1775 RPM-Face/Base€4,486.20
WEG 02218ET3Y180LFF-W22 Metric Motor, 30Hp, 230/460v Cw / Ccw | AA2GET 10G898 02218ET3Y180LFF-W221.2550/60 HzTotally Enclosed Fan Cooled30 hp36A1775 RPM-Face/Base€5,926.53
