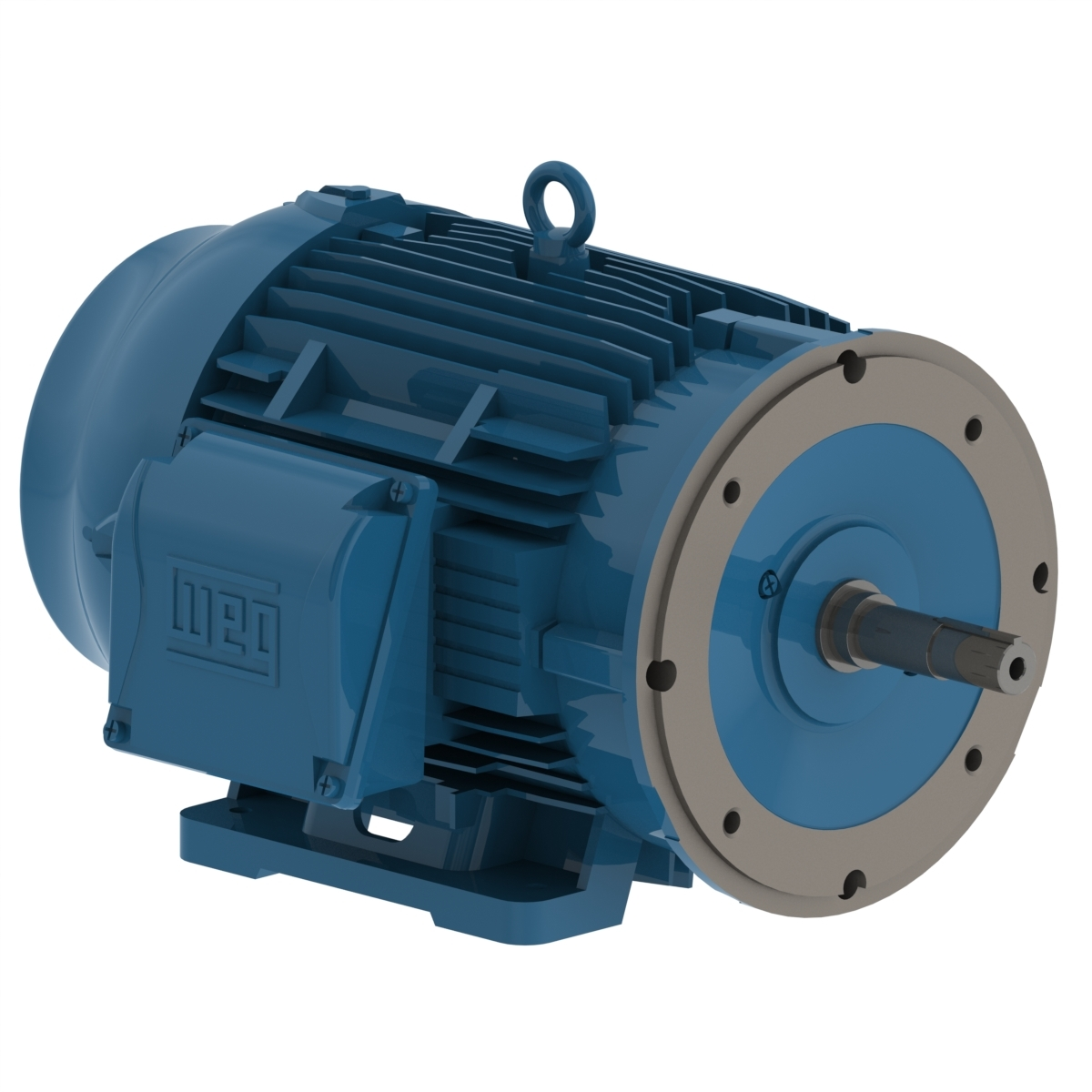

WEG 03036ET3H286JM-W22 Electric Motor, 30Hp, 60Hz, 3600 Rpm | BB9BXD

WEG 03036ET3H286JM-W22 12712156 Pump Motor, 30 HP, 3600 RPM, 575V, TEFC, 286JM, Footed, Close CoupLED Pump

Item: BB9BXDModel: 03036ET3H286JM-W22Cross Ref: 12712156
Check Availability
In Stock

Get it by Tuesday, Aug 25

€5,247.20 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 m.a.s.l.
Ambient Temp. -20°C to +40°C
Amps 27.4A
Balancing Method 1/2 Key
Bearing Cap Yes
Cold Locked Rotor Time 27 sec.
Composition Cast Iron
Connection Cables Quantity 6
De Bearing Seal V Ring
Degree Of Protection IP55
Design B
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle Cont.(S1)
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Cast Iron
Fan Material Plastic
Flange C
Frame 286JM
Frame Material Cast Iron
Frame Size 286JM
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Type Single
Hp 30 hp
Impregnation Method Dip And Bake Polyester
Insulation Class F
Locked Rotor Time(hot) 15 sec.
Lrc 6.3x(Code G)
Main Terminal Box Hole Type NPT
Material Carbon Steel
Mounting Foot-Mounted, F-1
Nde Bearing Seal V Ring
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 3
Product Datasheet weg-03036et3h286jm-w22.pdf
Pump Seal Mechanical Seal
Regreasing System At Drive End And Non-Drive End
Rotation CW And CCW
Shaft Material SAE 1040/45 Carbon Steel
Speed 3400-3600 RPM
Starting Method Direct On Line
Synchronous Speed 3600 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Tropicalized Painting Without
Voltage 575V

Shipping Info:

Ship weight (kg) 201.15
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Documentation:

Datasheet

Product Variants

ProductModelVoltageFrequencyHpService FactorMotor Enclosure DesignFull Load AmpsMotor TypeMounting TypePrice
WEG 01836ET3Y160LFF-W22 Metric Motor, 25Hp, 230/460v Cw / Ccw | AA2GEN 10G894 01836ET3Y160LFF-W22460V50 Hz25 hp1.25Totally Enclosed Fan Cooled29.9A-Face, Base€5,367.05
WEG 03736ET3Y200LFF-W22 Metric Motor, 50Hp, 230/460v Cw / Ccw | AA2GEY 10G904 03736ET3Y200LFF-W22460V60 Hz50 hp1.25Totally Enclosed Fan Cooled59.8A-Face, Base€9,770.55
WEG 05536ET3Y250S/MFF-W2 Metric Motor, 75Hp, 230/460V, Cw / Ccw | AA2GFD 10G909 05536ET3Y250S/MFF-W2460V AC50/60 Hz75 hp1.25Totally Enclosed Fan Cooled80.3A-Face, Base€16,526.29
WEG 00156ET3H143TC-W22 General Purpose Motor, 3-phase Tefc 1-1/2 Hp, 3495 Rpm 143tc | AA4JCX 12N885 00156ET3H143TC-W22575V AC60 Hz1 1/2 hp1.25Totally Enclosed Fan Cooled1.57AThree PhaseRigid Base€840.81
WEG 00236ET3H145TC-W22 General Purpose Motor, 3-phase Tefc 2 Hp, 3490 Rpm 145tc | AA4JCZ 12N887 00236ET3H145TC-W22575V AC60 Hz2 hp1.25Totally Enclosed Fan Cooled2.05AThree PhaseRigid Base€853.67
WEG 00336ET3H182TC-W22 General Purpose Motor, 3-phase Tefc 3 Hp, 3510 Rpm 182tc | AA4JDB 12N889 00336ET3H182TC-W22575V60 Hz3 hp1Totally Enclosed Fan Cooled2.9AThree PhaseRigid Base€1,055.20
WEG 00536ET3H184TC-W22 General Purpose Motor, 3-phase Tefc 5 Hp, 3510 Rpm 184t | AA4JDD 12N891 00536ET3H184TC-W22575V AC60 Hz5 hp1.25Totally Enclosed Fan Cooled4.72AThree PhaseRigid Base€1,251.50
