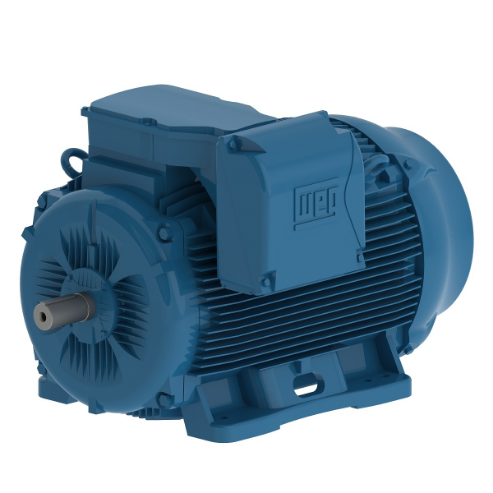

WEG 09009ET3Y315S/M-W22 13034286 General Purpose Motor, Cast Iron 315S/M Frame, 125 HP, 894 RPM, 460 V
Get it by Wednesday, Feb 25
€24,386.93 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 260% |
| Cold Locked Rotor Time | 99 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 78% |
| Efficiency At 50 % | 61% |
| Efficiency At 75 % | 73% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 315S/M |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 55 sec. |
| Hp | 125 hp |
| Hz | 50/60 Hz |
| Impregnation Method | Constant Resin Flow |
| L. R. Amps | 1071A |
| Locked Rotor Torque | 220% |
| Lrc | 7 |
| Main Terminal Box Hole Size | M63 x 1.5 |
| Moment Of Inertia | 114 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 894 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 70.9A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 8 |
| Noise Level | 66 dBA |
| Output | 125 hp |
| Output Rating | 125 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 94.5 |
| Power Factor At 50 % | 93.5 |
| Power Factor At 75 % | 94 |
| Rated Current | 153A |
| Rated Torque | 734 lbs.-ft. |
| Rated Voltage | 460V AC |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 900 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 0.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Tropicalized Painting | Without |
| Voltage | 460/380-415V AC |
Shipping Info:
| Ship weight (kg) | 1297.8 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 76.71 |
| Ship width (cm) | 57.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 875 RPM | 875 RPM | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 865 RPM | 860 RPM | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 875 RPM | 870 RPM | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 870 RPM | 865 RPM | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 882 RPM | 880 RPM | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | - | 1 | 15 hp | 19.5/38.9-43A | - | 850 RPM | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V | - | - | 1 | 10 hp | 13.9/27.8-30.7A | - | 830 RPM | - | RFQ
|
