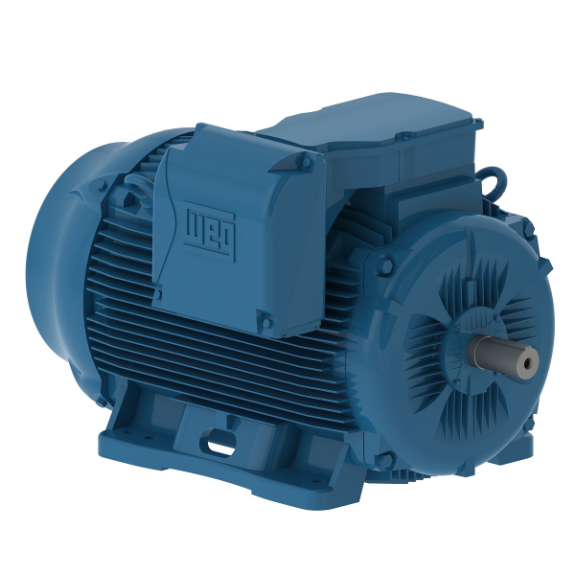

WEG 20012ET3G447TS-W22 13711787 General Purpose Motor, TEFC Cast Iron 445/7TS Frame, 200 HP, 980 RPM, 415 V
1200 rpm
200 hp
447TS
Get it by Tuesday, Aug 25
€28,791.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 m.a.s.l. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 237A , 265A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 240% |
| Cold Locked Rotor Time | 18 sec. , 27 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) , Continuous |
| Efficiency 50% | 68% |
| Efficiency @ 1 % | 83% |
| Efficiency @ 75 % | 79% |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 445/7TS |
| Frame Material | Cast Iron |
| Frame Size | 447Ts |
| Frequency | 50 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 200 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | F |
| L. R. Amps | 1493A , 1588A |
| Locked Rotor Time(hot) | 10 sec. |
| Locked Rotor Torque | 229% |
| Lrc | 6.3X(Code G) , 6x(Code G) |
| Main Terminal Box Hole | 2 x NPT 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 145 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1185 RPM |
| Mounting | Foot Mounted , Foot-Mounted, F-1 |
| Nde Bearing Seal | Yes |
| No Load Amps | 100A , 111A |
| No. Of Holes | 2 |
| No. Of Poles | 6 |
| Noise Level | 69 dBA |
| Output | 200 hp |
| Output Rating | 200 hp |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 95.8 |
| Power Factor @ 50 % | 95 |
| Power Factor @ 75 % | 95.4 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW And CCW , CW, CCW |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 4140 Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 1.25% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 105 K , 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 886 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 415V , 460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 1110.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 60 Hz | 1.25 | 1" | Totally Enclosed Fan Cooled | 3.5/1.7A | Rigid Base | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 60 Hz | 1.25 | 1 1/2 hp | - | 5.08/2.54A | Rigid Base | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 60 Hz | 1.25 | 2 hp | Totally Enclosed Fan Cooled | 6.44/3.22A | Rigid Base | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 60 Hz | 1.25 | 3 hp | Totally Enclosed Fan Cooled | 8.8/4.4A | Rigid Base | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 60 Hz | 1.25 | 5 hp | Totally Enclosed Fan Cooled | 13.7/6.83A | Rigid Base | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 60 Hz | 1.25 | 7 1/2 hp | Totally Enclosed Fan Cooled | 19/9.48A | Rigid Base | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 60 Hz | 1.25 | 10 hp | Totally Enclosed Fan Cooled | 26.6/13.3A | Rigid Base | Three Phase | €3,044.25 |
