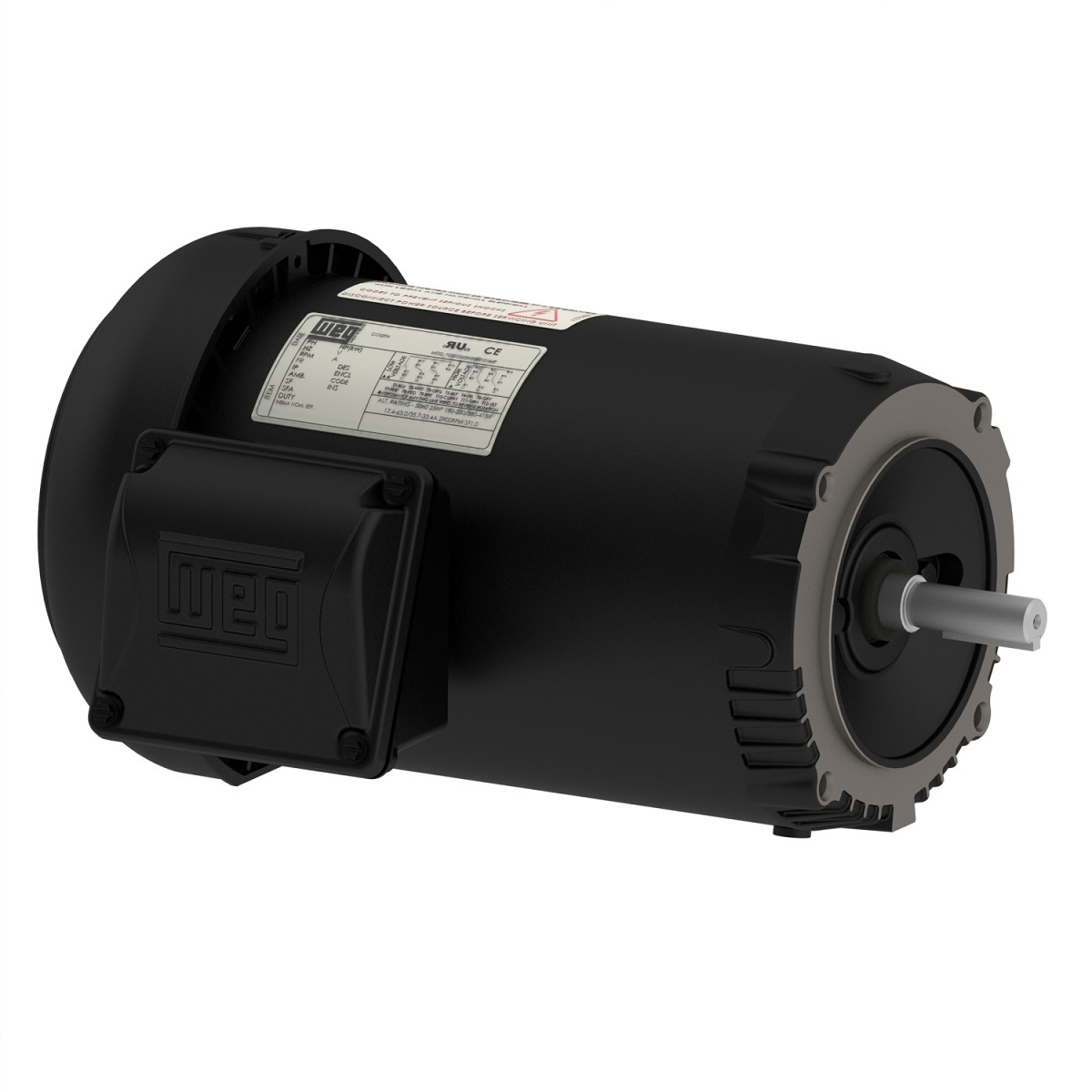

WEG 00158ET3ESB145TCZ1-S 14814640 General Purpose Motor, TEAO/TEFC Rolled Steel 143/5TCZ Frame, 1.5 HP, 1435 RPM, 220/415 V
1800 rpm
1.5 hp
145TCZ1
Get it by Friday, Aug 28
€1,776.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +65°C |
| Amps | 2.41/4.82A , 4.82/2.41A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 250% , 400% |
| Cold Locked Rotor Time | 0 sec. , 27 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 67% , 84.7% |
| Efficiency 75% | 84.7% |
| Efficiency @ 1 % | 84% |
| Efficiency @ 100% | 82.7% |
| Efficiency @ 75 % | 78% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Polymer , Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TCZ |
| Frame Material | Rolled Steel |
| Frequency | 50 Hz , 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class H |
| L. R. Amps | 14.7/29.4A , 29.4/14.7A |
| Locked Rotor Time(hot) | 0 sec. |
| Locked Rotor Torque | 210% , 350% |
| Lrc | 7.2x(Code J) , 8.2X(Code L) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1092 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.1092 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1745 RPM |
| Mounting | F-1 , Footless |
| Nde Bearing Seal | No |
| No Load Amps | 1.07/2.13A , 2.13/1.07A |
| No. Of Poles | 4 |
| Noise Level | 49 dBA , 52 dBA |
| Output | 1 1/2 hp |
| Output Rating | 1 1/2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) , Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.84 |
| Power Factor 50% | 0.67 |
| Power Factor 75% | 0.78 |
| Power Factor @ 1 % | 87.5 |
| Power Factor @ 50 % | 85.5 |
| Power Factor @ 75 % | 86.5 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.06% , 5.33% |
| Speed | 1420 RPM , 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 55 K , 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 5.55 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190/380V , 208-230/460/190-220/380-415V , 208-230/460/190-220/380-415V AC , 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
