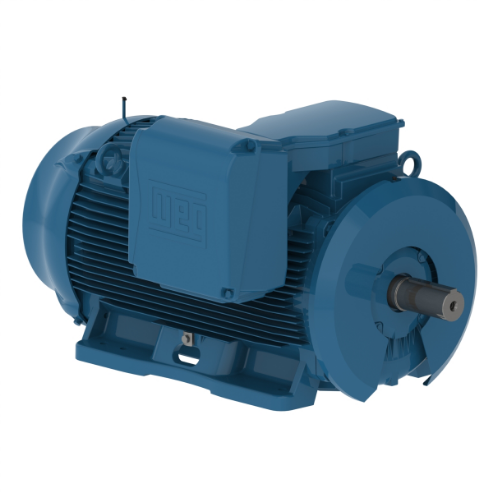

WEG 40012ET3H449T-W22 12686919 General Purpose Motor, TEFC Cast Iron L447/9T Frame, 400 HP, 1190 RPM, 575 V
Get it by Tuesday, Feb 24
€59,921.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 23 sec. |
| Connection Cables Quantity | 6 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 82% |
| Efficiency At 50 % | 68% |
| Efficiency At 75 % | 78% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange Type | Without |
| Frame | L447/9T |
| Frame Material | Cast Iron |
| Frame Size | 449T |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 13 sec. |
| Impregnation Method | Constant Resin Flow |
| L. R. Amps | 2633A |
| Locked Rotor Torque | 240% |
| Lrc | 6.9X(Code H) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 278 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1190 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 160A |
| No. Of Holes | 2 |
| No. Of Poles | 6 |
| Noise Level | 71 dBA |
| Output | 400 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 95.8 |
| Power Factor At 50 % | 95.4 |
| Power Factor At 75 % | 95.8 |
| Rated Current | 382A |
| Rated Torque | 1770 lbs.-ft. |
| Rated Voltage | 575V AC |
| Regreasing System | Extended, At Drive End And Non Drive End |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.83% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 1680.3 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | US |
Product Variants
| Model | Voltage | Service Factor | Frequency | Motor Enclosure Design | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00112ET3E145T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 1" | 3.5/1.7A | 1160 RPM | Three Phase | €758.54 | |
| 00152ET3E182T-W22 | 230/460/380V | 1.25 | 60 Hz | - | 1 1/2 hp | 5.08/2.54A | 1170 RPM | Three Phase | €914.23 | |
| 00212ET3E184T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 2 hp | 6.44/3.22A | 1170 RPM | Three Phase | €988.08 | |
| 00312ET3E213T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 3 hp | 8.8/4.4A | 1175 RPM | Three Phase | €1,525.74 | |
| 00512ET3E215T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 5 hp | 13.7/6.83A | 1170 RPM | Three Phase | €1,801.89 | |
| 00712ET3E254T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 7 1/2 hp | 19/9.48A | 1175 RPM | Three Phase | €2,634.64 | |
| 01012ET3E256T-W22 | 230/460/380V | 1.25 | 60 Hz | Totally Enclosed Fan Cooled | 10 hp | 26.6/13.3A | 1175 RPM | Three Phase | €3,044.25 |
