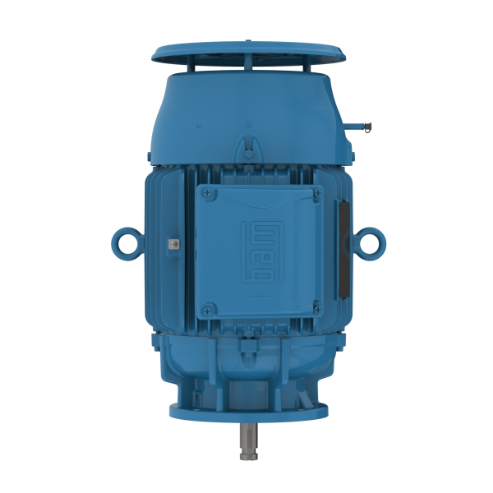

WEG 03018ET3E286HP-W22 13016593 Pump Motor, 30 HP, 1800 RPM, 208-230/460 V, 3 Phase, TEFC, 286HP Frame, Footed, Premium, P-Base
1800 rpm
30 hp
286HP
Get it by Tuesday, Jul 7
€4,585.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 70.2/35.1A |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 240% |
| Cold Locked Rotor Time | 36 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | With |
| Duty Cycle | Continuous |
| Efficiency 50% | 70% |
| Efficiency @ 1 % | 84% |
| Efficiency @ 75 % | 80% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | P |
| Frame | 286HP |
| Frame Material | Cast Iron |
| Frame Size | 286HP |
| Frequency | 50/60 Hz , 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 20 sec. |
| Hp | 30 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 428/214A |
| Locked Rotor Torque | 240% |
| Lrc | 6.1X(Code G) |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 5.85 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1770 RPM |
| Mounting | Footless |
| No Load Amps | 24.6/12.3A |
| No. Of Poles | 4 |
| Noise Level | 63 dBA |
| Output | 30 hp |
| Output Rating | 30 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor @ 1 % | 93.6 |
| Power Factor @ 50 % | 93 |
| Power Factor @ 75 % | 93 |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | CW, CCW |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Speed | 1700-1800 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 89 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 230/460V , 230/460V AC |
Shipping Info:
| Ship weight (kg) | 261.9 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
Product Variants
| Model | Frequency | Service Factor | Hp | Motor Enclosure Design | Full Load Amps | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 60 Hz | 1 | 2 hp | Totally Enclosed Fan Cooled | 2.8A | - | Rigid Base | 90L | €914.46 | |
| 00218ET3W100L-W22 | 60 Hz | 1 | 3 hp | Totally Enclosed Fan Cooled | 4.1A | - | Rigid Base | 100L | €1,095.12 | |
| 00418ET3Y112M-W22 | 60 Hz | 1 | 5 1/2 hp | Totally Enclosed Fan Cooled | 7.3A | - | Rigid Base | 112M | €1,177.86 | |
| 00518ET3Y132S-W22 | 60 Hz | 1 | 7 1/2 hp | Totally Enclosed Fan Cooled | 9.1A | - | Rigid Base | 132S | €1,613.01 | |
| 00718ET3Y132M-W22 | 60 Hz | 1 | 10 hp | Totally Enclosed Fan Cooled | 12.2A | - | Rigid Base | 132M | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 50/60 Hz | 1.25 | 25 hp | Totally Enclosed Fan Cooled | 30.6A | - | Face, Base | 180M | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 50/60 Hz | 1.25 | 30 hp | Totally Enclosed Fan Cooled | 36A | - | Face, Base | 180L | €5,926.53 |
