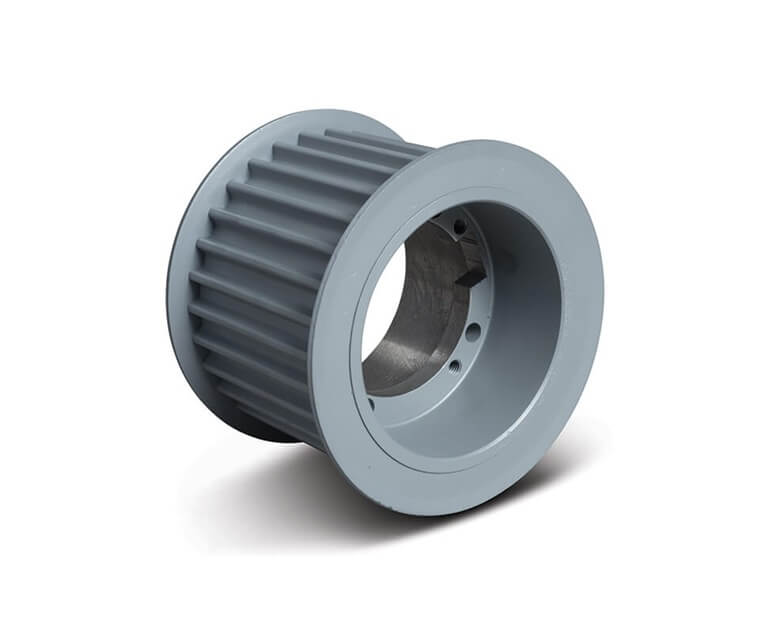

TB WOODS P2914M85 Synchronous Plus Belt Sprocket, Ductile Iron, 85mm Belt Width, 5.088 inch Pitch Dia.
29
Get it by Monday, Aug 24
€331.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 85 mm |
| Bushing | SFL |
| Construction | Plain |
| Dimension L | 1.13" |
| Dimensions E | 2.03" |
| Dimensions L | 1.13" |
| Dimensions M | 1.97" |
| Face Width | 4" |
| Hub Length | 1.59" |
| Inside Dia. | 3 1/4" |
| Material | Ductile Iron |
| Max. Speed | 7670 RPM |
| No. Of Teeth | 29 |
| Outside Dia. | 4.98" |
| Pitch Dia. | 5.088" |
| Rpm High | 7670 RPM |
| Rpm High | 7,670 rpm |
Shipping Info:
| Ship weight (kg) | 7.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 12.65 |
| Ship width (cm) | 12.65 |
Product Variants
| Product | Model | Material | No. Of Teeth | Pitch Dia. | Belt Width | Pitch Length | Rpm High | Tooth Profile | Bushing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
315014M85 | Neoprene | 225 | - | 85 mm | 3150 mm | - | - | - | €1,060.72 | |
 |
P2814M40 | Cast Iron | 28 | 4.912" | - | - | 5210 RPM | - | - | €234.31 | |
|
P2814M55 | Cast Iron | 28 | 4.912" | 55 mm | - | 5210 RPM | - | SK R | €275.67 | |
|
P2914M40 | Cast Iron | - | 5.088" | 40 mm | - | 5030 RPM | - | SK R | €278.68 | |
|
P2914M55 | Cast Iron | 29 | 5.088" | 55 mm | - | 5030 RPM | - | SK R | €311.08 | |
 |
P3014M40 | Cast Iron | 30 | 5.263" | 40 mm | - | 4860 RPM | - | SK | €256.36 | |
|
P3014M55 | Cast Iron | 30 | 5.263" | 55 mm | - | 4860 RPM | - | SK | €297.71 |
