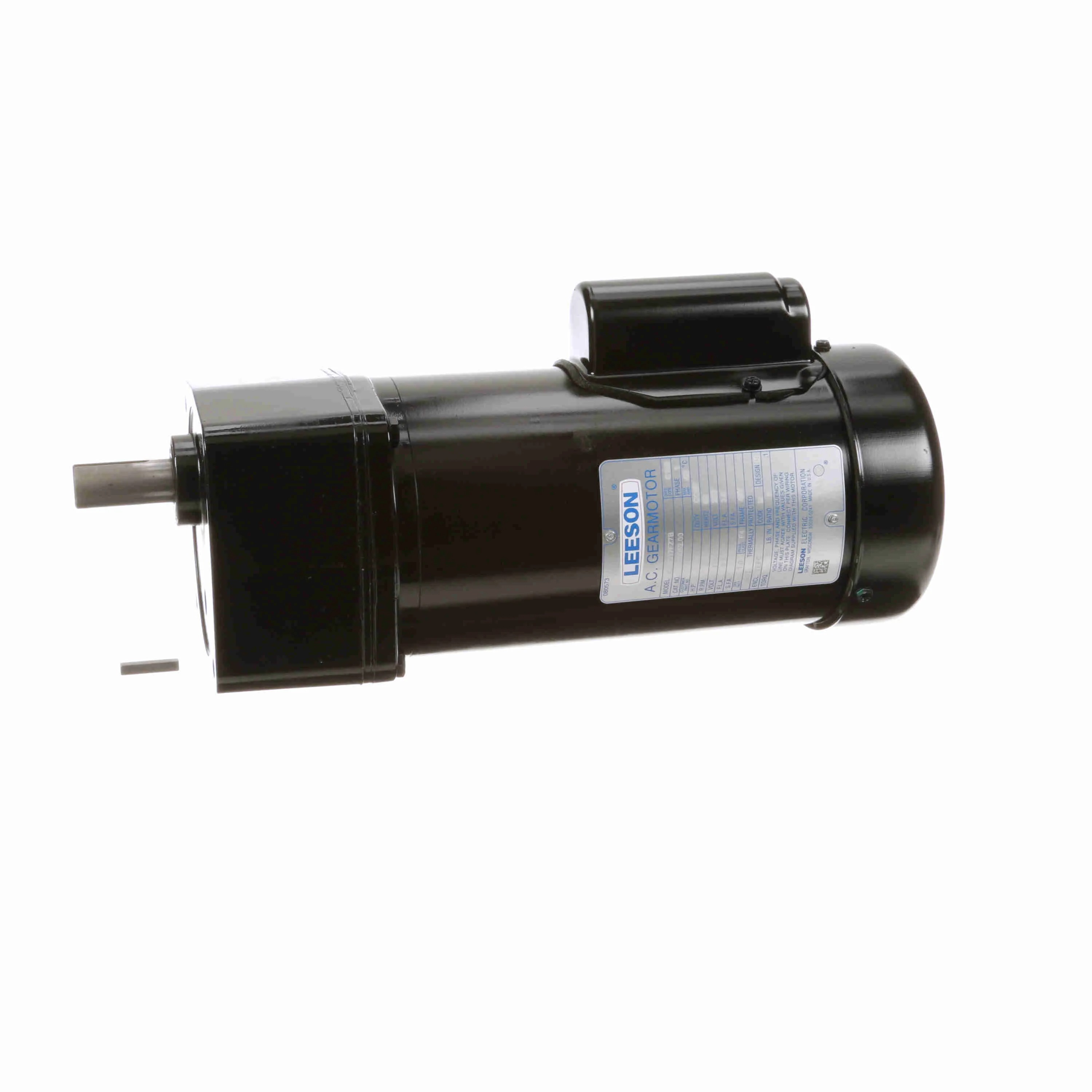

LEESON 096052.00 C42C17FZ7 AC Gearmotor | AJ2PEZ C42C17FZ7

LEESON 096052.00 C42C17FZ7B Parallel Shaft Gearmotor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 345 RPM

Item: AJ2PEZModel: 096052.00Cross Ref: 794AL4 / C42C17FZ7B
Check Availability
In Stock

Get it by Tuesday, Aug 18

€929.03 /unit
This product can only be shipped in multiples of 10
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item AC Gearmotor
Bearing Type Needle
Brake Type None
Capacitor Required Yes
Code M
Design No
Duty Rating Continuous
Enclosure Type Tefc
Frame 42Y
Frequency 60 Hz
Full Load Amps 7.2/3.6A
Gear Ratio 5:1
Housing Material Die Cast Aluminum
Hp 33/100 hp
Included Conduit Box
Included Capacitor Capacitor Included
Included Junction/conduit Box Yes
Input Hp 0.33 hp
Insulation Class Class F4
Keyway Depth 3/16"
Keyway Length 1"
Keyway Type Square
Keyway Width 1"
Length Less Shaft 12.57"
Lubrication Heavy Duty Gear Oil
Max. Ambient Temp. 104°F , 40°C
Max. Output Speed 345 RPM
Max. Torque 55 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Fan Cooled
Motor Frame Designation 42Y
Motor Insulation Class Class F
Motor Type Capacitor Start
Mounting Special
Mounting Orientation Horizontal, Vertical With Shaft Down
Mounting Type Horizontal Or Vertical Shaft Down
Nameplate Speed 345 RPM
No. Of Output Shafts 1
Operating Voltage 115/230V AC
Output Shaft Dia. 3/4"
Output Shaft Length 1 5/8"
Overall Length 14.57"
Overall Width 6.96"
Overhung Load Capacity 300 lbs.-ft.
Packaging B
Phase 1
Product Datasheet leeson-096052-00.pdf
Rotation CW, CCW
Seal Type Heavy Duty Industrial
Series PE350
Service Factor 1
Shaft Dia. 3/4"
Shaft Orientation Parallel
Shaft Type Parallel
Speed 345 RPM
Starting Torque 55 lbs.-in.
Thermal Protection None
Type TF
Voltage 115/230V

Shipping Info:

Ship weight (kg) 13.5
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • HPKW: .33
    • Nameplate: 080573
    • Overrlung Ld.: 300
    • Winding: C4747
    • GROUP: 3 C
    • Paint: M1305027.01

Documentation:

Datasheet

Product Variants

ProductModelPhaseFull Load AmpsFrequencyVoltageMountingOverhung Load CapacityNameplate SpeedOutput Shaft Dia.Price
LEESON M1145122.00 Ac Gearmotor 16 Rpm Tefc 208-230v | AE9BTF 6HHE4 / CM38T17FZ12 M1145122.0030.72A50/60 Hz190VAll Position Except Shaft Up237 lbs.-ft.16 RPM5/8"€1,366.90
LEESON 096065.00 Ac Gearmotor 9 Rpm Tefc 208-230/460v | AE9BTL 6HHE9 / C42T17FZ34A 096065.0031/0.5A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.9 RPM3/4"€1,297.11
LEESON 096066.00 Ac Gearmotor 29 Rpm Tefc 208-230/460v | AE9BTM 6HHF0 / C42T17FZ29 096066.0031.2/0.6A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.29 RPM3/4"€936.95
LEESON 096067.00 Ac Gearmotor 58 Rpm Tefc 208-230/460v | AE9BTN 6HHF1 / C42T17FZ30A 096067.0031.2/0.6A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.58 RPM3/4"€936.95
LEESON 096068.00 Ac Gearmotor 85 Rpm Tefc 208-230/460v | AE9BTP 6HHF2 / C42T17FZ31A 096068.0031.2/0.6A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.85 RPM3/4"€1,137.02
LEESON 096069.00 Ac Gearmotor 173 Rpm Tefc 208-230/460v | AE9BTQ 6HHF3 / C42T17FZ32 096069.0031.2/0.6A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.173 RPM3/4"€1,240.08
LEESON 096070.00 Ac Gearmotor 345 Rpm Tefc 208-230/460v | AE9BTR 6HHF4 / C42T17FZ33 096070.0031.2/0.6A60 Hz208-230/460VAll Position Except Shaft Up327 lbs.-ft.345 RPM3/4"€926.85
