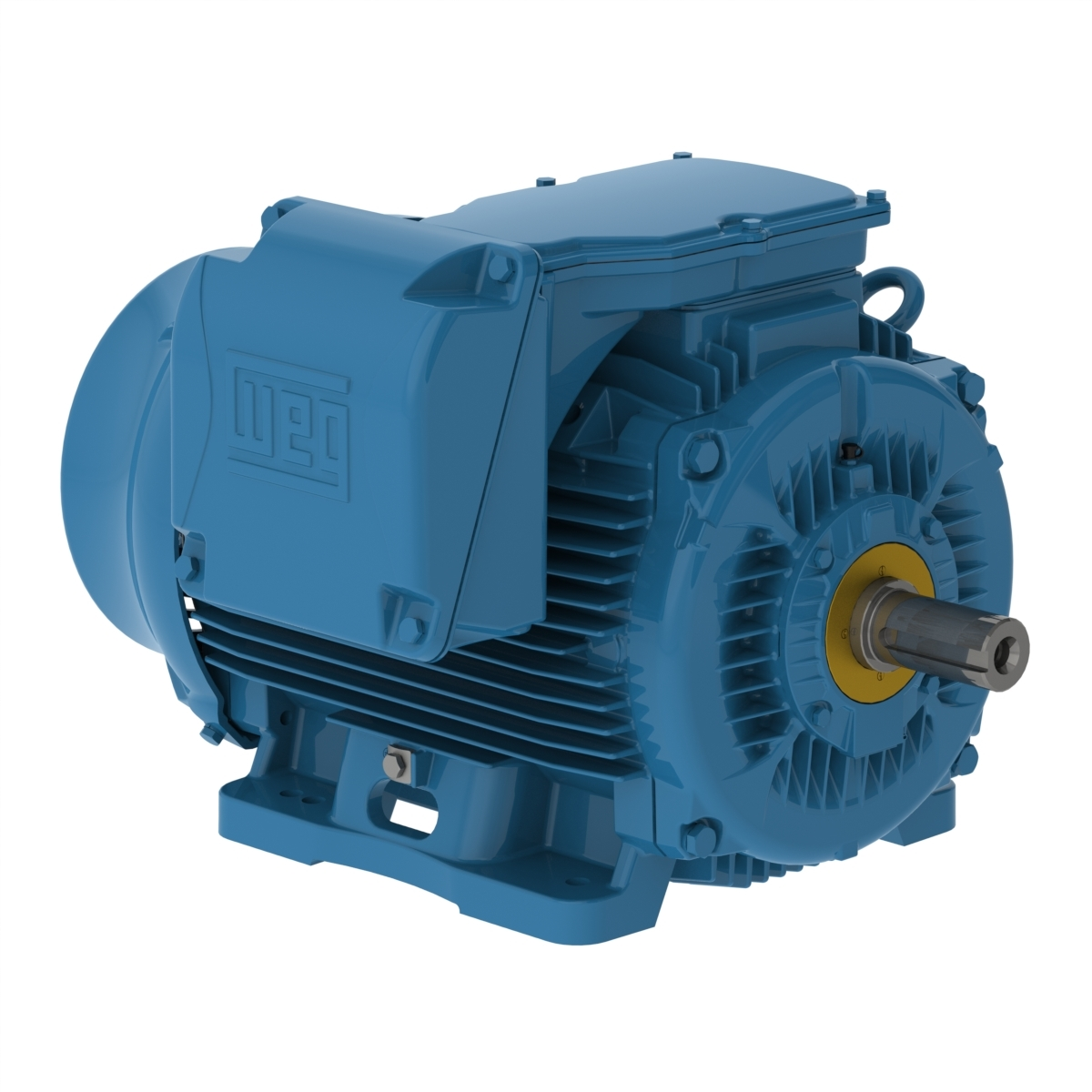

WEG 45018ET3GKD586/7-W22 13827809 Severe Duty Motor, 450 HP, 1800 RPM, 460 V PWS, 3 Phase, TEFC, 586/7 Frame, Footed, Crusher Duty
Get it by Wednesday, Feb 25
€55,048.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 250% |
| Cold Locked Rotor Time | 45 sec. |
| Connection Cables Quantity | 6 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 86% |
| Efficiency At 50 % | 75% |
| Efficiency At 75 % | 83% |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange Type | Without |
| Frame | 586/7T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Double |
| Hot Locked Rotor Time | 25 sec. |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 3758A |
| Locked Rotor Torque | 240% |
| Lrc | 7.5X(Code H) |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 229 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1786 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 160A |
| No. Of Holes | 2 |
| No. Of Poles | 4 |
| Noise Level | 78 dBA |
| Output | 450 hp |
| Output Rating | 450 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 96.2 |
| Power Factor At 50 % | 95.8 |
| Power Factor At 75 % | 96.2 |
| Rated Current | 501A |
| Rated Torque | 1320 lbs.-ft. |
| Rated Voltage | 460V |
| Regreasing System | At Drive End And Non Drive End |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Locking Device | With |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 4140 |
| Slip | 0.78% |
| Space Heater Voltage | 200-240V AC |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 2047.82 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 157.23 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Service Factor | Frequency | Hp | Full Load Amps | Nameplate Rpm | Motor Type | Mounting Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00158ET3W90L-W22 | 1 | 50 Hz | 2 hp | 2.8A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €914.46 | |
| 00218ET3W100L-W22 | 1 | 60 Hz | 3 hp | 4.1A | 1750 RPM | - | Rigid Base | 1700-1800 RPM | €1,095.12 | |
| 00418ET3Y112M-W22 | 1 | 50 Hz | 5 1/2 hp | 7.3A | 1755 RPM | - | Rigid Base | 1700-1800 RPM | €1,177.86 | |
| 00518ET3Y132S-W22 | 1 | 60 Hz | 7 1/2 hp | 9.1A | 1775 RPM | - | Rigid Base | 1700-1800 RPM | €1,613.01 | |
| 00718ET3Y132M-W22 | 1 | 50 Hz | 10 hp | 12.2A | 1770 RPM | - | Rigid Base | 1700-1800 RPM | €1,918.09 | |
| 01818ET3Y180MFF-W22 | 1.25 | 50/60 Hz | 25 hp | 30.6A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €4,486.20 | |
| 02218ET3Y180LFF-W22 | 1.25 | 50/60 Hz | 30 hp | 36A | 1775 RPM | - | Face/Base | 1700-1800 RPM | €5,926.53 |
