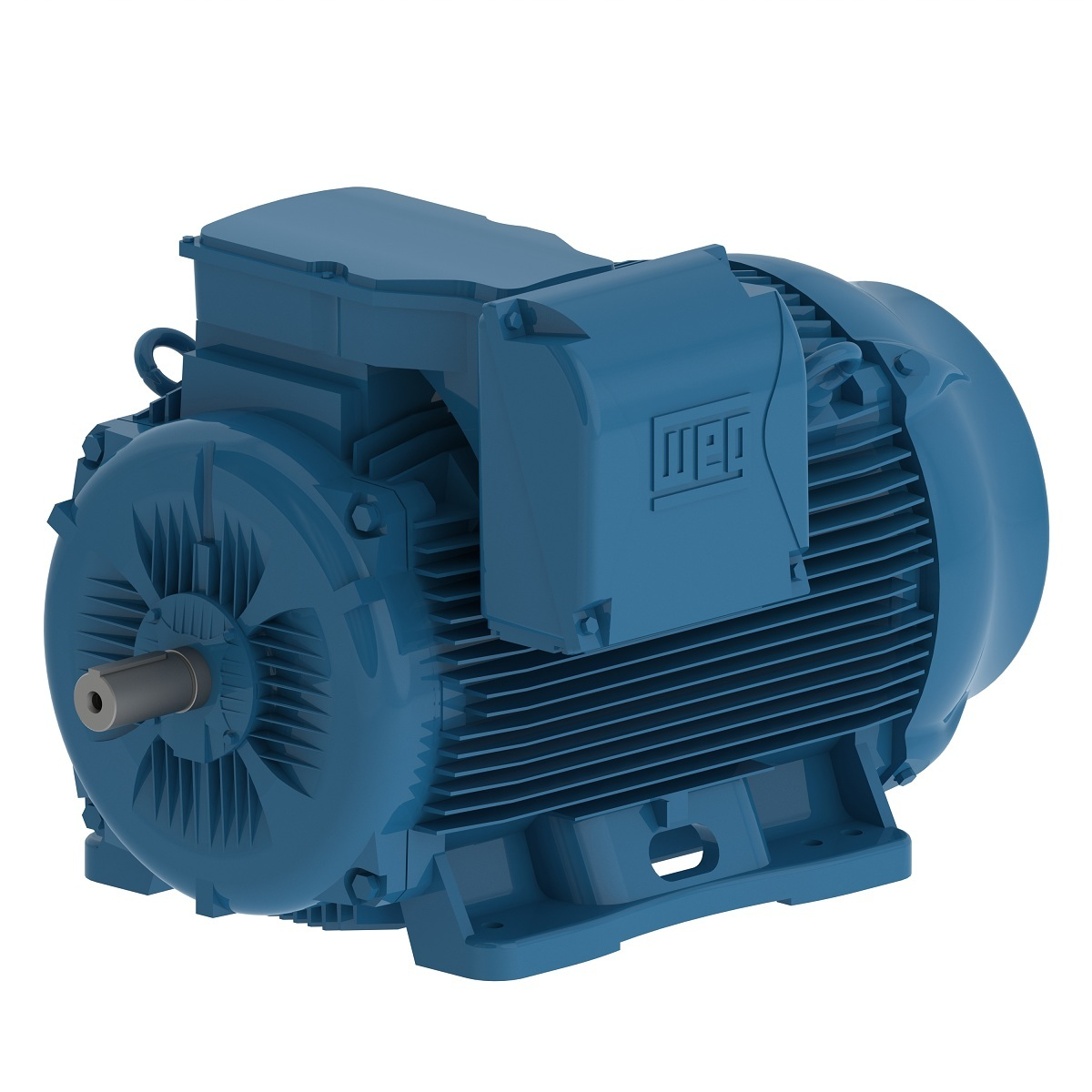

WEG 07509ET3Y315S/M-W22 13034285 General Purpose Motor, Cast Iron 315S/M Frame, 100 HP, 890 RPM, 460 V
900 rpm
100 hp
315S/M
Get it by Friday, Jul 17
€21,361.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Amps | 128A , 150A |
| Balancing Method | 1/2 Key , 1/2" Key |
| Bearing Cap | Yes |
| Break Down Torque | 160% , 260% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 108 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | No |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency 50% | 62% , 93.9% |
| Efficiency 75% | 94% |
| Efficiency @ 1 % | 78% |
| Efficiency @ 100% | 94.1% |
| Efficiency @ 75 % | 73% |
| Enclosure | IC411 |
| Enclosure Rating | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 315S/M |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs | Double |
| Grounding Lugs Type | Double |
| Hot Locked Rotor Time | 60 sec. |
| Hp | 100 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 832A , 900A |
| Locked Rotor Time (cold) | 72 sec. |
| Locked Rotor Time(hot) | 40 sec. , 60 sec. |
| Locked Rotor Torque | 160% , 200% |
| Lrc | 6.5 |
| Main Terminal Box Hole | 2 x M63 x 1.5 |
| Main Terminal Box Hole Size | M63 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 95.7 lbs.-sq. ft. |
| Moment Of Inertia (j) | 95.7 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 890 RPM |
| Mounting | B3L , Foot Mounted |
| Nde Bearing Seal | Yes |
| No Load Amps | 57.8A , 58.6A |
| No. Of Holes | 2 |
| No. Of Pins | 6 |
| No. Of Poles | 8 |
| Noise Level | 62 dBA , 66 dBA |
| Output | 100 hp |
| Output Rating | 100 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer , RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.69 |
| Power Factor 75% | 0.77 |
| Power Factor @ 1 % | 94.1 |
| Power Factor @ 50 % | 93.9 |
| Power Factor @ 75 % | 94 |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW, CCW |
| Screw Cap | Stainless Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.11% , 1.33% |
| Speed | 740 RPM , 900 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | BMC |
| Terminal Box | Right Position |
| Terminal Type | BMC |
| Torque | 590 lbs.-ft. , 710 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 380-415/460V , 460V AC |
Shipping Info:
| Ship weight (kg) | 1215.45 |
| Ship height (cm) | 51.46 |
| Ship length (cm) | 76.71 |
| Ship width (cm) | 57.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Frame | Duty Cycle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 182T | S1 | €1,106.24 | |
 |
00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 182/4T | S1 | €1,282.62 | |
|
00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 213T | S1 | €2,102.66 | |
|
00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 215T | S1 | €2,583.09 | |
 |
00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 254T | Continuous | €3,747.26 | |
 |
01509ES3EOW324T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 15 hp | 43-38.9/19.5A | 324T | Continuous | - | RFQ
|
|
01009ES3EOW286T-W22 | 208-230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1 | 10 hp | 30.7-27.8/13.9A | 286T | S1 | - | RFQ
|
