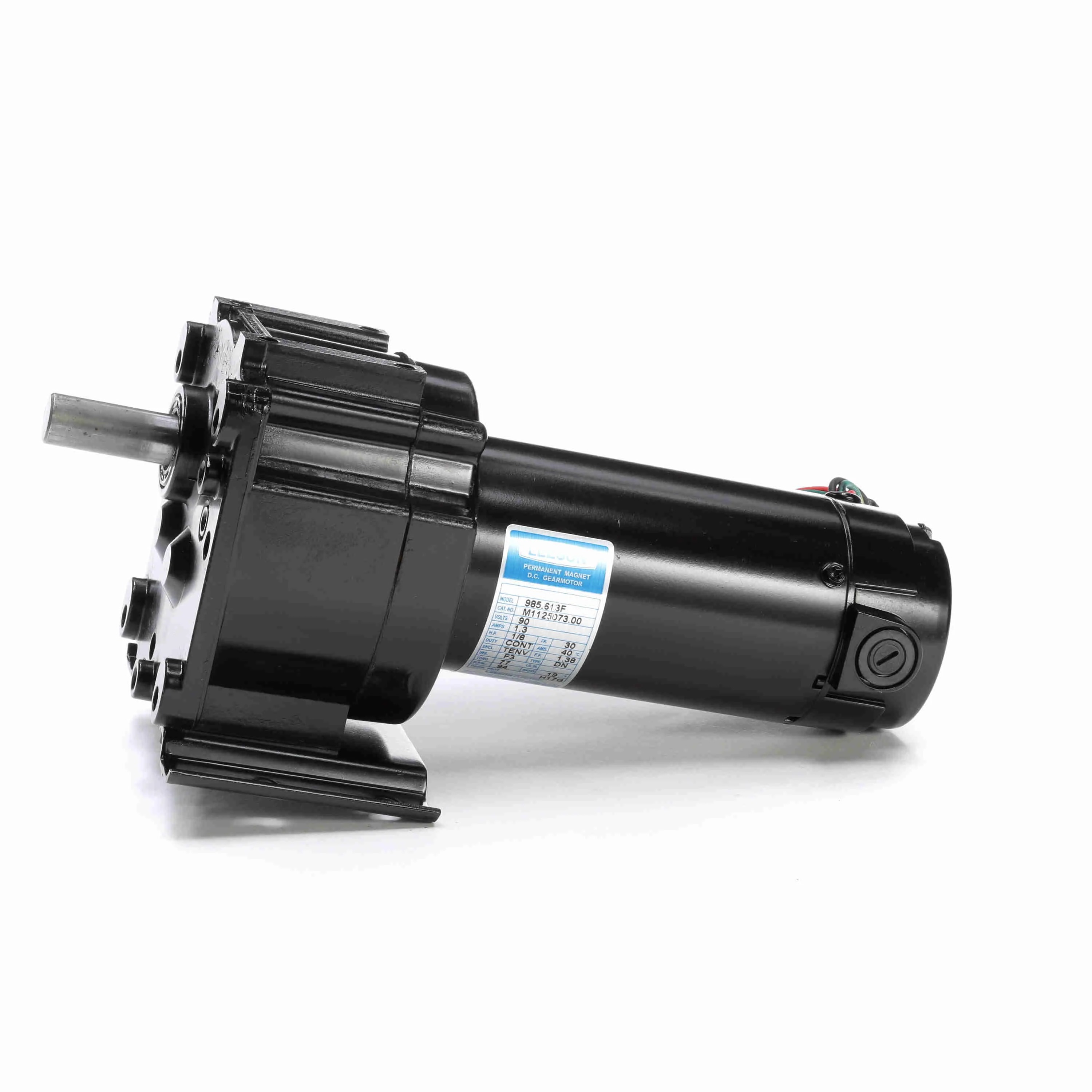

LEESON M1125073.00 985.613F Parallel Shaft Gearmotor, 0.13 HP, 90V, 94 RPM
0.13 hp
94 RPM
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,117.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Amps | 1.3A |
| Bearing Type | Needle |
| Drive End Bearing Size | 2034 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70.7% |
| Enclosure Type | Tenv |
| Features | Performance Matched For Continuous Duty |
| Footnotes | S, US |
| Frame Length | 4.91" |
| Frame Size | 30 |
| Frame Suffix | Not Available |
| Full Load Amps | 1.3A |
| Gear Material | Steel |
| Gear Ratio | 19:1 |
| Height | 5.63" |
| Hp | 13/100 hp |
| Input Hp | 13/100 hp |
| Insulation Class | Class F |
| Keyway Depth | 0.188" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 0.188" |
| Kw | 0.1 kW |
| Length | 15 1/4" |
| Length Less Shaft | 9 24/25" |
| Lubrication | Semi-Fluid Grease |
| Max. Output Speed | 94 RPM |
| Max. Torque | 77 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Type | Gearmotor |
| Mount Hole Center To Center Length | 4" |
| Mount Hole Center To Center Width | 1 1/2" |
| Mounting Type | Special |
| Nameplate Speed | 94 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 2034 |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Output Shaft Type | Keyed |
| Overall Height | 6.26" |
| Overall Length | 11.45" |
| Overall Width | 4 2/25" |
| Product Datasheet | leeson-m1125073-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Speed | 94 RPM |
| Thermal Protection | No Protection |
| Torque | 77 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Speed | Full Load Amps | Operating Voltage | Torque | Bearing Type | Shaft Dia. | Frame Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125071.00 | 90V | 51 RPM | 1.4A | 90V DC | 130 lbs.-in. | Needle | 5/8" | 4.91" | €1,047.82 | |
 |
M1125074.00 | 90V | 167 RPM | 1.3A | 90V DC | 43 lbs.-in. | Needle | 5/8" | 4.91" | €1,070.97 | |
 |
M1125004.00 | 90V | 100 RPM | 0.8A | 90V DC | 36 lbs.-in. | Ope6000 | 1/2" | 2.99" | €896.46 | |
 |
M1125069.00 | 90V | 24 RPM | 1.3A | 90V DC | 280 lbs.-in. | Needle | 5/8" | 4.91" | €1,106.22 | |
 |
M1115024.00 | 90V | 5 RPM | 0.56A | 90V DC | 353 lbs.-in. | Needle | 5/8" | 3 9/25" | €1,325.18 | |
 |
M1135109.00 | 90V | 50 RPM | 2.3A | 90V DC | 250 lbs.-in. | - | 3/4" | 6 3/5" | €1,057.41 | |
 |
M1125094.00 | 180V | 106 RPM | 0.31A | 180V DC | 26 lbs.-in. | Needle | 5/8" | 3 9/25" | €1,233.07 |
