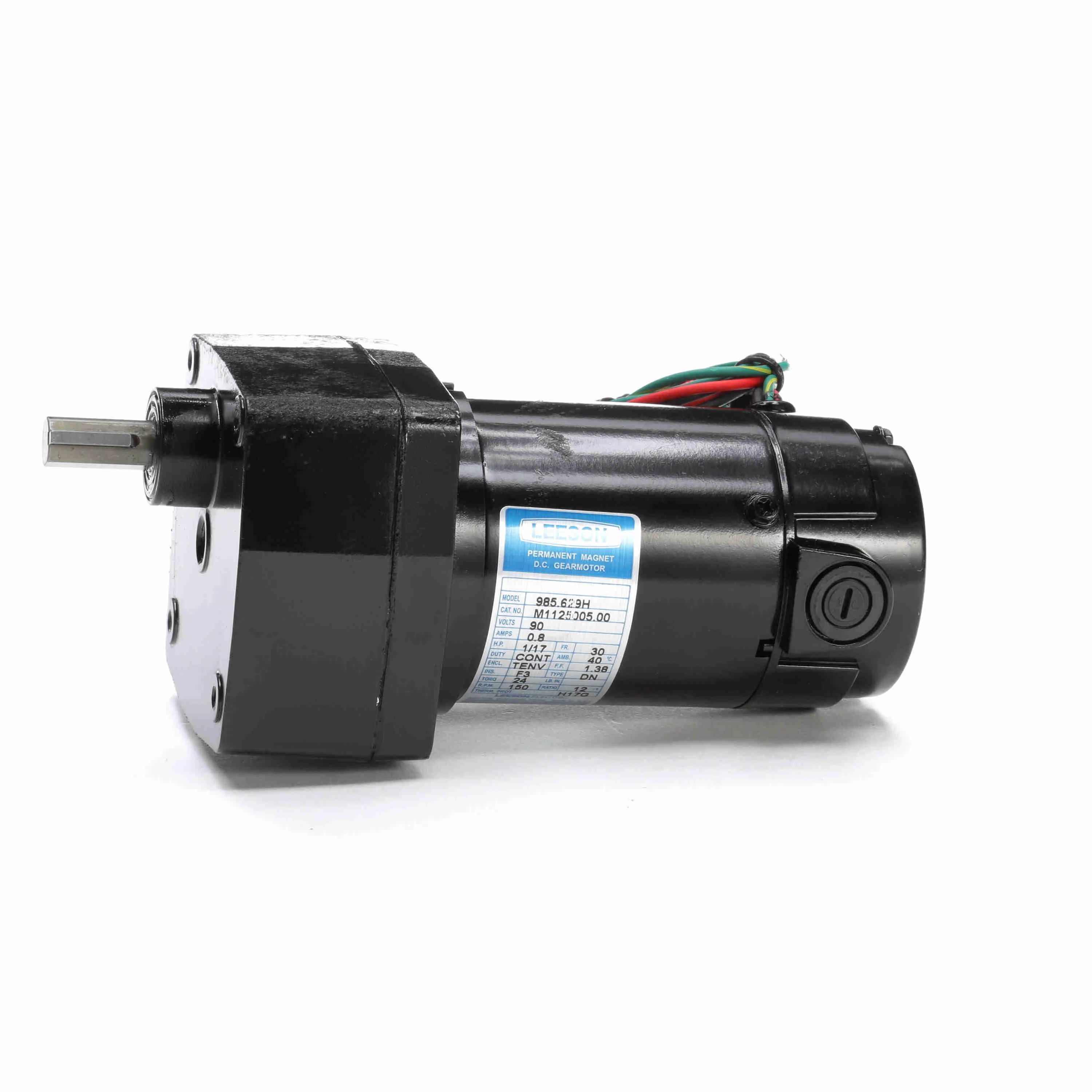

LEESON M1125005.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 150 RPM, 24 in-lb Max Torque, 12, 1 | CR8PRA 794AR4

LEESON M1125005.00 985.629H Parallel Shaft Gearmotor, 0.06 HP, 90V, 150 RPM

Item: CR8PRAModel: M1125005.00Cross Ref: 794AR4 / 985.629H
7 In Stock

Ships within 2 days via

€920.42
5.00% off
€874.40 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Parallel
Ambient Temp. 40°C
Amps 0.8A
Base To Center Of Shaft 3"
Bearing Type Ope6000
Drive End Bearing Size 6000
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 59%
Enclosure Type Tenv
Features Lubrication Is Permanent Semi-Fluid Grease
Frame Length 2.99"
Frame Size 30
Frame Suffix Not Available
Full Load Amps 0.8A
Gear Material Steel
Gear Ratio 12:1
Height 6.69"
Hp 3/50 hp
Input Hp 1/17 hp
Insulation Class Class F
Keyway Depth 3/4"
Keyway Length 3/4"
Keyway Type Square
Keyway Width 1/8"
Kw 0.04 kW
Length 16 1/2"
Length Less Shaft 6.9"
Lubrication Semi-Fluid Grease
Max. Ambient Temp. 40°C
Max. Output Speed 150 RPM
Max. Torque 24 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Non Ventilated
Motor Insulation Class Class F
Motor Type Permanent Magnet DC
Mount Hole Center To Center Length 1 22/25"
Mount Hole Center To Center Width 3 3/4"
Mounting Orientation Horizontal, Vertical with Shaft Down
Mounting Type Special
Nameplate Speed 150 RPM
Operating Voltage 90V DC
Opp Drive End Bearing Size 6000
Opp. Drive End Bearing Type Ball
Output Kw 0.04 kW
Output Shaft Dia. 1/2"
Output Shaft Length 1"
Overall Height 3.98"
Overall Length 8.46"
Overall Width 3 3/4"
Overhung Load Capacity 180 lbs.-ft.
Product Datasheet leeson-m1125005-00.pdf
Rotation CW, CCW
Rotation Type Reversible
Service Factor 1
Shaft Dia. 1/2"
Shaft Length 1"
Shaft Orientation Parallel
Shaft Type Parallel
Speed 150 RPM
Starting Torque 24 lbs.-in.
Thermal Protection None
Torque 24 lbs.-in.
Voltage 90V

Shipping Info:

Ship weight (kg) 3.15
Ship height (cm)16.99
Ship length (cm)41.91
Ship width (cm)19.51
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelVoltageNameplate SpeedFull Load AmpsOperating VoltageTorqueBearing TypeShaft Dia.Frame LengthPrice
LEESON M1125071.00 Motor, Parallel, 90VDC, TENV, 51 RPM, 130 in-lb | CR8PMN 36X874 M1125071.0090V51 RPM1.4A90V DC130 lbs.-in.Needle5/8"4.91"€1,047.82
LEESON M1125074.00 90 Volt Dc Gearmotor, Parallel, 90VDC, TENV, 167 RPM, 43 in-lb | CR8PMP 36X633 M1125074.0090V167 RPM1.3A90V DC43 lbs.-in.Needle5/8"4.91"€1,070.97
LEESON M1125004.00 90Vdc Gear Motor 31Rpm, Parallel, 90VDC, TENV, 100 RPM, 36 in-lb | CR8PMQ 36X883 M1125004.0090V100 RPM0.8A90V DC36 lbs.-in.Ope60001/2"2.99"€896.46
LEESON M1125069.00 Motor, Parallel, 90V Dc, Tenv, 24 Rpm, 280 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMT 36X876 M1125069.0090V24 RPM1.3A90V DC280 lbs.-in.Needle5/8"4.91"€1,106.22
LEESON M1125073.00 Motor, Parallel, 90V Dc, Tenv, 94 Rpm, 77 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMU 36X856 M1125073.0090V94 RPM1.3A90V DC77 lbs.-in.Needle5/8"4.91"€1,176.33
LEESON M1115024.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 5 RPM, 353 in-lb Max Torque, 336, 1 | CR8PNU 794AR8 M1115024.0090V5 RPM0.56A90V DC353 lbs.-in.Needle5/8"3 9/25"€1,325.18
LEESON M1135109.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 50 RPM, 250 in-lb Max Torque, 50, 1 | CR8PNW 794AU9 M1135109.0090V50 RPM2.3A90V DC250 lbs.-in.-3/4"6 3/5"€1,057.41
