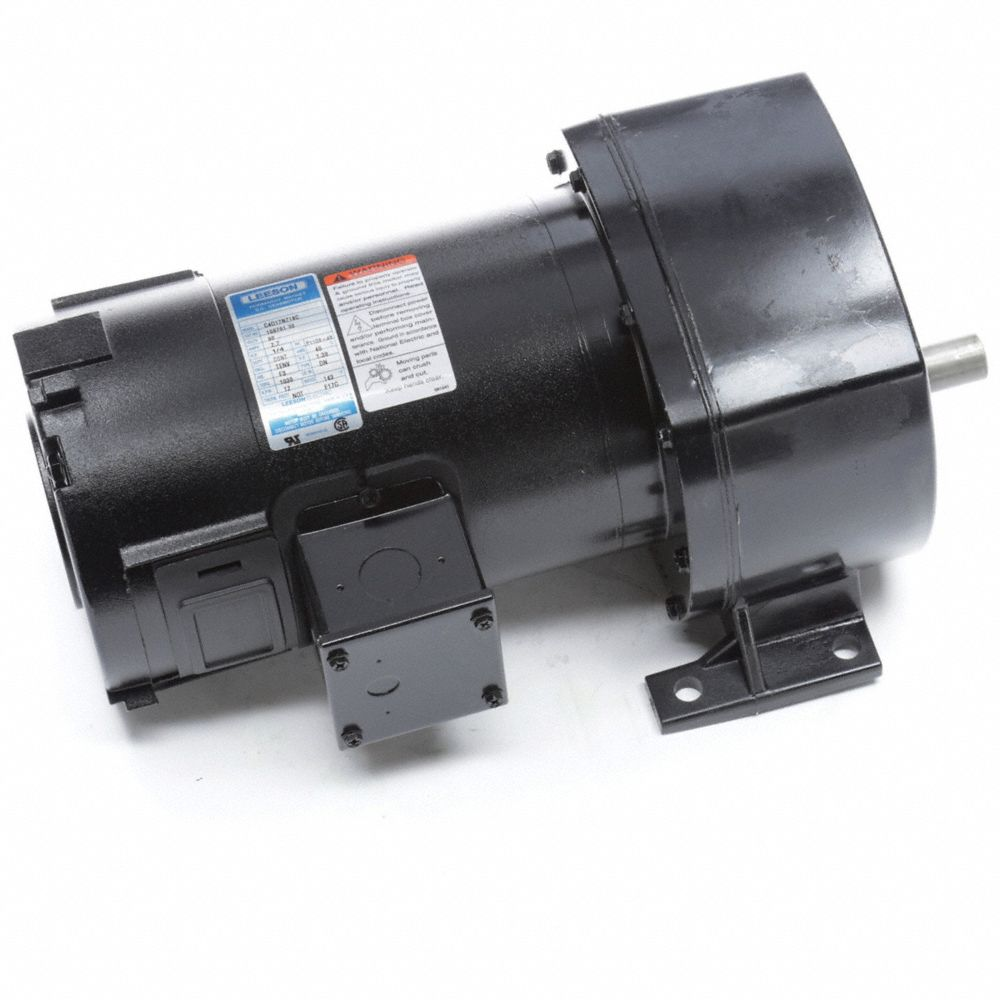

LEESON 108701.00 C4D17NZ18C Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 12 RPM, 1,030 Inch-lb Torque
1/4 hp
12 RPM
Get it by Monday, Aug 24
5.00% off
€1,781.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel |
| Gear Ratio | 143:1 |
| Input Hp | 1/4 hp |
| Max. Torque | 1030 lbs.-in. |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Nameplate | 0-15 RPM |
| Operating Voltage | 90V DC |
| Output Shaft Height | 3" |
| Overhung Load Capacity | 700 lbs. |
| Product Datasheet | leeson-108701-00.pdf |
| Shaft Orientation | Parallel |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Speed | Full Load Amps | Operating Voltage | Torque | Bearing Type | Shaft Dia. | Frame Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125071.00 | 90V | 51 RPM | 1.4A | 90V DC | 130 lbs.-in. | Needle | 5/8" | 4.91" | €1,047.82 | |
 |
M1125074.00 | 90V | 167 RPM | 1.3A | 90V DC | 43 lbs.-in. | Needle | 5/8" | 4.91" | €1,070.97 | |
 |
M1125004.00 | 90V | 100 RPM | 0.8A | 90V DC | 36 lbs.-in. | Ope6000 | 1/2" | 2.99" | €896.46 | |
 |
M1125069.00 | 90V | 24 RPM | 1.3A | 90V DC | 280 lbs.-in. | Needle | 5/8" | 4.91" | €1,106.22 | |
 |
M1125073.00 | 90V | 94 RPM | 1.3A | 90V DC | 77 lbs.-in. | Needle | 5/8" | 4.91" | €1,176.33 | |
 |
M1115024.00 | 90V | 5 RPM | 0.56A | 90V DC | 353 lbs.-in. | Needle | 5/8" | 3 9/25" | €1,325.18 | |
 |
M1135109.00 | 90V | 50 RPM | 2.3A | 90V DC | 250 lbs.-in. | - | 3/4" | 6 3/5" | €1,057.41 |
