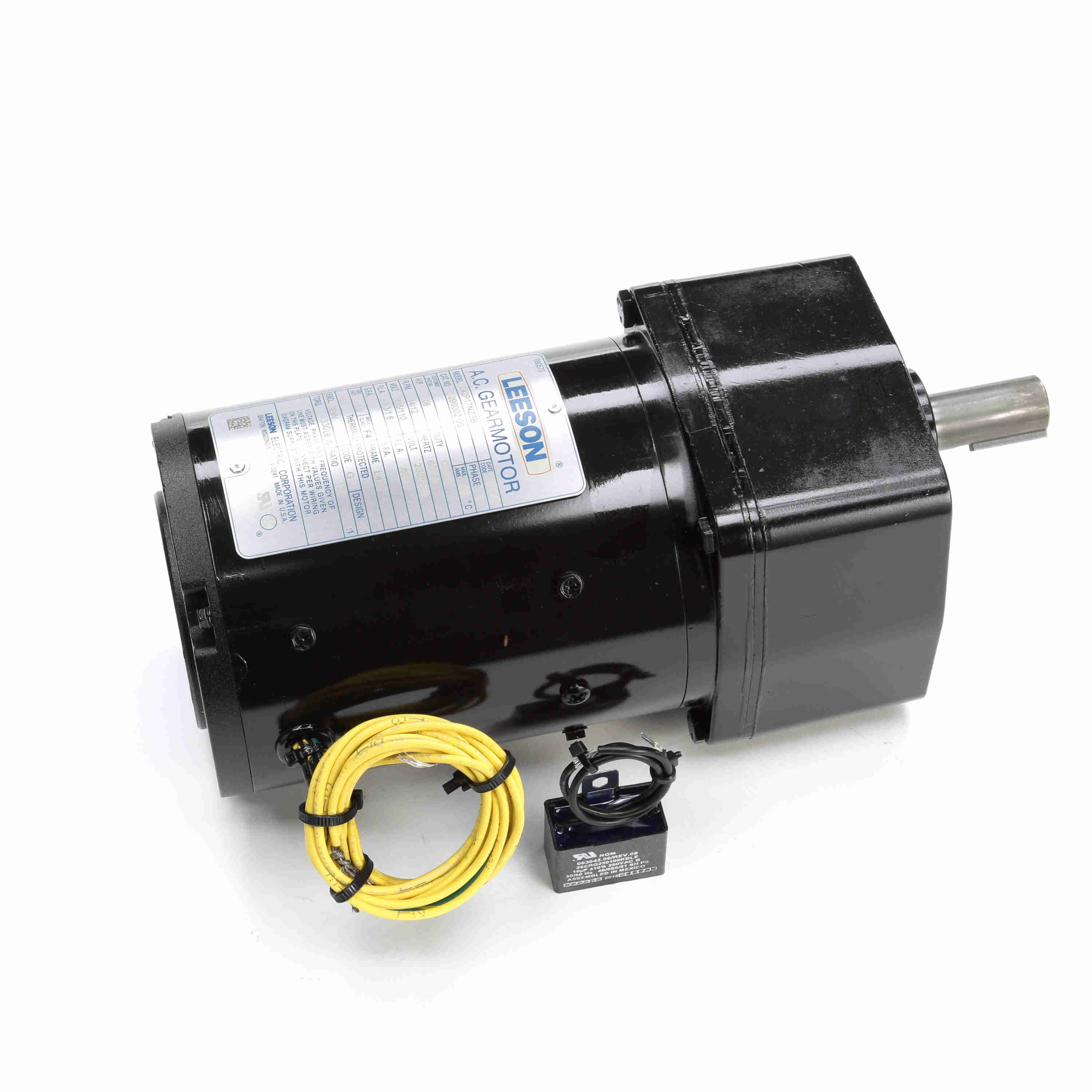

LEESON 096002.00 C42P17NZ3B Parallel Shaft Gearmotor, 0.08 HP, 1 Phase, 60/50 Hz, 110V, 14 RPM
0.08 hp
14 RPM
Get it by Friday, May 15
€973.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Amps | 1.3/0.65A |
| Base To Center Of Shaft | 4" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Code | G |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tenv |
| Frame Length | 5 1/2" |
| Frame Type | L42Y |
| Frequency | 50/60 Hz |
| Full Load Current | 1.3/0.65A |
| Gear Ratio | 124:1 |
| Height | 10 22/25" |
| Housing Material | Die Cast Aluminum |
| Hp | 2/25 hp |
| Includes | Conduit Box |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 21/253 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kva Code | G |
| Kw | 0.06 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9.36" |
| Lubrication | Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 14 RPM |
| Maximum Torque | 330 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Frame Designation | L42Y |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Horizontal Or Vertical Shaft Down |
| Mounting | Special |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate Speed | 142 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 5.57" |
| Overall Length | 11.36" |
| Overall Width | 6" |
| Overhung Load Capacity | 459 lbs.-ft. |
| Packaging | B |
| Phase | 1 |
| Product Datasheet | leeson-096002-00.pdf |
| Rotation | CW/CCW |
| Rpm | 14 RPM |
| Seal Type | Heavy Duty Industrial |
| Series | PE350 |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 5/8" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 330 lbs.-in. |
| Type | PN |
| Voltage | 110V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 7.97 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- HPKW: .08/.08
- Nameplate: 080573
- Overrlung Ld.: 459
- Winding: P47411
- GROUP: 3 C
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Shaft Orientation | Motor Type | Overhung Load Capacity | Operating Voltage | Gear Ratio | Base To Center Of Shaft | Rpm | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125283.00 | Parallel | 3-Phase | 155 lbs.-ft. | 208-230V AC | 30:1 | - | 57 RPM | Permanent Heavy Duty Gear Oil | €1,081.26 | |
 |
M1125284.00 | Parallel | 3-Phase | 155 lbs.-ft. | 208-230V AC | 12:1 | - | 142 RPM | Permanent Heavy Duty Gear Oil | €1,036.99 | |
 |
096001.00 | Parallel | Permanent Split Capacitor | 491 lbs.-ft. | 115V AC | 180:1 | 4" | 9 RPM | Heavy Duty Gear Oil | €1,010.52 | |
 |
096003.00 | Parallel | Permanent Split Capacitor | 374 lbs.-ft. | 115V AC | 91:1 | 4" | 19 RPM | Heavy Duty Gear Oil | €1,368.50 | |
 |
M1125050.00 | Parallel | Permanent Split Capacitor | 155 lbs.-ft. | 115V AC | 900:1 | 3" | 2 RPM | Semi-Fluid Grease | €1,084.37 | |
 |
M1145023.00 | Inline | Permanent Split Capacitor | 407 lbs.-ft. | 115V AC | 114:1 | 3.51" | 15 RPM | Semi-Fluid Grease | €1,428.72 | |
 |
M1145024.00 | Parallel | Permanent Split Capacitor | 330 lbs.-ft. | 115/230V AC | 52:1 | 3.51" | 30 RPM | Semi-Fluid Grease | €1,423.78 |
