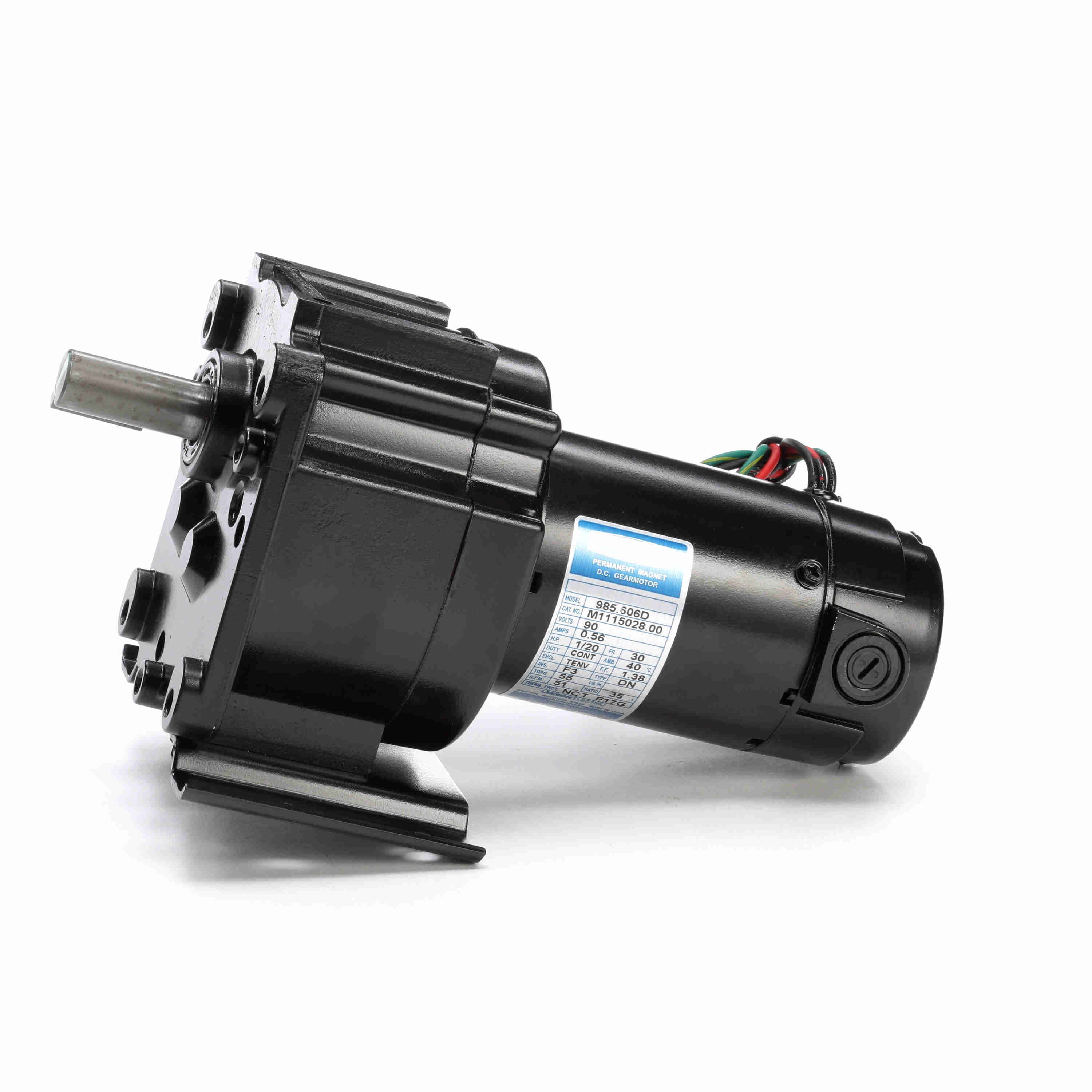

LEESON M1115028.00 985.606D Parallel Shaft Gearmotor, 0.05 HP, 90V, 51 RPM
Item: CR8PRTModel: M1115028.00Cross Ref: 794AT5 / 985.606D
7 In Stock
0.05 hp
51 RPM
Ships within 2 days via
€990.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 0.56A |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Drive End Bearing Size | 2034 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 48.6% |
| Enclosure Type | Tenv |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Footnotes | S, US |
| Frame Length | 3 9/25" |
| Frame Size | 30 |
| Frame Suffix | Not Available |
| Full Load Amps | 0.56A |
| Gear Material | Steel |
| Gear Ratio | 35:1 |
| Height | 6.69" |
| Hp | 1/20 hp |
| Input Hp | 1/20 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kw | 0.04 kW |
| Length | 16 1/2" |
| Length Less Shaft | 8.41" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 51 RPM |
| Max. Torque | 55 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Special |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 51 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Size | 2034 |
| Output Kw | 0.04 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.26" |
| Overall Length | 9.91" |
| Overall Width | 4 2/25" |
| Overhung Load Capacity | 281 lbs.-ft. |
| Product Datasheet | leeson-m1115028-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 51 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Starting Torque | 55 lbs.-in. |
| Torque | 55 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Shaft Orientation | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125039.00 | Parallel | 180V DC | 35:1 | 51 RPM | 1/8 hp | 3 1/2" | 227 lbs.-ft. | 130 lbs.-in. | €1,007.08 | |
 |
M112528100 | - | - | - | - | - | - | - | - | €1,265.04 |
