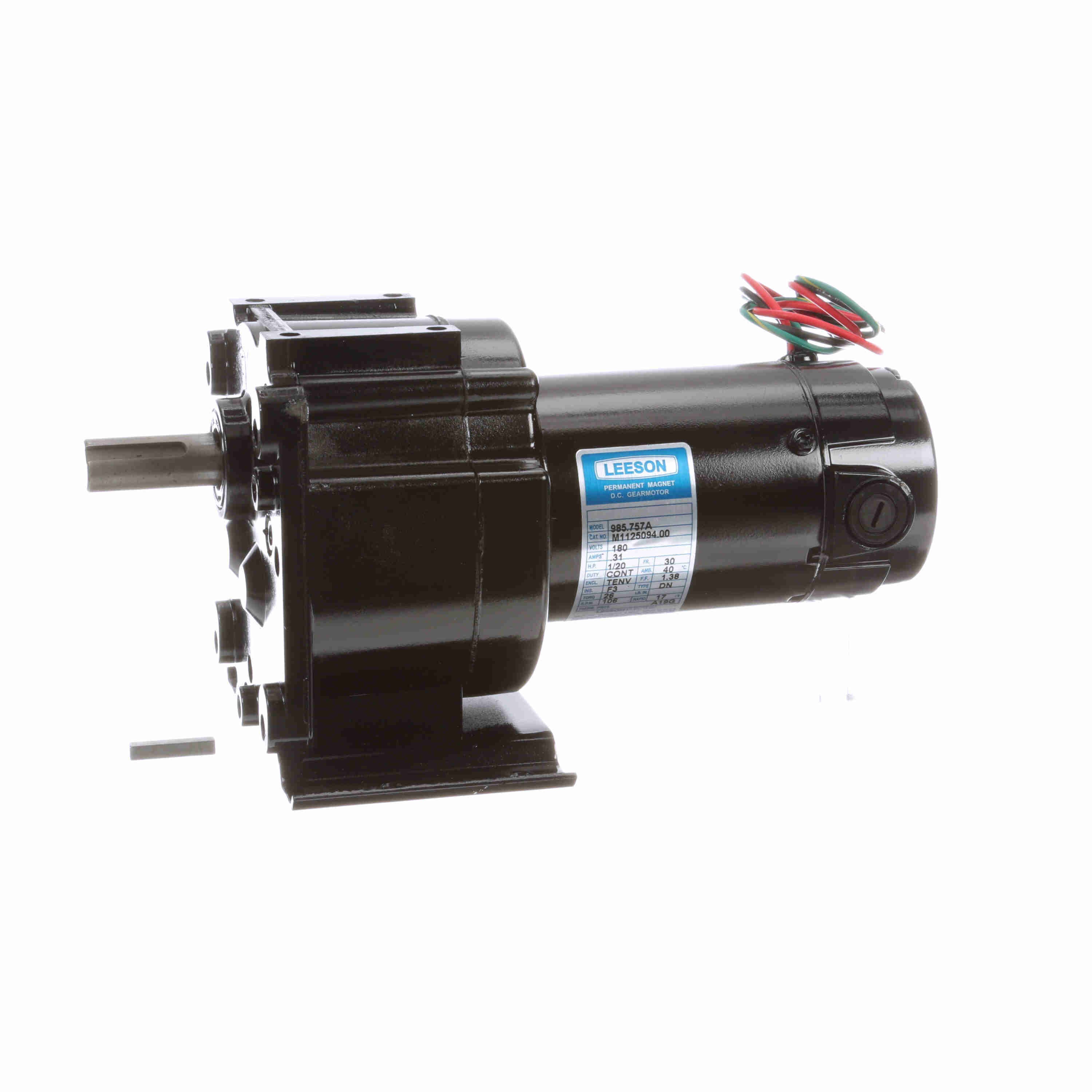

LEESON M1125094.00 985.757A Parallel Shaft Gearmotor, 0.05 HP, 180V, 106 RPM
Item: CR8PNXModel: M1125094.00Cross Ref: 794AT9 / 985.757A
7 In Stock
0.05 hp
106 RPM
Ships within 2 days via
5.00% off
€1,025.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 0.31A |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Drive End Bearing Size | 6000 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 48.3% |
| Enclosure Type | Tenv |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Footnotes | S, US |
| Frame Length | 3 9/25" |
| Frame Size | 30 |
| Frame Suffix | Not Available |
| Full Load Amps | 0.31A |
| Gear Material | Steel |
| Gear Ratio | 17:1 |
| Height | 5.63" |
| Hp | 1/20 hp |
| Input Hp | 1/8 hp |
| Insulation Class | Class F |
| Keyway Depth | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.04 kW |
| Length | 15 1/4" |
| Length Less Shaft | 8.41" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 106 RPM |
| Maximum Torque | 26 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Special |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 106 RPM |
| Operating Voltage | 180V DC |
| Opp. Drive End Bearing Size | 6000 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.04 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.26" |
| Overall Length | 9.91" |
| Overall Width | 4 2/25" |
| Overhung Load Capacity | 222 lbs.-ft. |
| Product Datasheet | leeson-m1125094-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 106 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 26 lbs.-in. |
| Torque | 26 lbs.-in. |
| Voltage | 180V |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Gear Ratio | Input Hp | Nameplate Rpm | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125071.00 | 90V DC | 35:1 | - | 51 RPM | 3 1/2" | 277 lbs.-ft. | 130 lbs.-in. | 11.45" | €1,017.86 | |
 |
M1125074.00 | 90V DC | 11:1 | - | 167 RPM | - | - | 43 lbs.-in. | 11.45" | €990.65 | |
 |
M1125004.00 | 90V DC | 18:1 | 3/50 hp | 100 RPM | - | - | 36 lbs.-in. | 8.74" | €812.90 | |
 |
M1125069.00 | 90V DC | 76:1 | 13/100 hp | 24 RPM | - | - | 280 lbs.-in. | 11.45" | €1,044.63 | |
 |
M1125073.00 | 90V DC | 19:1 | 13/100 hp | 94 RPM | - | - | 77 lbs.-in. | 11.45" | €1,152.51 | |
 |
M1115024.00 | 90V DC | 336:1 | 1/20 hp | 5 RPM | 3 1/2" | 565 lbs.-ft. | 353 lbs.-in. | 9.91" | €1,177.79 | |
 |
M1135109.00 | 90V DC | 50:1 | 1/4 hp | 50 RPM | 4" | 315 lbs.-ft. | - | 13.31" | €1,057.41 |
