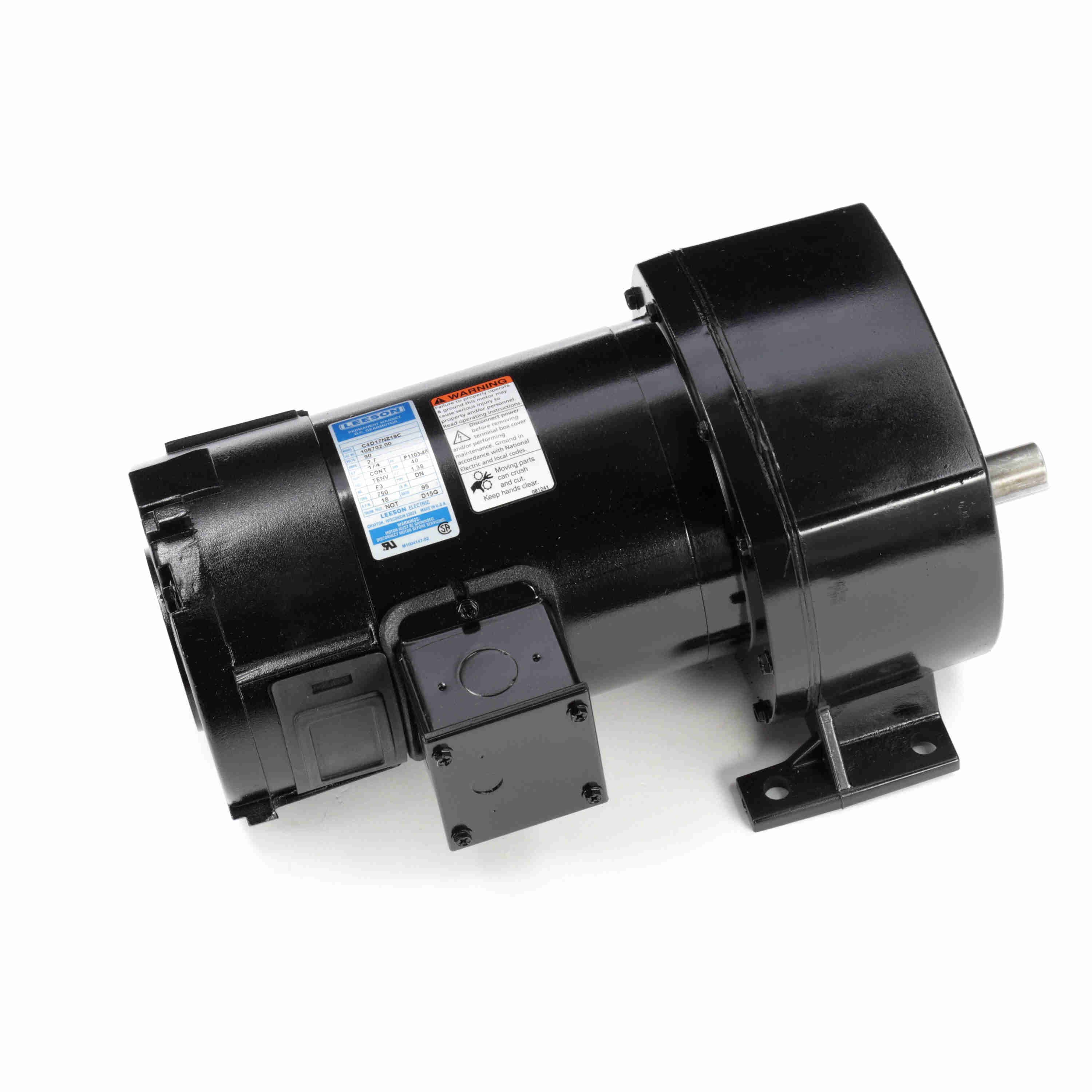

LEESON 108702.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 18 RPM, 750 in-lb Max Torque, 95, 1 | CR8PRC 794AW5

LEESON 108702.00 C4D17NZ19C Parallel Shaft Gearmotor, 0.25 HP, 90V, 18 RPM

Item: CR8PRCModel: 108702.00Cross Ref: 794AW5 / C4D17NZ19C
Check Availability
In Stock

Get it by Wednesday, May 20

€1,720.99 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Parallel
Amps 2.7A
Base To Center Of Shaft 3"
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 61.1%
Enclosure Type Tenv
Features Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing
Frame Length 4.97"
Frame Type 48Y
Full Load Amps 2.7A
Gear Ratio 95:1
Height 10 22/25"
Hp 1/4 hp
Input Hp 1/4 hp
Insulation Class Class F
Keyway Depth 0.188"
Keyway Length 1.062"
Keyway Type Square
Keyway Width 1"
Kw 0.19 kW
Length 19 1/2"
Length Less Shaft 12.61"
Max. Ambient Temp. 40°C
Max. Output Speed 18 RPM
Max. Torque 750 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Nonventilated
Motor Type Permanent Magnet DC
Mount Hole Center-to-center Length 2 1/2"
Mount Hole Center-to-center Width 7.13"
Mounting Orientation Horizontal Vertical With Shaft Down
Mounting Type Special
Nameplate Rpm 18 RPM
Operating Voltage 90V DC
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Shaft Dia. 3/4"
Output Shaft Length 1 1/2"
Overall Height 6.65"
Overall Length 14.11"
Overall Width 8.13"
Overhung Load Capacity 700 lbs.-ft.
Product Datasheet leeson-108702-00.pdf
Rotation CW/CCW
Rpm 18 RPM
Seal Type Heavy Duty Industrial
Service Factor 1
Shaft Dia. 3/4"
Shaft Length 1 1/2"
Shaft Orientation Parallel
Shaft Type Parallel
Starting Torque 750 lbs.-in.
Thermal Protection No Protection
Voltage 90V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 18.45
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelOperating VoltageGear RatioInput HpNameplate RpmBase To Center Of ShaftOverhung Load CapacityMax. TorqueOverall LengthPrice
LEESON M1125071.00 Motor, Parallel, 90VDC, TENV, 51 RPM, 130 in-lb | CR8PMN 36X874 M1125071.0090V DC35:1-51 RPM3 1/2"277 lbs.-ft.130 lbs.-in.11.45"€1,017.86
LEESON M1125074.00 90 Volt Dc Gearmotor, Parallel, 90VDC, TENV, 167 RPM, 43 in-lb | CR8PMP 36X633 M1125074.0090V DC11:1-167 RPM--43 lbs.-in.11.45"€990.65
LEESON M1125004.00 90Vdc Gear Motor 31Rpm, Parallel, 90VDC, TENV, 100 RPM, 36 in-lb | CR8PMQ 36X883 M1125004.0090V DC18:13/50 hp100 RPM--36 lbs.-in.8.74"€812.90
LEESON M1125069.00 Motor, Parallel, 90V Dc, Tenv, 24 Rpm, 280 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMT 36X876 M1125069.0090V DC76:113/100 hp24 RPM--280 lbs.-in.11.45"€1,044.63
LEESON M1125073.00 Motor, Parallel, 90V Dc, Tenv, 94 Rpm, 77 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMU 36X856 M1125073.0090V DC19:113/100 hp94 RPM--77 lbs.-in.11.45"€1,152.51
LEESON M1115024.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 5 RPM, 353 in-lb Max Torque, 336, 1 | CR8PNU 794AR8 M1115024.0090V DC336:11/20 hp5 RPM3 1/2"565 lbs.-ft.353 lbs.-in.9.91"€1,177.79
LEESON M1135109.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 50 RPM, 250 in-lb Max Torque, 50, 1 | CR8PNW 794AU9 M1135109.0090V DC50:11/4 hp50 RPM4"315 lbs.-ft.-13.31"€1,057.41
