LEESON M1115024.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 5 RPM, 353 in-lb Max Torque, 336, 1 | CR8PNU 794AR8

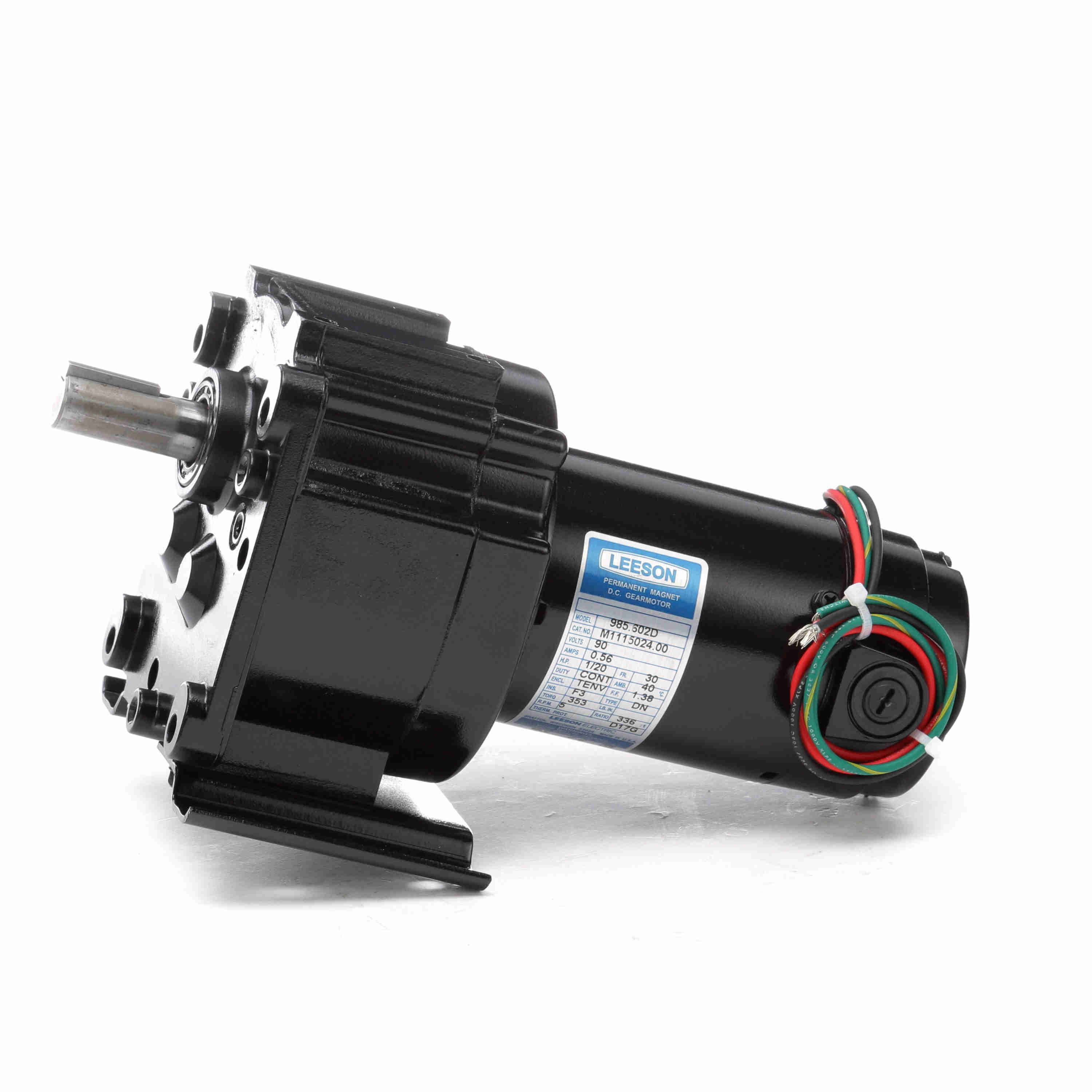

LEESON M1115024.00 985.602D Parallel Shaft Gearmotor, 0.05 HP, 90V, 5 RPM

Item: CR8PNUModel: M1115024.00Cross Ref: 794AR8 / 985.602D
7 In Stock

Ships within 2 days via

€1,177.79
5.00% off
€1,118.91 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Parallel
Ambient Temp. 40°C
Amps 0.56A
Base To Center Of Shaft 3 1/2"
Bearing Type Needle
Drive End Bearing Size 2034
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 41.6%
Enclosure Type Tenv
Features Lubrication Is Permanent Semi-Fluid Grease
Footnotes S, US
Frame Length 3 9/25"
Frame Size 30
Frame Suffix Not Available
Full Load Amps 0.56A
Gear Material Steel
Gear Ratio 336:1
Height 6.69"
Hp 1/20 hp
Input Hp 1/20 hp
Insulation Class Class F
Keyway Depth 3/16"
Keyway Type Square
Keyway Width 1"
Kw 0.04 kW
Length 16 1/2"
Length Less Shaft 8.41"
Lubrication Semi-Fluid Grease
Max. Ambient Temp. 40°C
Max. Output Speed 5 RPM
Max. Torque 353 lbs.-in.
Motor Duty Class Continuous
Motor Enclosure Totally Enclosed Nonventilated
Motor Insulation Class Class F
Motor Type Permanent Magnet DC
Mount Hole Center-to-center Length 1 1/2"
Mount Hole Center-to-center Width 4"
Mount Type Special
Mounting Orientation Horizontal, Vertical with Shaft Down
Mounting Type Special
Nameplate Rpm 5 RPM
Operating Voltage 90V DC
Opp. Drive End Bearing Size 2034
Output Kw 0.04 kW
Output Shaft Dia. 5/8"
Output Shaft Length 1 1/2"
Overall Height 6.26"
Overall Length 9.91"
Overall Width 4 2/25"
Overhung Load Capacity 565 lbs.-ft.
Product Datasheet leeson-m1115024-00.pdf
Rotation CW/CCW
Rotation Type Reversible
Rpm 5 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 1/2"
Shaft Orientation Parallel
Shaft Type Parallel
Starting Torque 353 lbs.-in.
Torque 353 lbs.-in.
Voltage 90V

Shipping Info:

Ship weight (kg) 4.05
Ship height (cm)16.99
Ship length (cm)41.91
Ship width (cm)19.51
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelOperating VoltageGear RatioInput HpNameplate RpmBase To Center Of ShaftOverhung Load CapacityMax. TorqueOverall LengthPrice
LEESON M1125071.00 Motor, Parallel, 90VDC, TENV, 51 RPM, 130 in-lb | CR8PMN 36X874 M1125071.0090V DC35:1-51 RPM3 1/2"277 lbs.-ft.130 lbs.-in.11.45"€1,017.86
LEESON M1125074.00 90 Volt Dc Gearmotor, Parallel, 90VDC, TENV, 167 RPM, 43 in-lb | CR8PMP 36X633 M1125074.0090V DC11:1-167 RPM--43 lbs.-in.11.45"€990.65
LEESON M1125004.00 90Vdc Gear Motor 31Rpm, Parallel, 90VDC, TENV, 100 RPM, 36 in-lb | CR8PMQ 36X883 M1125004.0090V DC18:13/50 hp100 RPM--36 lbs.-in.8.74"€812.90
LEESON M1125069.00 Motor, Parallel, 90V Dc, Tenv, 24 Rpm, 280 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMT 36X876 M1125069.0090V DC76:113/100 hp24 RPM--280 lbs.-in.11.45"€1,044.63
LEESON M1125073.00 Motor, Parallel, 90V Dc, Tenv, 94 Rpm, 77 In-Lb Max Torque, 13/100 Hp Input Horsepower | CR8PMU 36X856 M1125073.0090V DC19:113/100 hp94 RPM--77 lbs.-in.11.45"€1,152.51
LEESON M1135109.00 Parallel Shaft Gearmotors, Parallel, 90V DC, TENV, 50 RPM, 250 in-lb Max Torque, 50, 1 | CR8PNW 794AU9 M1135109.0090V DC50:11/4 hp50 RPM4"315 lbs.-ft.-13.31"€1,057.41
LEESON M1125094.00 Parallel Shaft Gearmotors, Parallel, 180V DC, TENV, 106 RPM, 26 in-lb Max Torque, 17, 1 | CR8PNX 794AT9 M1125094.00180V DC17:11/8 hp106 RPM3 1/2"222 lbs.-ft.-9.91"€1,079.03
