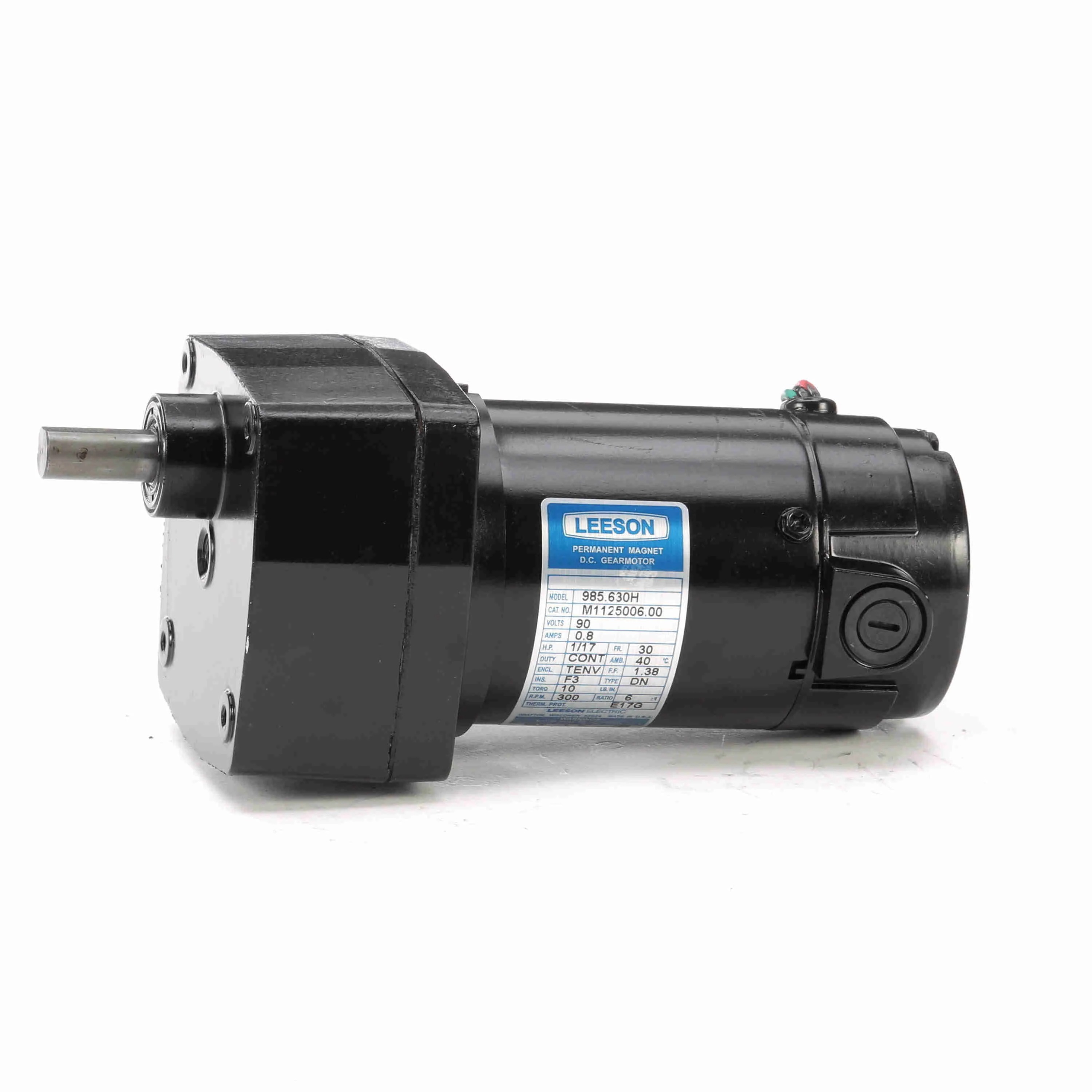

LEESON M1125006.00 985.630H Parallel Shaft Gearmotor, 0.06 HP, 90V, 300 RPM
Item: CR8PRHModel: M1125006.00Cross Ref: 794AR5 / 985.630H
7 In Stock
0.06 hp
300 RPM
Ships within 2 days via
€775.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 0.8A |
| Base To Center Of Shaft | 3" |
| Bearing Type | Ope |
| Design Code | Codebearing Pe |
| Drive End Bearing Size | 6000 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 57.6% |
| Enclosure Type | Tenv |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Frame Length | 2.99" |
| Frame Size | 30 |
| Frame Suffix | Not Available |
| Full Load Amps | 0.8A |
| Gear Material | Steel |
| Gear Ratio | 6:1 |
| Height | 6.69" |
| Hp | 3/50 hp |
| Input Hp | 1/17 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/4" |
| Keyway Length | 3/4" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Kw | 0.04 kW |
| Length | 16 1/2" |
| Length Less Shaft | 6.9" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 300 RPM |
| Max. Torque | 10 lbs.-in. |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center To Center Length | 1 22/25" |
| Mount Hole Center To Center Width | 3 3/4" |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Speed | 300 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 6000 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.04 kW |
| Output Shaft Dia. | 1/2" |
| Output Shaft Length | 1" |
| Overall Height | 3.98" |
| Overall Length | 8.46" |
| Overall Width | 3 3/4" |
| Overhung Load Capacity | 180 lbs.-ft. |
| Product Datasheet | leeson-m1125006-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Speed | 300 RPM |
| Starting Torque | 10 lbs.-in. |
| Torque | 10 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Operating Voltage | Max. Torque | Gear Ratio | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Efficiency | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125071.00 | 90V DC | 130 lbs.-in. | 35:1 | - | 3 1/2" | 277 lbs.-ft. | 70.8% | 5/8" | €1,047.82 | |
 |
M1125074.00 | 90V DC | 43 lbs.-in. | 11:1 | - | - | - | 70.7% | 5/8" | €1,070.97 | |
 |
M1125004.00 | 90V DC | 36 lbs.-in. | 18:1 | 3/50 hp | - | - | 56.3% | 1/2" | €896.46 | |
 |
M1125069.00 | 90V DC | 280 lbs.-in. | 76:1 | 13/100 hp | - | - | 67.2% | 5/8" | €1,106.22 | |
 |
M1125073.00 | 90V DC | 77 lbs.-in. | 19:1 | 13/100 hp | - | - | 70.7% | 5/8" | €1,176.33 | |
 |
M1115024.00 | 90V DC | 353 lbs.-in. | 336:1 | 1/20 hp | 3 1/2" | 565 lbs.-ft. | 41.6% | 5/8" | €1,325.18 | |
 |
M1135109.00 | 90V DC | 250 lbs.-in. | 50:1 | 1/4 hp | 4" | 315 lbs.-ft. | 65.2% | 3/4" | €1,057.41 |
