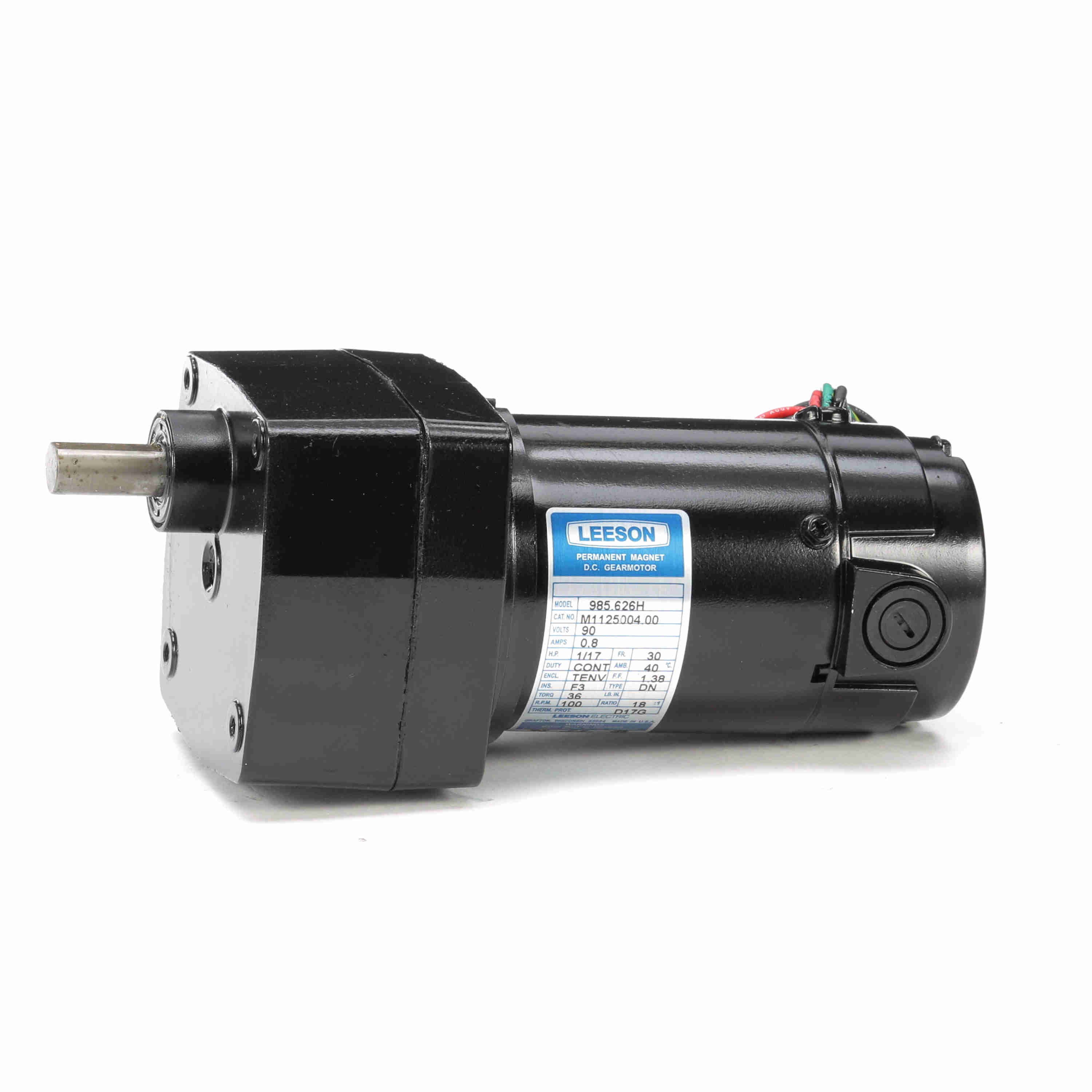

LEESON M1125004.00 985.626H Parallel Shaft Gearmotor, 0.06 HP, 90V, 100 RPM
Item: CR8PMQModel: M1125004.00Cross Ref: 36X883 / 985.626H
7 In Stock
0.06 hp
100 RPM
Ships within 2 days via
5.00% off
€827.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 0.8A |
| Bearing Type | Ope6000 |
| Drive End Bearing Size | 6000 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 56.3% |
| Enclosure Type | Tenv |
| Features | Performance Matched For Continuous Duty |
| Frame Length | 2.99" |
| Frame Size | 30 |
| Frame Suffix | Not Available |
| Full Load Amps | 0.8A |
| Gear Material | Steel |
| Gear Ratio | 18:1 |
| Height | 6.69" |
| Hp | 3/50 hp |
| Input Hp | 3/50 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/8" |
| Keyway Length | 3/4" |
| Keyway Type | Square |
| Keyway Width | 1 1/8" |
| Kw | 0.04 kW |
| Length | 16 1/2" |
| Length Less Shaft | 8.74" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 100 RPM |
| Max. Torque | 36 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Gearmotor |
| Mount Hole Center-to-center Length | 3 3/4" |
| Mount Hole Center-to-center Width | 1 22/25" |
| Mounting Type | Special |
| Nameplate Rpm | 100 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Size | 6000 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.04 kW |
| Output Shaft Dia. | 1/2" |
| Output Shaft Length | 1" |
| Output Shaft Type | Keyed |
| Overall Height | 3 3/4" |
| Overall Length | 8.74" |
| Overall Width | 3 3/4" |
| Product Datasheet | leeson-m1125004-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 100 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Thermal Protection | No |
| Torque | 36 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Shaft Orientation | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125039.00 | Parallel | 180V DC | 35:1 | 51 RPM | 1/8 hp | 3 1/2" | 227 lbs.-ft. | 130 lbs.-in. | €1,007.08 | |
 |
M112528100 | - | - | - | - | - | - | - | - | €1,265.04 |
