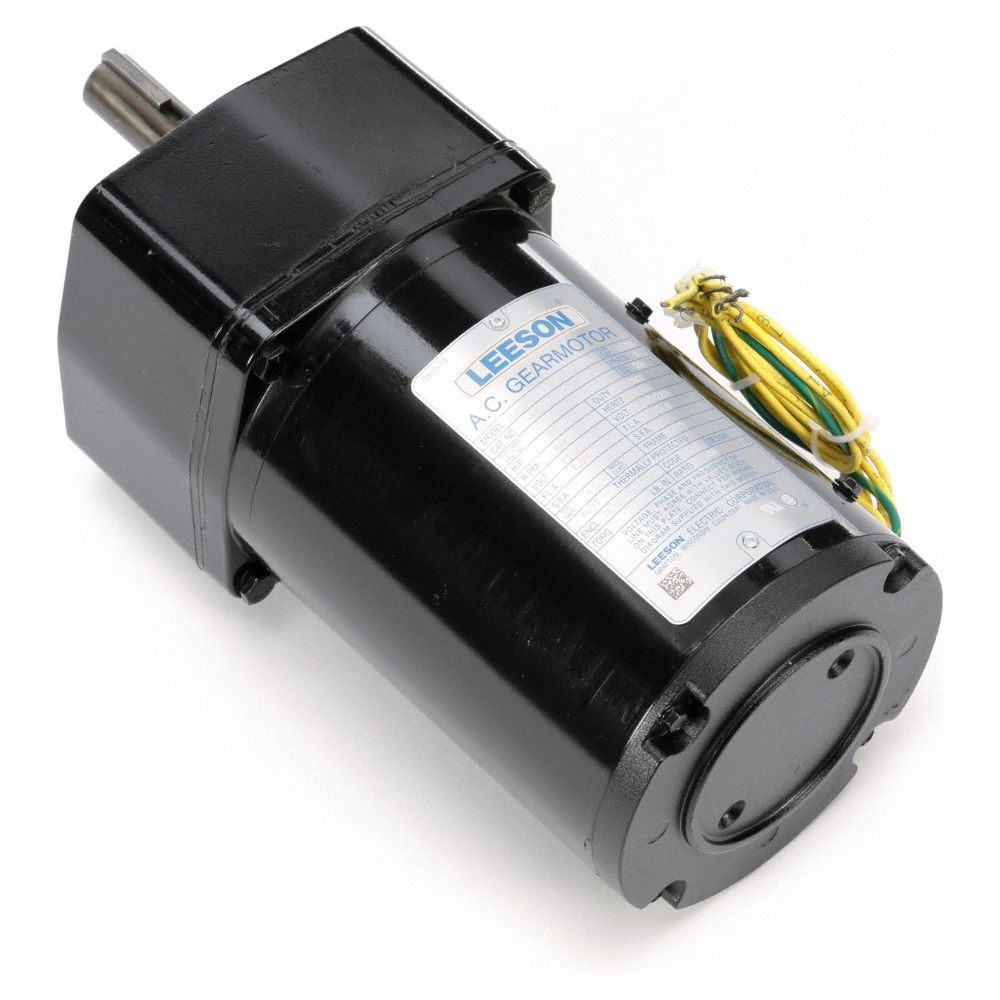

LEESON 096000.00 C42P17NZ1B AC Gearmotor, Parallel, Single Output Shaft, TENV, 5 RPM, 310 In-lb Max Torque, 115V AC
0.08 hp
5 RPM
Get it by Tuesday, Aug 18
5.00% off
€1,354.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Brake Type | None |
| Gear Ratio | 336:1 |
| Max. Torque | 310 lbs.-in. |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Horizontal, Vertical With Shaft Down |
| Nameplate | 0-15 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Height | 4" |
| Overhung Load Capacity | 565 lbs. |
| Product Datasheet | leeson-096000-00.pdf |
| Rotation | CW, CCW |
| Shaft Orientation | Parallel |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Overhung Load Capacity | Nameplate Speed | Full Load Amps | Output Shaft Dia. | Operating Voltage | Max. Torque | Overall Height | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125283.00 | 155 lbs.-ft. | 57 RPM | 0.4A | 1/2" | 208-230V AC | 56 lbs.-in. | 3 3/4" | 208-230V | €1,081.26 | |
 |
M1125284.00 | 155 lbs.-ft. | 142 RPM | 0.4A | 1/2" | 208-230V AC | 24 lbs.-in. | 3 3/4" | 208-230V | €1,036.99 | |
 |
096001.00 | 491 lbs.-ft. | 9 RPM | 1.3/0.65A | 3/4" | 115V AC | 341 lbs.-in. | 5.57" | 110V | €1,010.52 | |
 |
096002.00 | 459 lbs.-ft. | 142 RPM | 1.3/0.65A | 3/4" | 115V AC | 330 lbs.-in. | 5.57" | 110V | €973.01 | |
 |
096003.00 | 374 lbs.-ft. | 19 RPM | 1.3/0.65A | 3/4" | 115V AC | 250 lbs.-in. | 5.57" | 110V | €1,268.87 | |
 |
M1125050.00 | 155 lbs.-ft. | 2 RPM | 0.4A | 1/2" | 115V AC | 100 lbs.-in. | 3.97" | 115V | €1,084.37 | |
 |
M1145023.00 | 407 lbs.-ft. | 15 RPM | 1/0.5A | 5/8" | 115V AC | 250 lbs.-in. | 5.13" | 115V | €1,394.42 |
