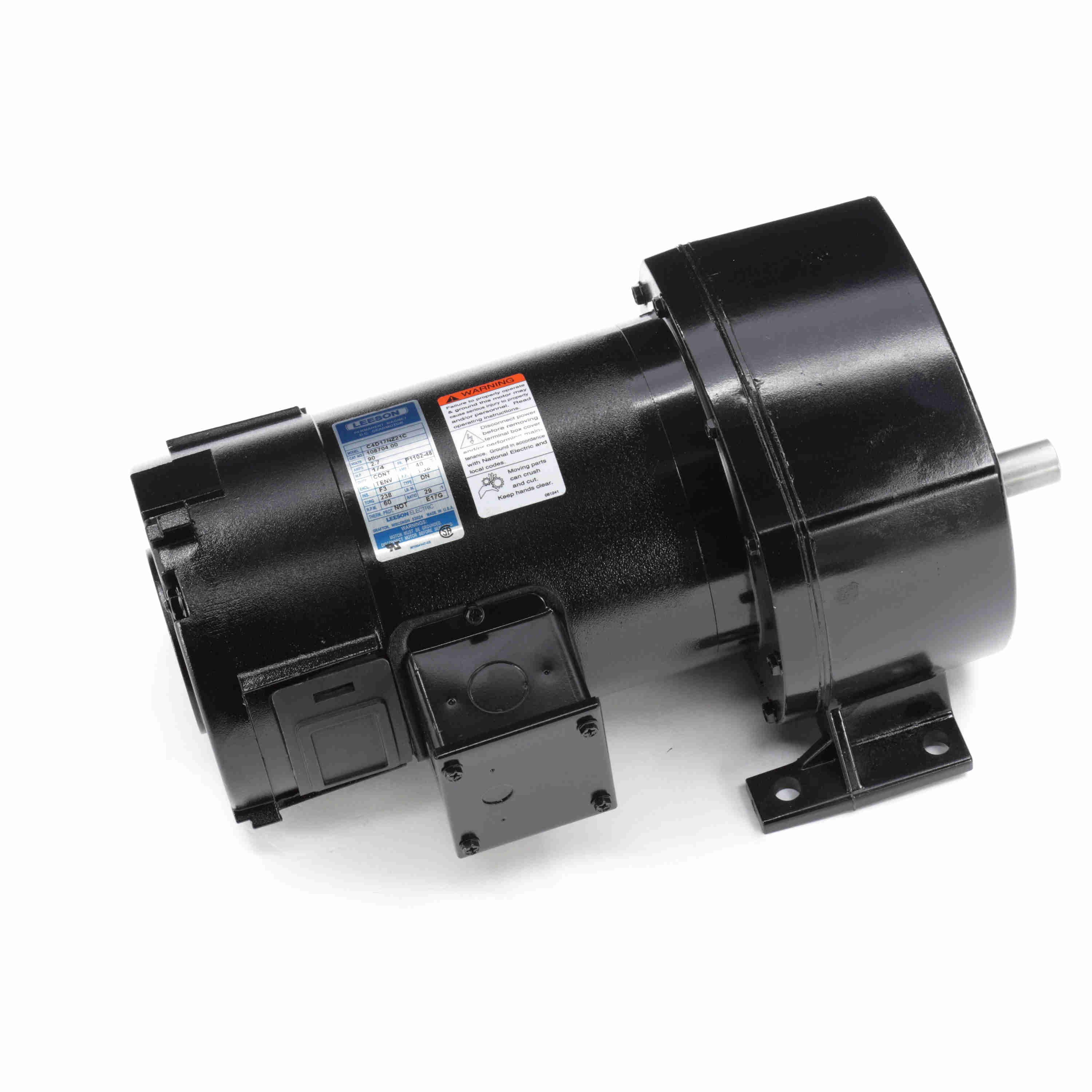

LEESON 108704.00 C4D17NZ21C Parallel Shaft Gearmotor, 0.25 HP, 90V, 60 RPM
Get it by Tuesday, Apr 7
5.00% off
€1,737.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel |
| Amps | 2.7A |
| Base To Center Of Shaft | 3" |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 64.7% |
| Enclosure Type | Tenv |
| Features | Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing |
| Frame Length | 4.97" |
| Frame Type | 48Y |
| Full Load Amps | 2.7A |
| Gear Ratio | 29:1 |
| Height | 10 22/25" |
| Hp | 1/4 hp |
| Input Hp | 1/4 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Length | 1 1/16" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kw | 0.19 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12.61" |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 60 RPM |
| Max. Torque | 238 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Center-to-center Width | 7.13" |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 60 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.65" |
| Overall Length | 14.11" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 650 lbs.-ft. |
| Product Datasheet | leeson-108704-00.pdf |
| Rotation | CW/CCW |
| Rpm | 60 RPM |
| Seal Type | Heavy Duty Industrial |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Standards | Csa, Ul |
| Starting Torque | 238 lbs.-in. |
| Voltage | 90V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Shaft Orientation | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125039.00 | Parallel | 180V DC | 35:1 | 51 RPM | 1/8 hp | 3 1/2" | 227 lbs.-ft. | 130 lbs.-in. | €1,007.08 | |
 |
M112528100 | - | - | - | - | - | - | - | - | €1,265.04 |
