ATLAS COPCO 8411056305 LZB54-L-AR130-11 Vane Air Motor, 1.1 hp Max output, 6800 rpm Max Speed, 0.85 ft-lb Max Torque
Get it by Tuesday, Dec 23
€2,596.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Vane Air Motor |
| Air Consumption At Max Output | 38 CFM |
| Atex | Yes |
| Atex Code Dust | EX II 2 D EX H IIIC T110°C DB |
| Atex Code Gas | EX II 2 G EX H IIC T4 GB |
| Atex Max Temperature | 110°C |
| Built In Brake | No |
| External Parts Finish | Hardened |
| External Parts Material | Aluminum, Steel |
| Free Speed | 12000 RPM |
| Ingress Protection Rating | IP66 |
| Inlet Hose Size | 1/2" |
| Max Ambient Temperature | 40°C |
| Max Output | 1.1 hp |
| Max Working Pressure | 101 psig |
| Min Starting Torque | 1.03 lbs.-ft. |
| Outlet Hose Size | 0.6" |
| Product Datasheet | atlas-copco-8411056305.pdf |
| Rotation Direction | Reversible |
| Shaft Loading Code | G |
| Shaft Type | Keyed |
| Speed At Max Output | 6800 RPM |
| Stall Torque | 1.7 lbs.-ft. |
| Torque At Max Output | 0.85 lbs.-ft. |
| Vane Type | Lubrication Free |
Shipping Info:
| Ship weight (kg) | 2.53 |
| Ship height (cm) | 31.6 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 8 |
| Country of Origin | HU |
Documentation:
Product Variants
| Model | Stall Torque | Price | |
|---|---|---|---|

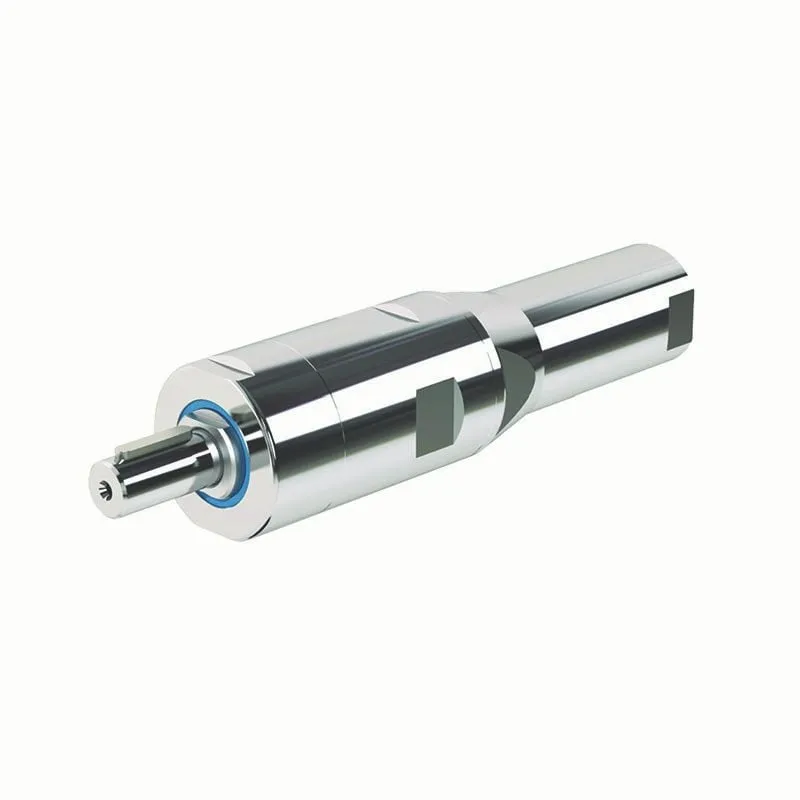

| 8411056057 | 44 lbs.-ft. | €2,878.13 | |
| 8411056065 | 59 lbs.-ft. | €2,878.13 | |

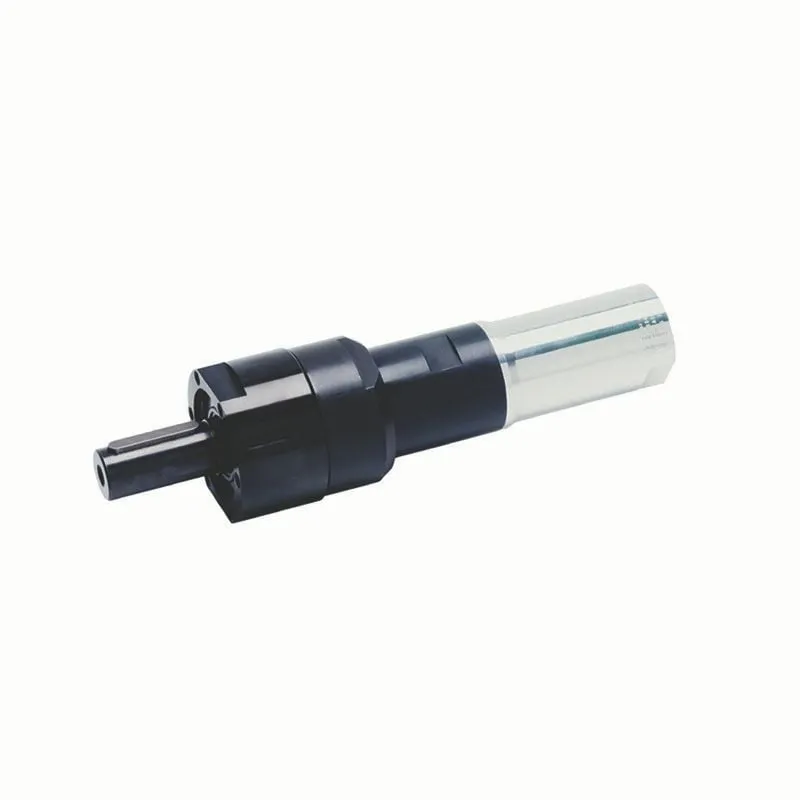

| 8411056073 | 106 lbs.-ft. | €4,153.13 | |
| 8411056081 | 176 lbs.-ft. | €4,153.13 | |
| 8411056099 | 237 lbs.-ft. | €4,153.13 | |
| 8411056347 | 27 lbs.-ft. | €3,075.00 | |
| 8411056354 | 44 lbs.-ft. | €3,075.00 |
