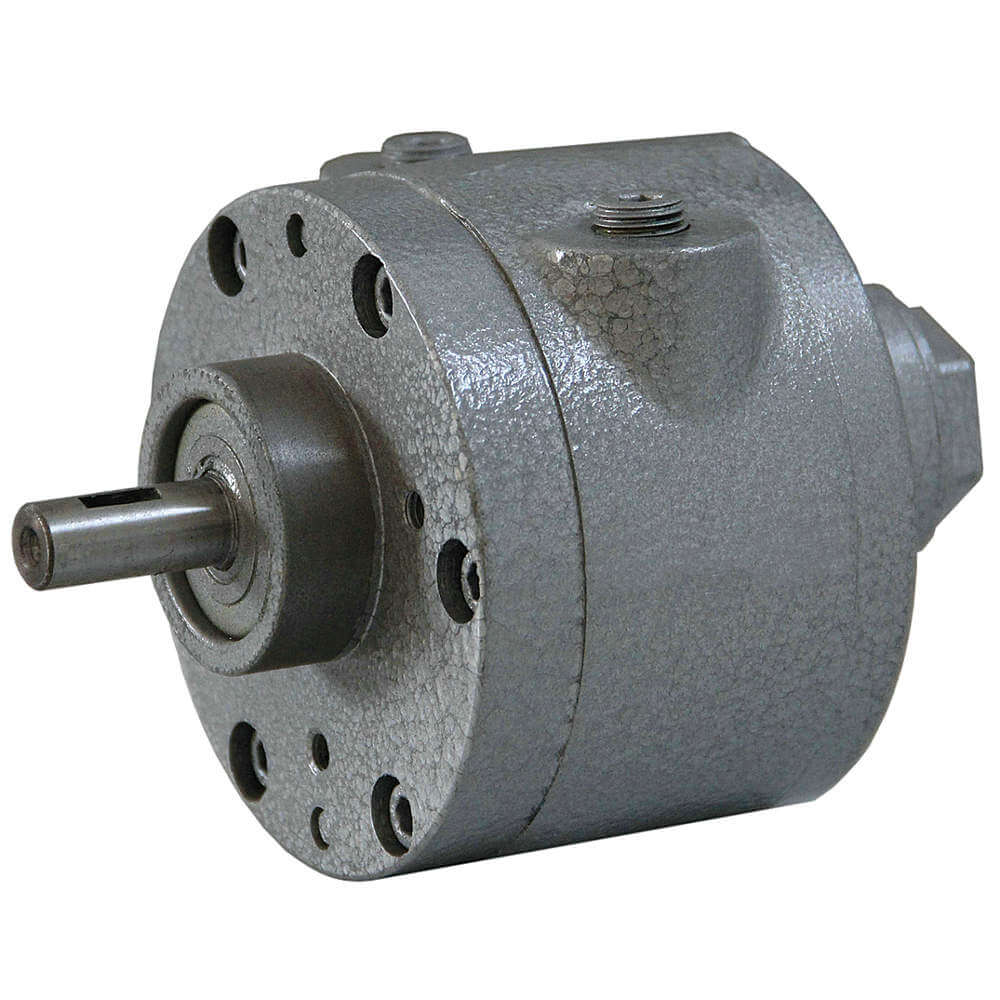

SPEEDAIRE 22UX75 Air Motor 1.7 Hp 78 Cfm Face Mounting
Item: AB7FNKModel: 22UX75
7 In Stock
Ships within 2 days via
10.00% off
€335.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Motor |
| Air Consumption | 78 CFM |
| Air Inlet Port | 1/4" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 78 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 3.94" |
| Housing Material | Aluminum, Cast Iron |
| Housing Material Finish | Painted |
| Hp | 1 7/10 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | 1/4" |
| Keyway Length | 1/2" |
| Keyway Type | Woodruff |
| Keyway Width | 1/8" |
| Length | 5.87" |
| Length Less Shaft | Not Applicable |
| Manufacturers Warranty Length | 1 yr. |
| Material | Aluminum, Cast Iron |
| Max. Air Flow | 78 CFM |
| Max. Air Pressure | 100 psi |
| Maximum Ambient Temperature | 250°F |
| Maximum Flow Rate | 78 CFM |
| Maximum Operating Pressure | 100 psi |
| Minimum Ambient Temperature | 0°F |
| Minimum Flow Rate | 5.28 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mounting | Face |
| Mounting Orientation | Any Angle |
| Mounting Type | Face |
| No Load Speed | 3000 RPM |
| Number Of Vanes | 4 |
| Output Power | 1 7/10 hp |
| Output Power @ 25% Maximum Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Diameter | 4" |
| Overall Height | 4" |
| Overall Length | 5 3/4" |
| Overall Width | 4" |
| Rotation | CW/CCW |
| Rpm @ Max. Torque | 300 |
| Rpm @ Max. Torque | 300 RPM |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Starting Torque | Not Applicable |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max Pressure | 36 lbs.-in. |
| Type | Rotary Vane |
| Weight | 7.72 lbs. |
| Width | 3.94" |
Shipping Info:
| Ship weight (kg) | 3.98 |
| Ship height (cm) | 10.01 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 10.01 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | No Load Speed | Shaft Dia. | Shaft Length | Rotation | Housing Material | Torque @ Max Pressure | Max. Air Pressure | Cfm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22UX41 | 10000 RPM | 3/8" | 1 1/8" | CW | Cast Iron | 5.25 lbs.-in. | 80 psi | 27 CFM | €294.69 | |
 |
22UX42 | 10000 RPM | 3/8" | 1 1/8" | CW/CCW | Aluminum, Cast Iron | 5.25 lbs.-in. | 80 psi | 27 CFM | €268.60 | |
 |
22UX43 | 6000 RPM | 1/2" | 1 1/8" | CCW | Aluminum, Cast Iron | 19.5 lbs.-in. | 100 psi | 30 CFM | €364.55 | |
 |
22UX44 | 3000 RPM | 5/8" | 2.06" | Reversible | Aluminum, Cast Iron | - | 100 psi | 30 CFM | €474.05 | |
 |
22UX45 | 3000 RPM | 5/8" | 1 7/8" | CW/CCW | Aluminum, Cast Iron | 36 lbs.-in. | 100 psi | 75 CFM | €415.28 | |
 |
22UX46 | 3000 RPM | 5/8" | 2" | CW/CCW | Aluminum, Cast Iron | 36 lbs.-in. | 100 psi | 72 CFM | €364.48 | |
 |
22UX47 | 3000 RPM | 5/8" | 1 3/8" | CW/CCW | Aluminum, Cast Iron | 84 lbs.-in. | 100 psi | 130 CFM | €495.90 |
