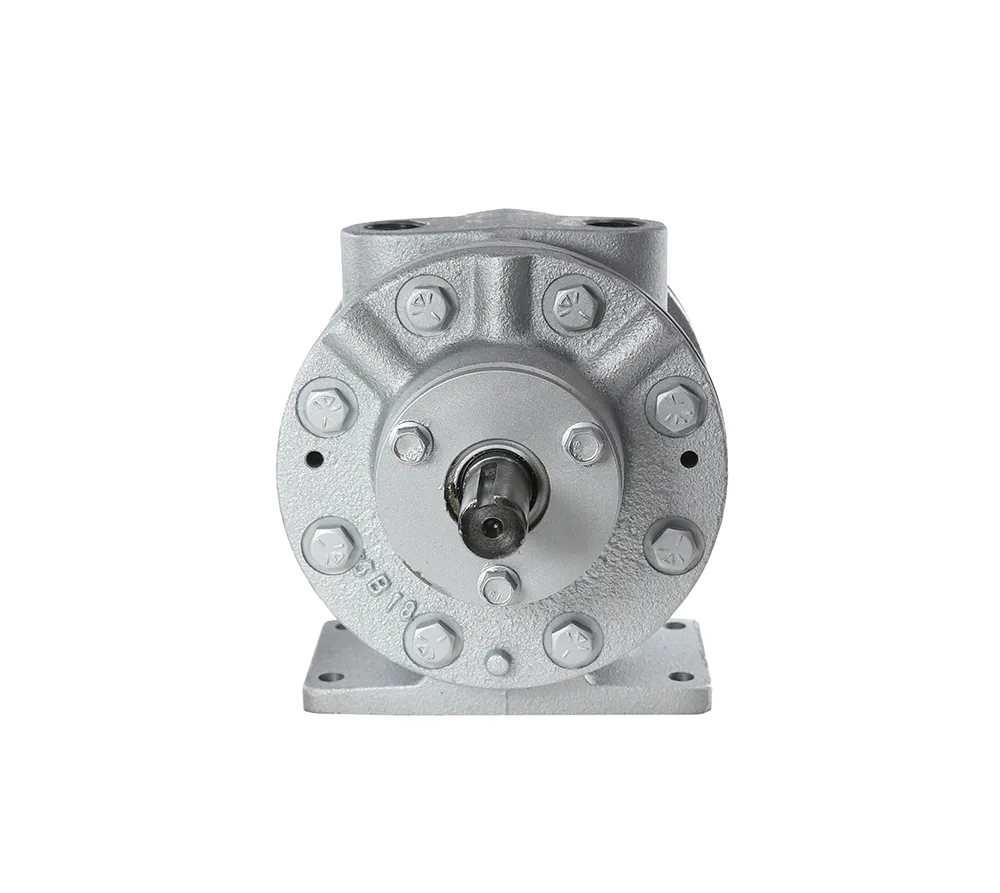

GAST 8AM-NRV-5B Air Motor, 5 HP, 132 in-lb Torque, 2,500 RPM, 175 cfm, Face, 1/2 in NPT
Get it by Tuesday, Dec 23
10.00% off
€1,120.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Air Consumption | 175 CFM |
| Air Inlet Port | 1/2" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 5 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Key Type | M30-KEYSQ 1.0 |
| Keyway Depth | 1/8" |
| Keyway Length | 1 3/8" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length Less Shaft | 6.95" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Air Consumption | 175 CFM |
| Max. Flow Rate | 175 CFM |
| Max. Pressure | 101.53 psi |
| Max. Sound Level | 105 dBA |
| Max. Speed | 2500 RPM |
| Max. Torque | 185 lbs.-in. |
| Maximum Ambient Temperature | 248°F |
| Maximum Operating Pressure | 100 psi |
| Minimum Ambient Temperature | 34°F |
| Minimum Flow Rate | 20 CFM |
| Motor Design | Air |
| Mount | Face |
| Mount Hole Center-to-center Length | 3 7/8" |
| Mount Hole Center-to-center Width | 3 7/8" |
| Mount Type | Face |
| Mounting Orientation | Any Angle |
| No Load Speed | 2500 RPM |
| Number Of Vanes | 4 |
| Output Power | 5 hp |
| Output Shaft Type | Keyed |
| Outside Diameter | 6 1/2" |
| Overall Height | 5 1/2" |
| Overall Length | 8 1/2" |
| Overall Width | 5 1/2" |
| Port Size | 1/2" |
| Product Datasheet | gast-8am-nrv-5b.pdf |
| Rotation | Reversible |
| Series | 8AM Series |
| Shaft Diameter | 3/4" |
| Shaft Length | 1 1/2" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Shaft Size | 3/4" |
| Standards | Atex |
| Starting Torque | 150 lbs.-in. |
| Starting Torque @ 80psi | 117 lbs.-in. |
| System Of Measurement | Imperial |
| Torque @ Max Pressure | 132 lbs.-in. |
| Torque Max. Speed | 132 lbs.-in. |
| Type | NPT |
| Vanes | 4 |
| Weight | 28 lbs. |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Rotation | Shaft Length | Max. Torque | Mount Hole Center-to-center Length | Mount Hole Center-to-center Width | Overall Length | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8AM-FRV-75 | Clockwise/Counter Clockwise | 1 1/2" | 132 lbs.-in.. | Not Applicable | Not Applicable | - | - | - | - | RFQ
|
 |
8AM-NRV-32A | Reversible | 2 1/8" | 185 lbs.-in. | 5 7/8" | 5 7/8" | 9 1/2" | 6 1/2" | 6 1/2" | €1,605.96 | |
|
8AM-FRV-30A | Reversible | 1 1/2" | 185 lbs.-in. | Not Applicable | Not Applicable | 8 1/2" | 6" | 5 1/2" | €1,408.28 | |
|
8AM-NRV-28A | Reversible | 2 1/8" | 185 lbs.-in. | 5 7/8" | 5 7/8" | 9 1/2" | 6 1/2" | 6 1/2" | €1,170.19 | |
|
8AM-FRV-2B | Reversible | - | 185 lbs.-in. | - | - | - | - | - | €869.88 |
