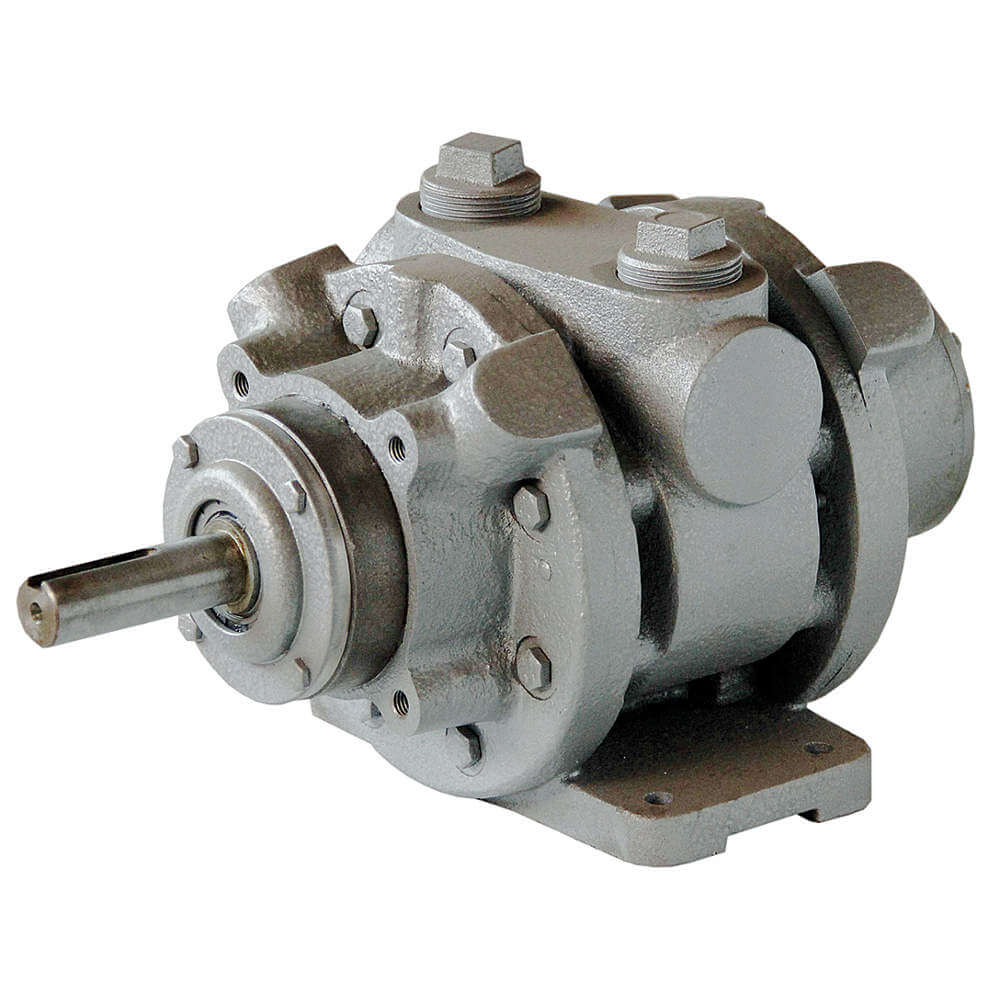

SPEEDAIRE 22UX52 Air Motor 9.00 Hp 280 Cfm Foot Mounting
Get it by Monday, Dec 29
10.00% off
€1,000.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Air Consumption | 275 CFM |
| Air Inlet Port | 1 1/4" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 280 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 7 7/25" |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 9 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | 1/4" |
| Keyway Length | 2" |
| Keyway Type | Square |
| Keyway Width | 1/4" |
| Length | 14.13" |
| Length Less Shaft | Not Applicable |
| Manufacturers Warranty Length | 1 yr. |
| Material | Cast Iron |
| Max. Air Flow | 275 CFM |
| Max. Air Pressure | 100 psi |
| Max. Speed | 2000 RPM |
| Maximum Ambient Temperature | 250°F |
| Maximum Flow Rate | 275 CFM |
| Maximum Operating Pressure | 100 psi |
| Minimum Ambient Temperature | 0°F |
| Minimum Flow Rate | 33.76 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mount Type | Foot, Face |
| Mounting | Face, Foot |
| Mounting Orientation | Any Angle |
| Mounting Type | Face, Foot |
| No Load Speed | 2000 RPM |
| Number Of Vanes | 6 |
| Output Power | 9 1/2 hp |
| Output Power @ 25% Maximum Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Diameter | 7 1/4" |
| Overall Height | 7 1/4" |
| Overall Length | 14 1/8" |
| Overall Width | 8" |
| Rotation | CW/CCW |
| Rpm @ Max. Torque | 500 |
| Rpm @ Max. Torque | 500 RPM |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 1/2" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Starting Torque | Not Applicable |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max Pressure | 290 lbs.-in. |
| Type | Rotary Vane |
| Width | 8.03" |
Shipping Info:
| Ship weight (kg) | 40.05 |
| Ship height (cm) | 18.49 |
| Ship length (cm) | 35.79 |
| Ship width (cm) | 20.4 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Torque @ Max Pressure | No Load Speed | Shaft Dia. | Shaft Length | Cfm | Overall Length | Height | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

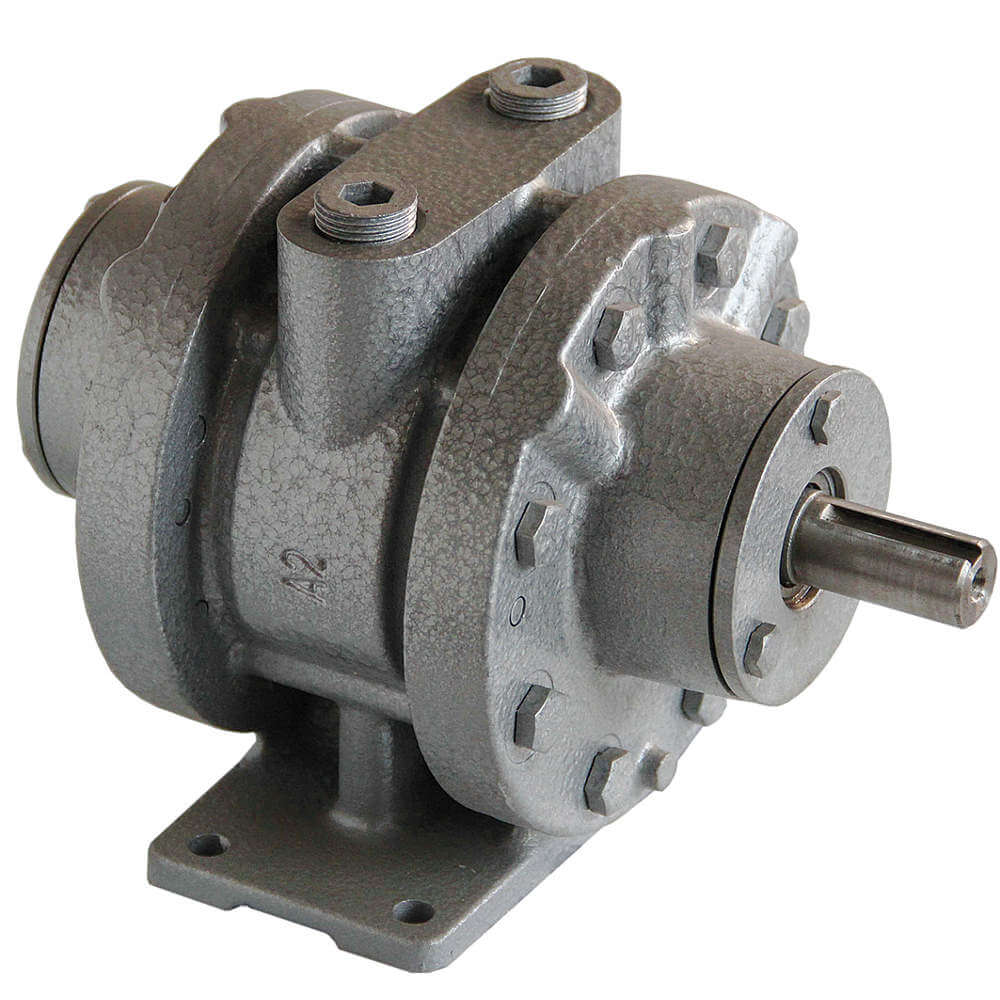

22UX50 | 132 lbs.-in. | 2500 RPM | 3/4" | 1 1/2" | 175 CFM | 8 1/2" | 6 1/25" | 6" | €730.11 | |
 |
22UX51 | 132 lbs.-in. | 2500 RPM | 7/8" | 2 1/8" | 175 CFM | 9 1/2" | 6 1/2" | 6 1/2" | €528.54 | |
 |

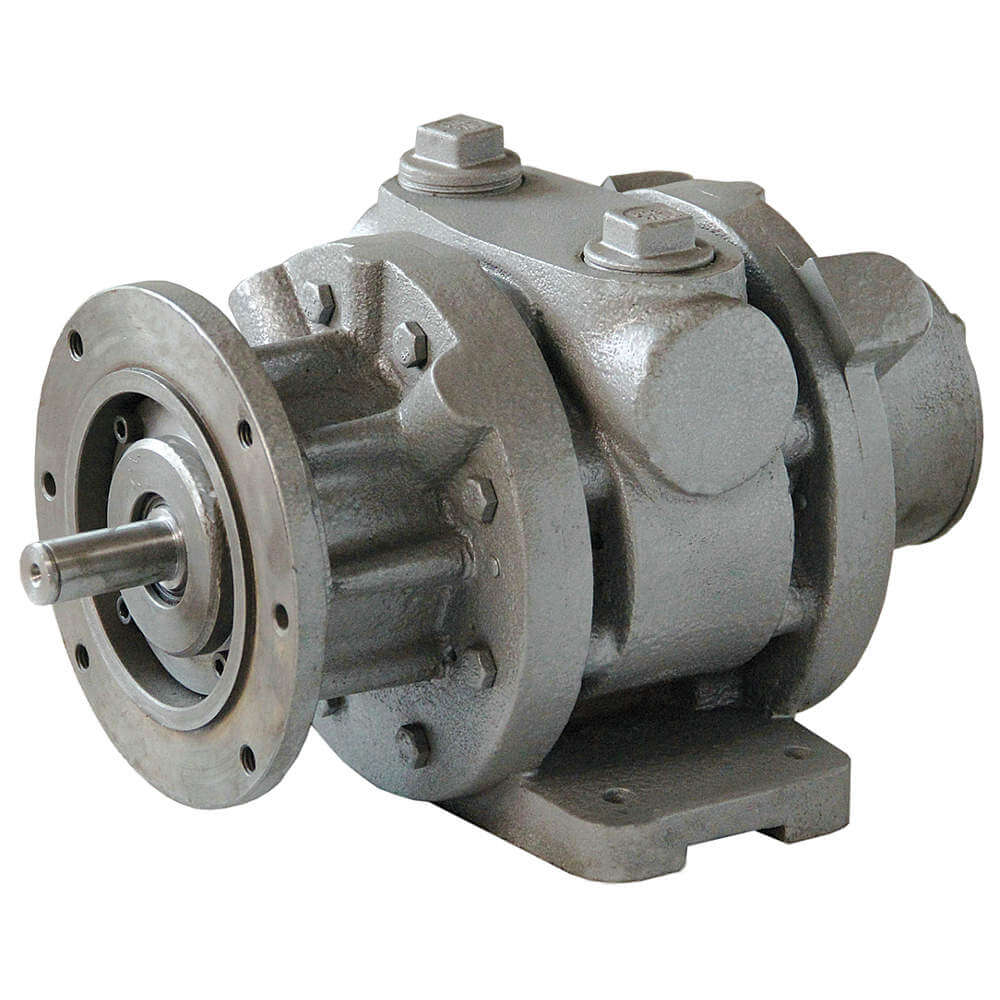

22UX53 | 290 lbs.-in. | 2000 RPM | 7/8" | 2 1/8" | 280 CFM | 13 5/8" | 7 7/25" | 7 1/4" | €1,202.40 | |
 |

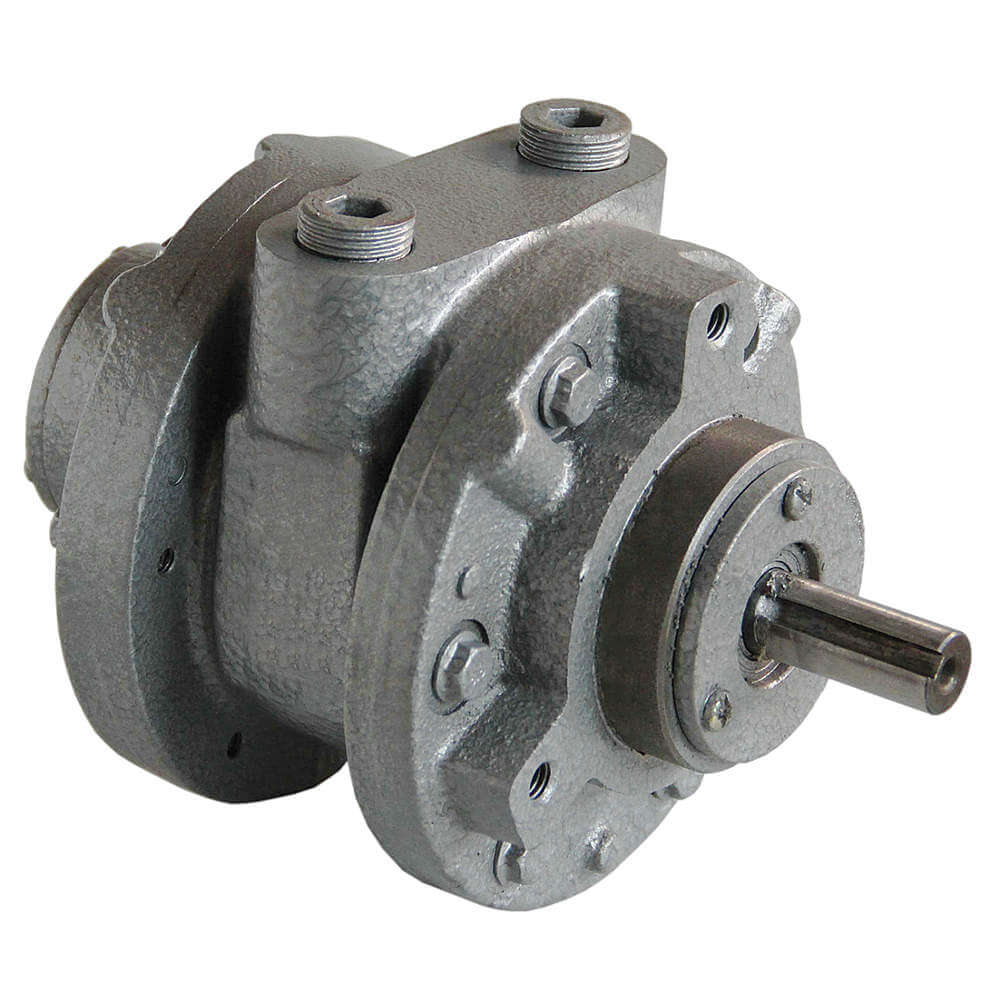

22UX77 | 84 lbs.-in. | 3000 RPM | 5/8" | 1 3/8" | 128 CFM | 7 3/8" | 5 1/25" | 5" | €455.09 |
