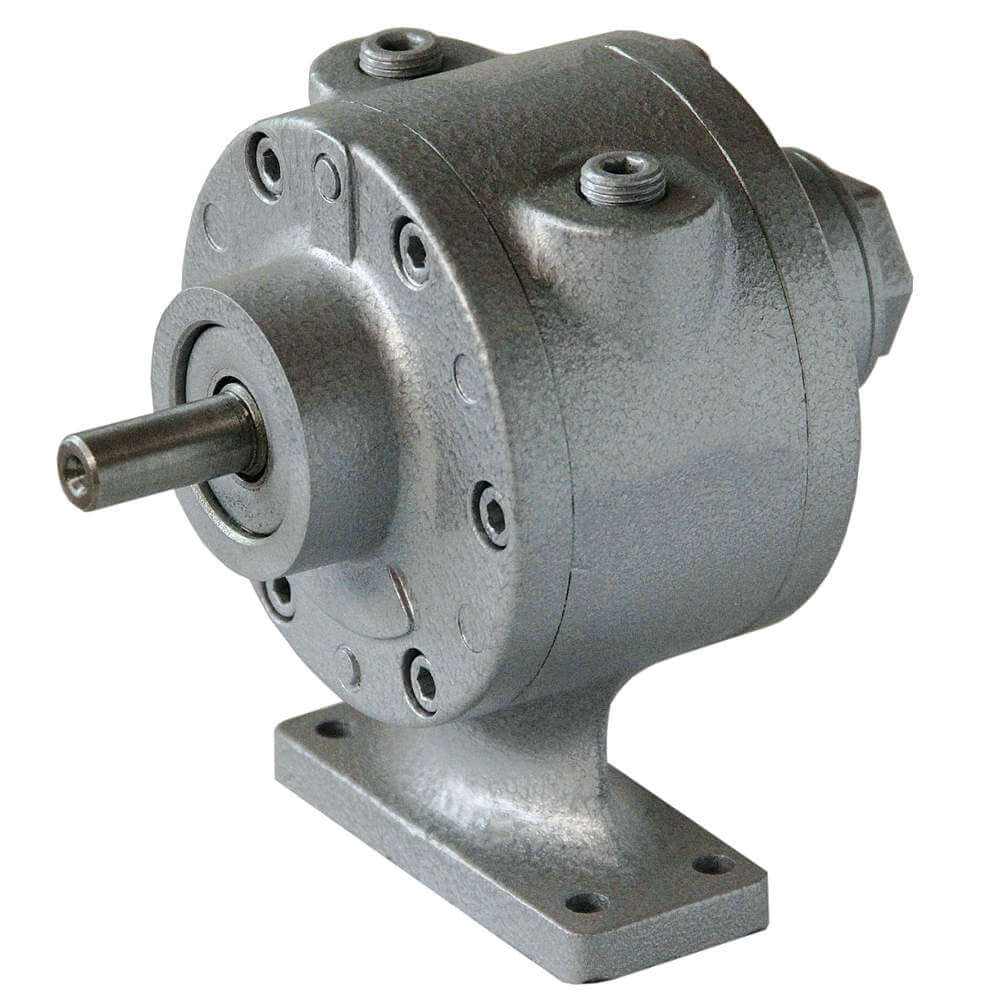

SPEEDAIRE 22UX74 Air Motor 1.7 Hp 78 Cfm
Item: AB7FNJModel: 22UX74
7 In Stock
Ships within 2 days via
5.00% off
€428.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Motor |
| Air Consumption | 78 CFM |
| Air Inlet Port | 1/4" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 78 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 5.35" |
| Housing Material | Aluminum, Cast Iron |
| Housing Material Finish | Painted |
| Hp | 1 7/10 hp |
| Included | Muffler |
| Inlet Gender | Female |
| Keyway Depth | 1/4" |
| Keyway Length | 1/2" |
| Keyway Type | Woodruff |
| Keyway Width | 1/8" |
| Length | 5.87" |
| Length Less Shaft | Not Applicable |
| Material | Aluminum, Cast Iron |
| Max. Air Pressure | 100 psi |
| Max. Airflow | 78 CFM |
| Max. Ambient Temp. | 250°F |
| Max. Flow Rate | 78 CFM |
| Max. Operating Pressure | 100 psi |
| Min. Ambient Temp. | 0°F |
| Min. Flow Rate | 5.28 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount | Foot |
| Mount Hole Center To Center Length | Not Applicable |
| Mount Hole Center To Center Width | Not Applicable |
| Mounting Orientation | Any Angle |
| No Load Speed | 3000 RPM |
| No. Of Vane | 4 |
| Output Power | 1 7/10 hp |
| Output Power @ 25% Max. Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Dia. | 4" |
| Overall Height | 5 3/8" |
| Overall Length | 5 7/8" |
| Overall Width | 3 3/4" |
| Rotation | CW, CCW |
| Rpm @ Max. Torque | 300 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Speed @ Max. Torque | 300 RPM |
| Starting Torque | Not Applicable |
| System Of Measurement | Imperial |
| Temp. | 250°F |
| Torque @ Max. Pressure | 36 lbs.-in. |
| Type | Rotary Vane |
| Width | 3.74" |
Shipping Info:
| Ship weight (kg) | 4.01 |
| Ship height (cm) | 13.59 |
| Ship length (cm) | 14.94 |
| Ship width (cm) | 9.5 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Mount | Housing Material | Shaft Length | Shaft Dia. | No Load Speed | Overall Width | Overall Height | Keyway Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
22UX41 | Hub | Cast Iron | 1 1/8" | 3/8" | 10000 RPM | 2 1/2" | 2 1/4" | 0.81" | €280.91 | |
 |
22UX42 | Hub | Aluminum, Cast Iron | 1 1/8" | 3/8" | 10000 RPM | 3" | 2 1/2" | 0.81" | €255.97 | |
 |
22UX43 | Hub | Aluminum, Cast Iron | 1 1/8" | 1/2" | 6000 RPM | 4" | 4" | 1" | €329.23 | |
 |
22UX44 | Flange | Aluminum, Cast Iron | 2.06" | 5/8" | 3000 RPM | 6 3/5" | 6 3/5" | 0.19" | €430.42 | |
 |
22UX45 | Face | Aluminum, Cast Iron | 1 7/8" | 5/8" | 3000 RPM | 4 3/8" | 3 3/4" | 1 3/8" | €384.11 | |
 |
22UX46 | Flange | Aluminum, Cast Iron | 2" | 5/8" | 3000 RPM | 6 5/8" | 6 5/8" | 1 3/8" | €354.78 | |
 |
22UX47 | Foot | Aluminum, Cast Iron | 1 3/8" | 5/8" | 3000 RPM | 5" | 5 7/8" | 1 1/4" | €551.09 |
