GAST 6AM-FRV-5A Air Motor 5 Hp, 2500 Rpm
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€706.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Air Consumption | 130 CFM |
| Air Inlet Port | 1/2" |
| Air Inlet Port Type | NPT |
| Alternate Part Number | 6AM-FRV-62 |
| Bearing Protection | Not Applicable |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 4 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Key Type | M30-KEYSQ 1 1/4 |
| Keyway Depth | 1/8" |
| Keyway Length | 1 3/8" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length Less Shaft | 6.11" |
| Manufacturers Warranty Length | 1 yr. |
| Max Sound Level | 90 dBA |
| Max. Air Consumption | 128 CFM |
| Max. Flow Rate | 128 CFM |
| Max. Pressure | 101.53 psi |
| Max. Speed | 3000 RPM |
| Max. Torque | 115 lbs.-in. |
| Maximum Ambient Temperature | 248°F |
| Maximum Flow Rate | 130 CFM |
| Maximum Operating Pressure | 100 psi |
| Minimum Ambient Temperature | 34°F |
| Minimum Flow Rate | 11 CFM |
| Motor Design | Air |
| Mount | Foot |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mount Type | Foot |
| Mounting Orientation | Any Angle |
| No Load Speed | 3000 RPM |
| Number Of Vanes | 4 |
| Output Power | 4 hp |
| Output Shaft Type | Keyed |
| Outside Diameter | 5" |
| Overall Height | 6" |
| Overall Length | 7 1/2" |
| Overall Width | 5" |
| Port Size | 1/2" |
| Port Type | NPT |
| Power | 4 kp |
| Product Datasheet | gast-6am-frv-5a.pdf |
| Rotation | Reversible |
| Rpm @ Max. Torque | 300 rpm |
| Series | 6AM Series |
| Shaft Diameter | 5/8" |
| Shaft Length | 1 3/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Shaft Size | 0.63" |
| Standards | Atex |
| Starting Torque | 62 lbs.-in. |
| Starting Torque @ 80psi | 61 lbs.-in. |
| System Of Measurement | Imperial |
| Torque @ Max Pressure | 84 lbs.-in. |
| Torque Max Speed | 9.49 N-m |
| Torque Max. Speed | 84 lbs.-in. |
| Type | NPT |
| Vanes | 4 |
| Weight | 21 lbs. |
Shipping Info:
| Ship weight (kg) | 7.02 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Details:
Gast 6AM-FRV-5A air motor is used in industrial settings where pneumatic power is required for driving conveyor systems, operating pumps, agitating fluids and powering various machinery. This air motor is chosen for its durability, efficiency and ability to deliver consistent power in challenging environments, making it an essential component in numerous manufacturing and automation processes.
Features:
- Gast 6AM-FRV-5A air motor features a maximum air consumption of 128 cfm, providing substantial pneumatic power.
- This air motor has a max power of 4 hp (2.98 kW), ensuring high-performance operation.
- It can be operated at pressures up to 7 bar (101.53 psi), making it suitable for various industrial applications.
- This air motor has 4 vanes, contributing to its efficiency and reliability.
Frequently Asked Questions:
Q. What is the starting torque of Gast 6AM-FRV-5A air motor at 80 psi?
A. The starting torque at 80 psi is 61 lb-inch.
Q. What kind of maintenance is required to keep an air motor operating smoothly?
A. Regular maintenance may include inspections, lubrication and component checks.
Q. What are the vanes in an air motor and how do they affect performance?
A. Vanes are internal components that are pushed by compressed air to drive the rotor and generate rotational power.
Documentation:
Product Variants
| Model | Shaft Length | Housing Material | Overall Length | Overall Height | Overall Width | Length Less Shaft | Mount Hole Center-to-center Length | Mount Hole Center-to-center Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

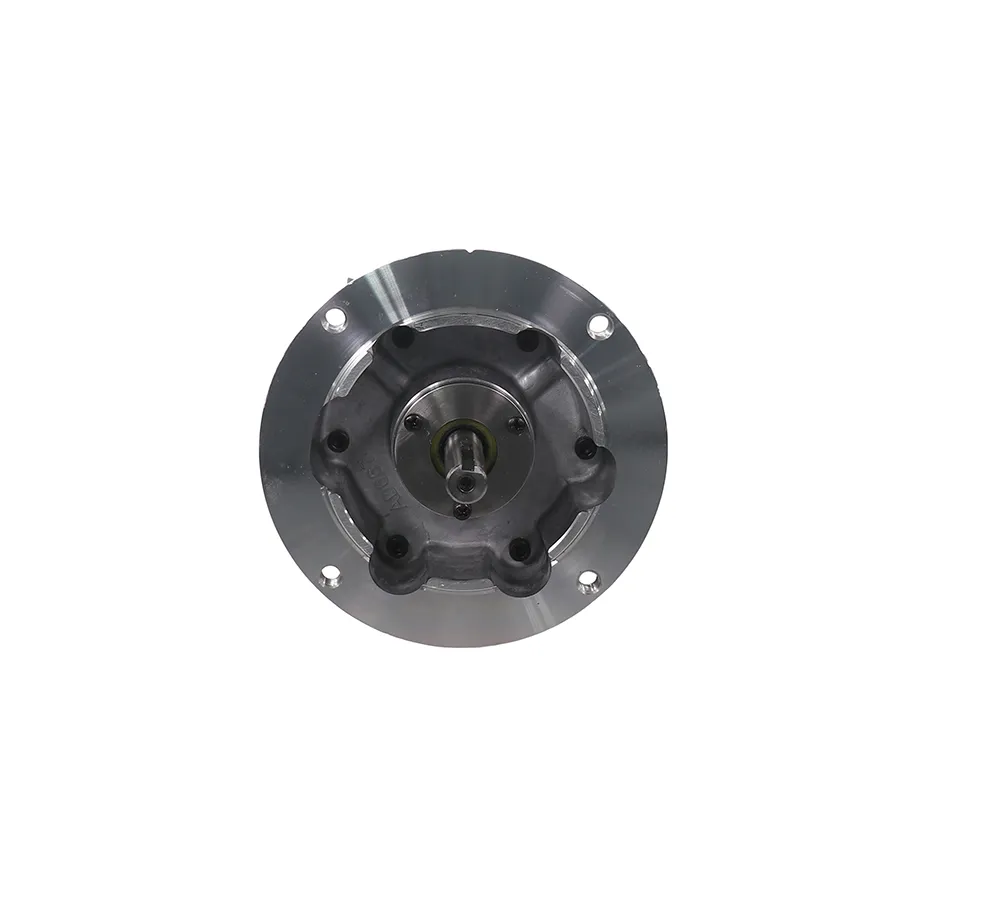

| 6AM-NRV-11A | 2" | Aluminum, Cast Iron | 8 1/4" | 6 1/2" | 6 1/2" | 6.23" | 5 7/8" | 5 7/8" | €831.19 | |

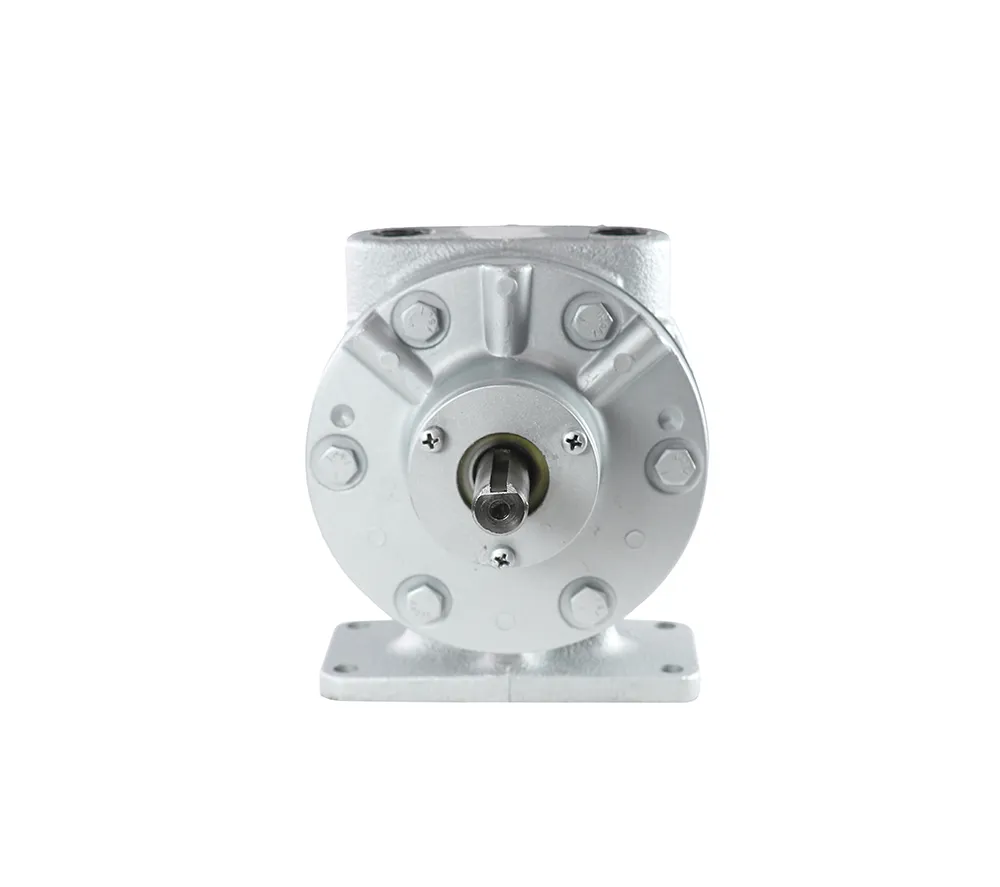

| 6AM-NRV-29A | 1 3/8" | Cast Iron | 7 1/2" | 5" | 5" | 6.11" | 4" | 4" | €1,056.97 | |
| 6AM-FRV-23A | 1 3/8" | Cast Iron | 7 1/2" | 6" | 5" | 6.11" | Not Applicable | Not Applicable | €1,029.19 | |
| 6AM-NRV-7A | 1 3/8" | Cast Iron | 7 1/2" | 5" | 5" | 6.11" | 4" | 4" | €900.76 | |
| 6AM-NRV-22A | 2" | Aluminum, Cast Iron | 8 1/4" | 6 1/2" | 6 1/2" | 6.23" | 5 7/8" | 5 7/8" | €1,062.72 |
