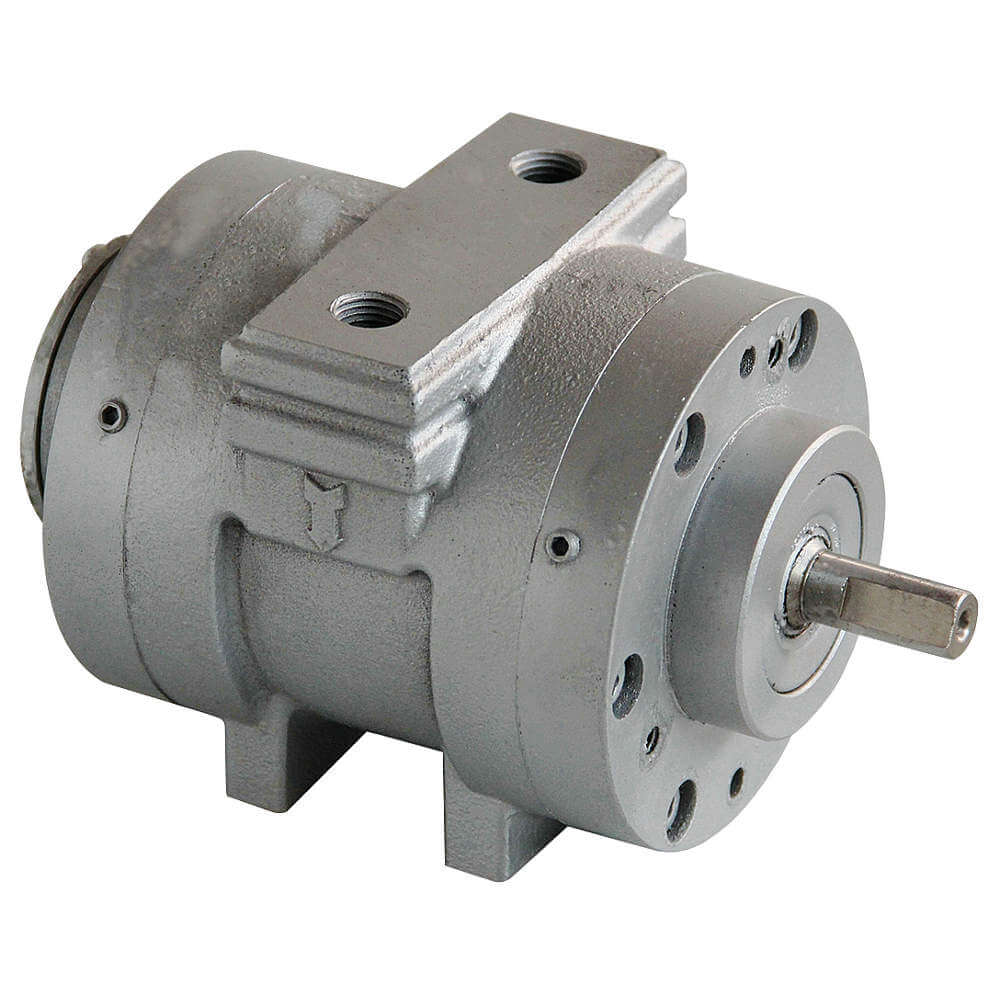

SPEEDAIRE 22UX63 Air Motor, 2.5 hp, 78.75 in-lb Torque, 3, 000 RPM, 68 cfm, Foot/Hub, 1/2 Inch NPT, CW
Get it by Wednesday, Feb 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€393.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Motor |
| Air Consumption | 68 CFM |
| Air Inlet Port | 1/2" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Cfm | 70 CFM |
| Color | Gray |
| Finish | Gray |
| Height | 4.19" |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 2 1/2 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Keyway Depth | 1/8" |
| Keyway Length | 1 3/8" |
| Keyway Length | 1.56" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length | 8" |
| Length Less Shaft | Not Applicable |
| Manufacturers Warranty Length | 1 yr. |
| Material | Cast Iron |
| Max. Air Flow | 68 CFM |
| Max. Air Pressure | 80 psi |
| Max. Speed | 2000 RPM |
| Maximum Ambient Temperature | 250°F |
| Maximum Flow Rate | 68 CFM |
| Maximum Operating Pressure | 80 psi |
| Minimum Ambient Temperature | 0°F |
| Minimum Flow Rate | 13.72 CFM |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount Hole Center-to-center Length | Not Applicable |
| Mount Hole Center-to-center Width | Not Applicable |
| Mounting | Foot, Hub |
| Mounting Orientation | Any Angle |
| Mounting Type | Foot, Hub |
| No Load Speed | 3000 RPM |
| Number Of Vanes | 4 |
| Output Power | 2 1/2 hp |
| Output Power @ 25% Maximum Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Diameter | 4" |
| Overall Height | 4 1/4" |
| Overall Length | 8" |
| Overall Width | 4" |
| Rotation | CW |
| Rpm @ Max. Torque | 500 |
| Rpm @ Max. Torque | 500 RPM |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/8" |
| Shaft Material | Steel |
| Shaft Orientation | Inline |
| Starting Torque | Not Applicable |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max Pressure | 78.75 lbs.-in. |
| Type | Rotary Vane |
| Width | 3.94" |
Shipping Info:
| Ship weight (kg) | 7.19 |
| Ship height (cm) | 10.64 |
| Ship length (cm) | 20.24 |
| Ship width (cm) | 10.01 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Torque @ Max Pressure | Shaft Dia. | Shaft Length | Rotation | No Load Speed | Cfm | Overall Length | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

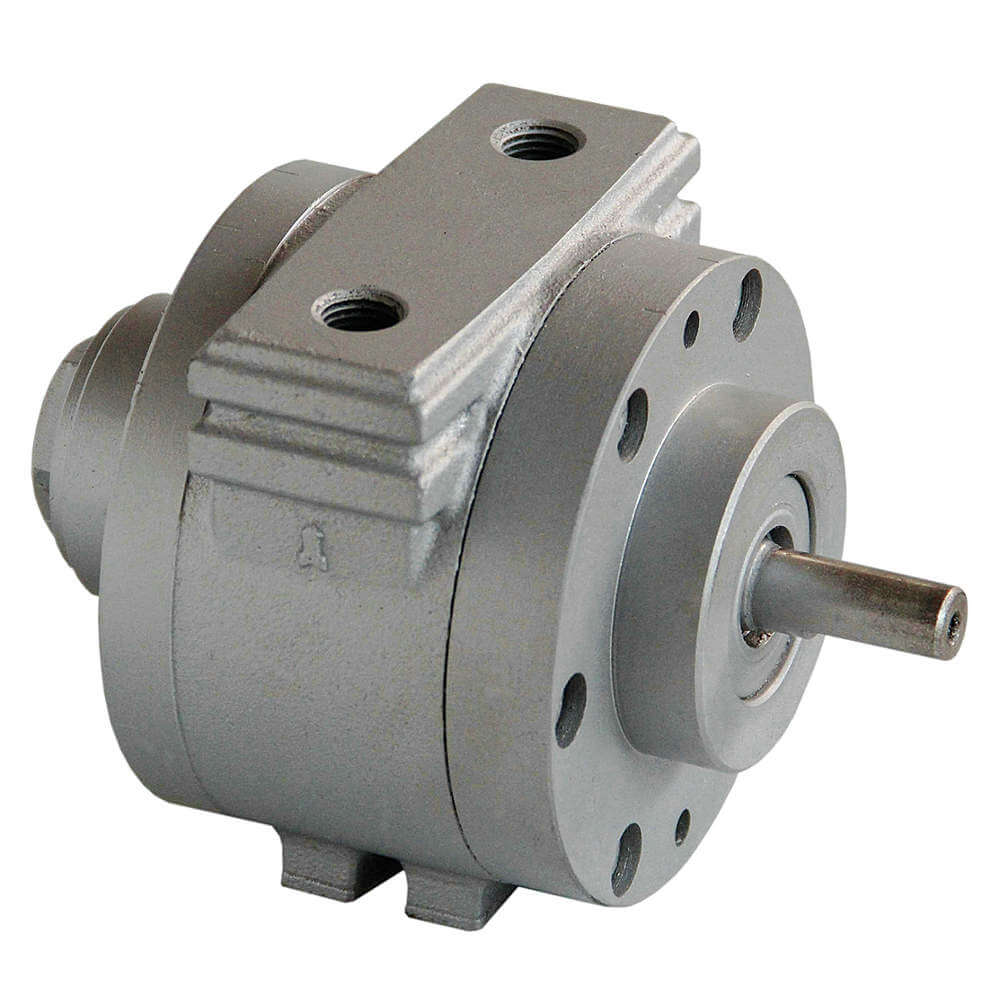

22UX58 | Counter Clockwise | 1 1/8" | 30 CFM | 21/50 hp | D Shaft | 1/4" | 4 1/8" | 5 7/8" | €403.98 | |
 |

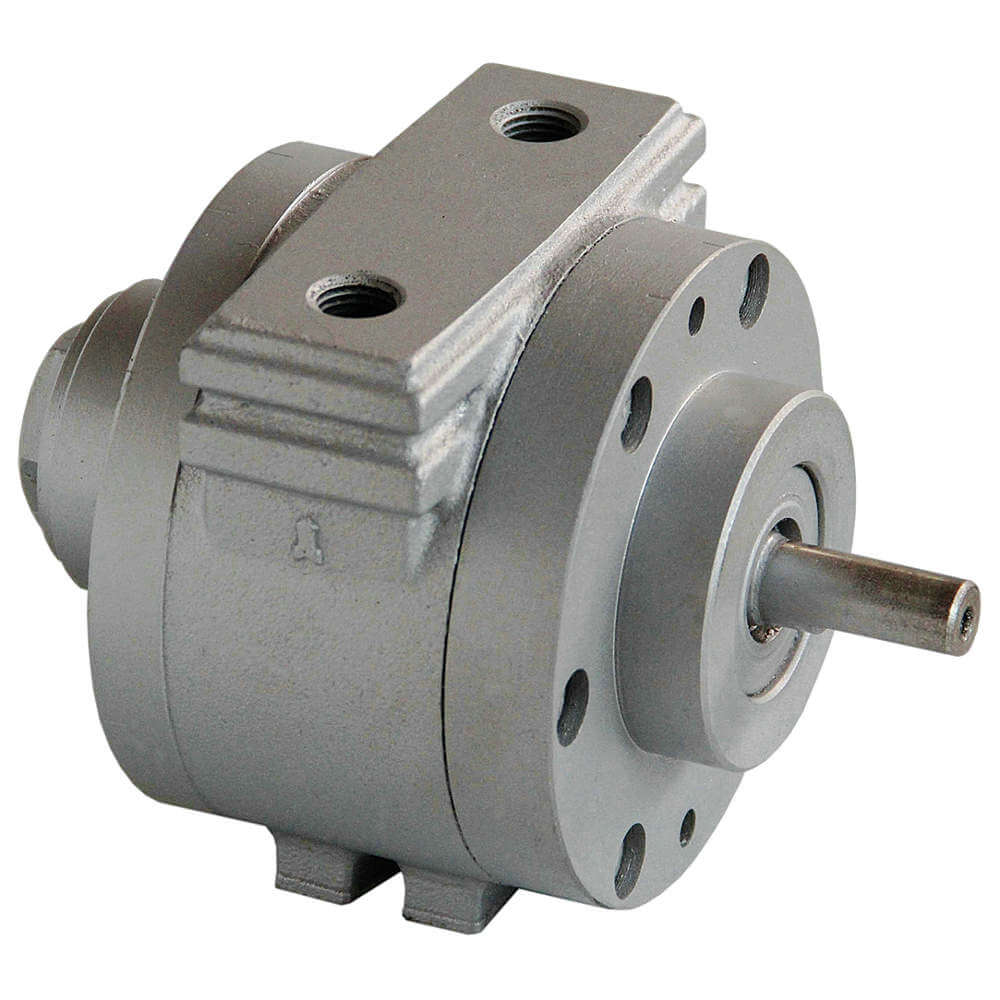

22UX59 | Clockwise | 1 1/8" | 30 CFM | 21/50 hp | D Shaft | 1/4" | 4 1/8" | 5 3/4" | €449.95 | |
 |

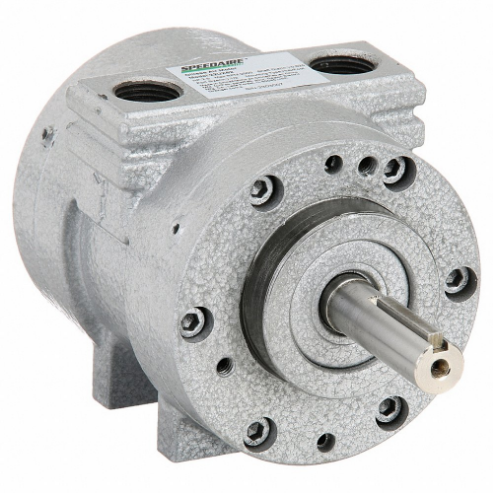

22UX62 | Counter Clockwise | 2 5/8" | 68 CFM | 2 1/2 hp | Keyed | 1/2" | 4 1/4" | 8" | €455.68 |
