DAYTON General Purpose AC Motors

Includes NEMA Premium rated Dayton motors ideal for applications in conveyors, pumps, fans and compressors. Available in steel and cast-iron frames and different voltage specifications and rpm ratings

Filter

DAYTON -

HVAC AC Motors, 3.3 Inch Diameter

StyleModelVoltageFrequencyHpMounting TypeMotor Enclosure DesignFull Load AmpsMotor TypeMotor Shaft RotationPrice
A71903590M115/208-230V AC50/60 Hz1/12 hpExtended StudsOpen Air Over1.1/0.6APermanent Split CapacitorCW, CCW€184.73
B71626876M115V AC60 Hz1/20 hpExtended StudsOpen Air Over0.63APermanent Split CapacitorCW, CCW€159.50
C71213795M115V AC60 Hz1/70 hpExtended StudsOpen Air Over0.85AShaded PoleClockwise Shaft End€86.91
D71631634M115V AC60 Hz1/20 hpExtended StudsTotally Enclosed Fan Cooled2AShaded PoleClockwise Shaft End€176.33
E71732488M115V AC60 Hz1/100 hpExtended StudsOpen Air Over0.64AShaded PoleCounter Clockwise Shaft End€108.89
F71633698M115V AC60 Hz1/100 hpExtended StudsTotally Enclosed Air Over0.6AShaded PoleClockwise Shaft End€102.80
G71633697M115V AC60 Hz1/30 hpExtended StudsOpen Air Over1.2AShaded PoleClockwise Shaft End€125.57
H71213778M115V AC60 Hz1/15 hpExtended StudsOpen Air Over-Shaded PoleClockwise Shaft End€126.17
I71633691M115V AC60 Hz1/40 hpExtended StudsOpen Air Over1.1AShaded PoleCounter Clockwise Shaft End€113.45
J71633689M115V AC60 Hz1/50 hpExtended StudsOpen Air Over0.8AShaded PoleClockwise Shaft End€111.41
K71633688M115V AC60 Hz1/70 hpExtended StudsOpen Air Over0.75AShaded PoleClockwise Shaft End€101.83
L55FH03115V AC60 Hz-StudOpen Air Over--CCW€81.57
M71732299M115V AC60 Hz1/100 hpExtended StudsOpen Air Over0.7AShaded PoleClockwise Shaft End€159.58
N71900251M115V AC60 Hz1/15 hpExtended StudsOpen Air Over-Permanent Split CapacitorClockwise Shaft End€173.21
O71632766M115V AC60 Hz1/15 hpExtended StudsTotally Enclosed Fan Cooled2.3AShaded PoleClockwise Shaft End€204.90
P71632379M115V AC60 Hz1/15 hpExtended StudsTotally Enclosed Fan Cooled2.3AShaded PoleCounter Clockwise Shaft End€200.77
Q71636952M115V AC60 Hz1/20 hpExtended StudsOpen Air Over2.1AShaded PoleCounter Clockwise Lead End€200.29
R71633693M115V AC60 Hz1/20 hpExtended StudsOpen Air Over-Shaded PoleClockwise Shaft End€132.59
S71633692M115V AC60 Hz1/30 hpExtended StudsOpen Air Over1.2AShaded PoleClockwise Shaft End€118.59
T71213782M115V AC60 Hz1/40 hpExtended StudsOpen Air Over0.9AShaded PoleClockwise Shaft End€106.53
U71732487M115V AC60 Hz1/70 hpExtended StudsTotally Enclosed Air Over0.6AShaded PoleCounter Clockwise Shaft End€106.02
V71633696M115V AC60 Hz1/40 hpExtended StudsOpen Air Over1AShaded PoleClockwise Shaft End€132.56
W71626626M115V AC60 Hz1/8 hpExtended Studs-1.3APermanent Split CapacitorCW, CCW€204.80
X71216241M115V AC60 Hz1/30 hpExtended StudsTotally Enclosed Air Over1.2AShaded PoleClockwise Shaft End€100.68
Y71633712M115V AC60 Hz1/70 hpExtended StudsOpen Air Over0.75AShaded PoleCounter Clockwise Shaft End€101.84
StyleModelMotor Enclosure DesignVoltagePhaseFull Load AmpsHpMounting TypeService FactorMotor TypePrice
A71638553M--------€185.78
A71639665M--------€184.40
DAYTON -

General Purpose Motors, Totally Enclosed Non Ventilated

Dayton general purpose motors are used in water heaters, pumps, ovens and off-road motorised equipment. These motors feature steel frames for structural rigidity & corrosion resistance, and are equipped with ball bearings for low rotational friction. They deliver speeds up to 3460 rpm and allow face / base mounting for easy installation. These TENV motors provide a maximum efficiency of 89.8%, and are available in 1/4, 1/3, 1/2, 1/6 & 3/4 hp variants.

StyleModelVoltagePhaseHpFrequencyFull Load AmpsMounting TypeMotor TypeService FactorPrice
A5GD55115/208-230V AC11/3 hp60 Hz4.3/2.5-2.2AFaceCapacitor Start1.15€305.05
B5GD53115/208-230V AC11/6 hp60 Hz4.3/2.1-1.9AFaceCapacitor Start1.15€345.09
C6K181BG115/208-230V AC11/3 hp60 Hz4.7/2.4-2.3AFaceCapacitor Start1€326.44
D6K481BG115/208-230V AC11/3 hp60 Hz4.7/2.4-2.3ARigid BaseCapacitor Start1€342.78
E6K482115/208-230V AC11/2 hp60 Hz6.3/3.4-3.3ARigid BaseCapacitor Start1€377.44
F3N349208-230/460V AC31/4 hp60 Hz1.1/0.5ARigid BaseThree Phase1€320.47
F3N350208-230/460V AC31/3 hp60 Hz1.3/0.7ARigid BaseThree Phase1€308.80
F3N694208-230/460V AC31/3 hp60 Hz1.5-1.4/0.7ARigid BaseThree Phase1€608.94
G3N695208-230/460V AC31/2 hp60 Hz1.9/1.8-1ARigid BaseThree Phase1.15€461.53
H3N696208-230/460V AC33/4 hp60 Hz2.9-2.8/1.4ARigid BaseThree Phase1.15€492.17
I3N854208-230/460V AC31/3 hp50/60 Hz1.2-1.1/0.6ARigid BaseThree Phase1.15€423.24
J2N863230/460V AC31/4 hp50/60 Hz1.4/0.7ARigid BaseThree Phase1.15€375.94
DAYTON -

General Purpose Motors, ODP Enclosure, 3/4 HP Power Output

Dayton general purpose motors are used with compressors, fans, conveyors, pumps, material handling and machine tools. These motors have steel construction with 3-phase motor design to operate with higher torque and greater efficiency, as compared to single-phase models having the same power outputs (hp), speeds (rpm) and frame sizes. They also feature open drip-proof (ODP) enclosures that have ventilated openings to allow inflow of external cooling air. These units are further integrated with ball bearings for smooth operation and can be mounted in horizontal position. Choose from a wide range of these general purpose AC motors, available in 56C and 56HC frame options.

StyleModelFull Load AmpsService FactorFrameEfficiencyOverall LengthLength Less ShaftNominal EfficiencyMotor Enclosure DesignPrice
A31LH452.3/1.1A1.2556C76.8%10 11/16"7 1/8"76.8%Open Dripproof€372.85
B31LH622.3/1.1A1.2556C76.8%10 11/16"6 15/16"76.8%Open Dripproof€372.85
B31LH632.3/1.2A1.2556C81.1%11 1/8"8 1/2"81.1%Open Dripproof€397.17
A31LH462.3/1.2A1.2556C81.1%11 1/8"8 1/2"81.1%Open Dripproof€397.17
B31LH642.5/1.3A1.1556HC81.7%11 1/2"8 15/16"81.7%Open Dripproof€361.01
A31LH472.6/1.3A1.1556C81.7%12 11/16"8 15/16"81.7%Open Dripproof€361.01
DAYTON -

General Purpose Split Phase Motors, TEFC, 1725 RPM, 48Z

Dayton general purpose split-phase motors are designed for low-to-medium-torque applications, such as for blowers, fans and small conveyors where gradual speed build up is required. Their totally enclosed fan-cooled enclosure in rolled steel NEMA frame features a continuous duty motor with multiple speed settings for desired operation. The Class F insulation ensures operation in high temperature environment. They are equipped with ball bearings for smooth delivery while shaft can rotate in both clockwise and counter clockwise direction. Choose from a wide range of split phase motors, available in 3.2, 4.7 and 4.9 ampere current ratings on Raptor Supplies.

StyleModelHpFull Load AmpsMounting TypeInsulation ClassEfficiencyOverall LengthNo. Of SpeedsNominal EfficiencyPrice

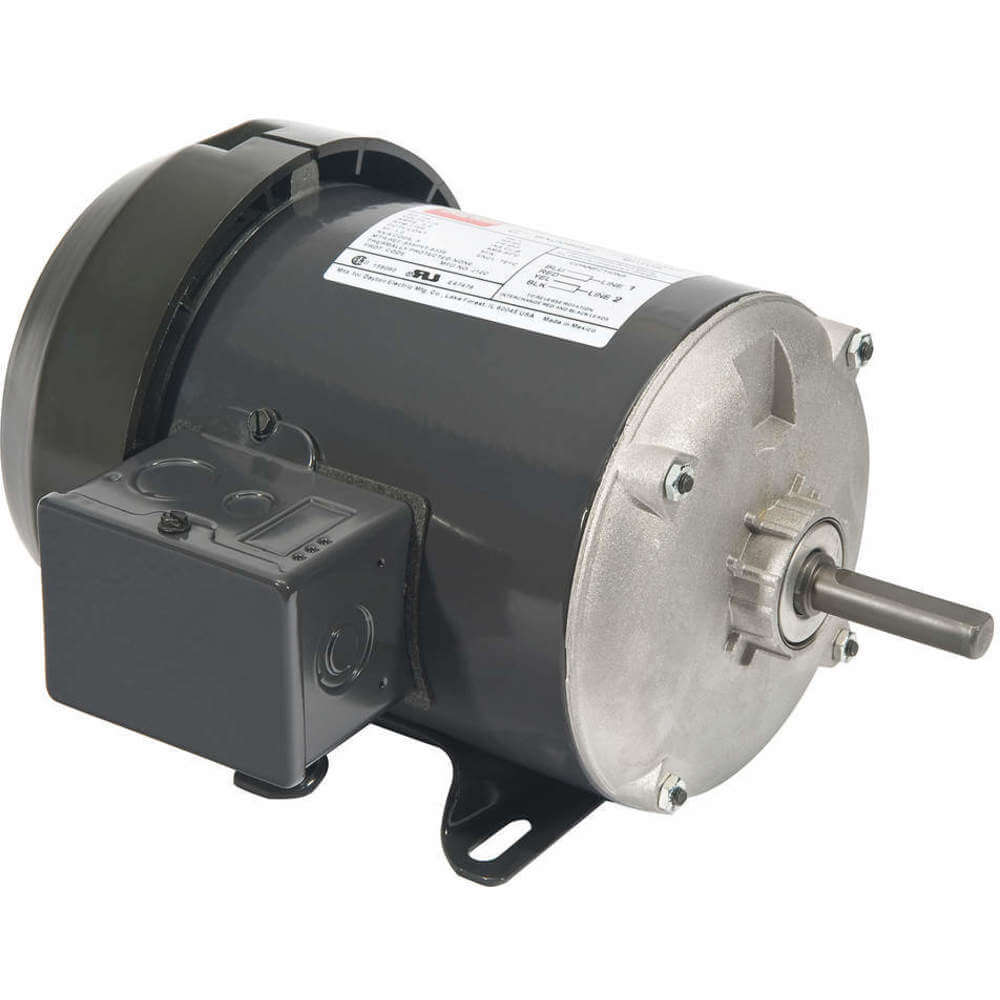

A6XJ071/4 hp4.9ARigid BaseClass B55.2%10 5/8"155.2%€280.09

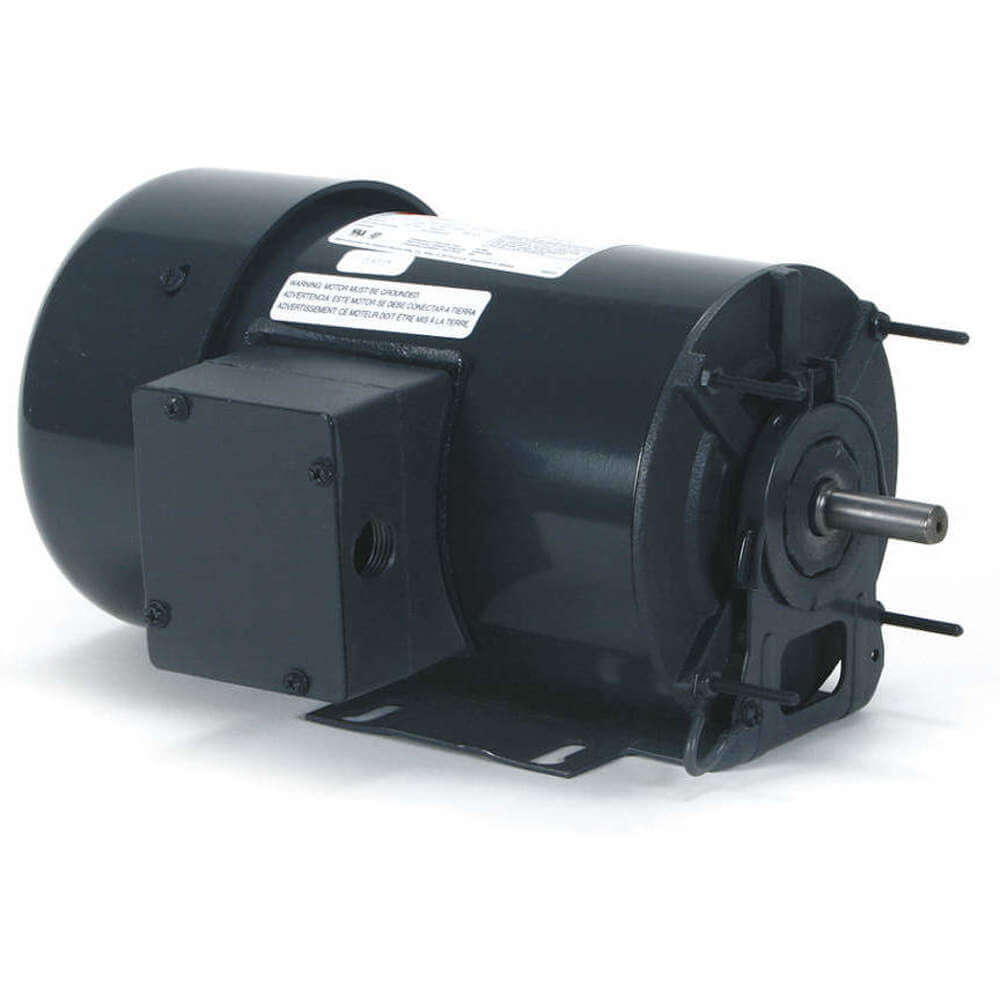

B6XJ051/4 hp, 1/12 hp4.7/3.3ACradle BaseClass F54.5%11 3/8"254.5%€437.11
A6XJ061/6 hp3.2ARigid BaseClass B54.1%11"154.1%€306.98
DAYTON -

General Purpose Motors, Split Phase, TEFC

Dayton split-phase general purpose motors are designed to power blowers, fans and small conveyors. These motors have both main and auxiliary windings to provide both clockwise and counterclockwise rotations. The motors are enclosed in a steel constructed NEMA rated frame for protection and easy replacement. The keyed shaft makes rotation easier and decreases the chances of an error. Choose from a wide range of these TEFC motors, available in 1/8, 1/4, 1/3 and 1/2 HP power ratings on Raptor Supplies.

StyleModelHpFull Load AmpsFrameInsulation ClassShaft Dia.EfficiencyMotor Shaft DesignOverall LengthPrice
A6XJ111/2 hp8A56Class F5/8"63.9%Keyed11 1/2"€404.69

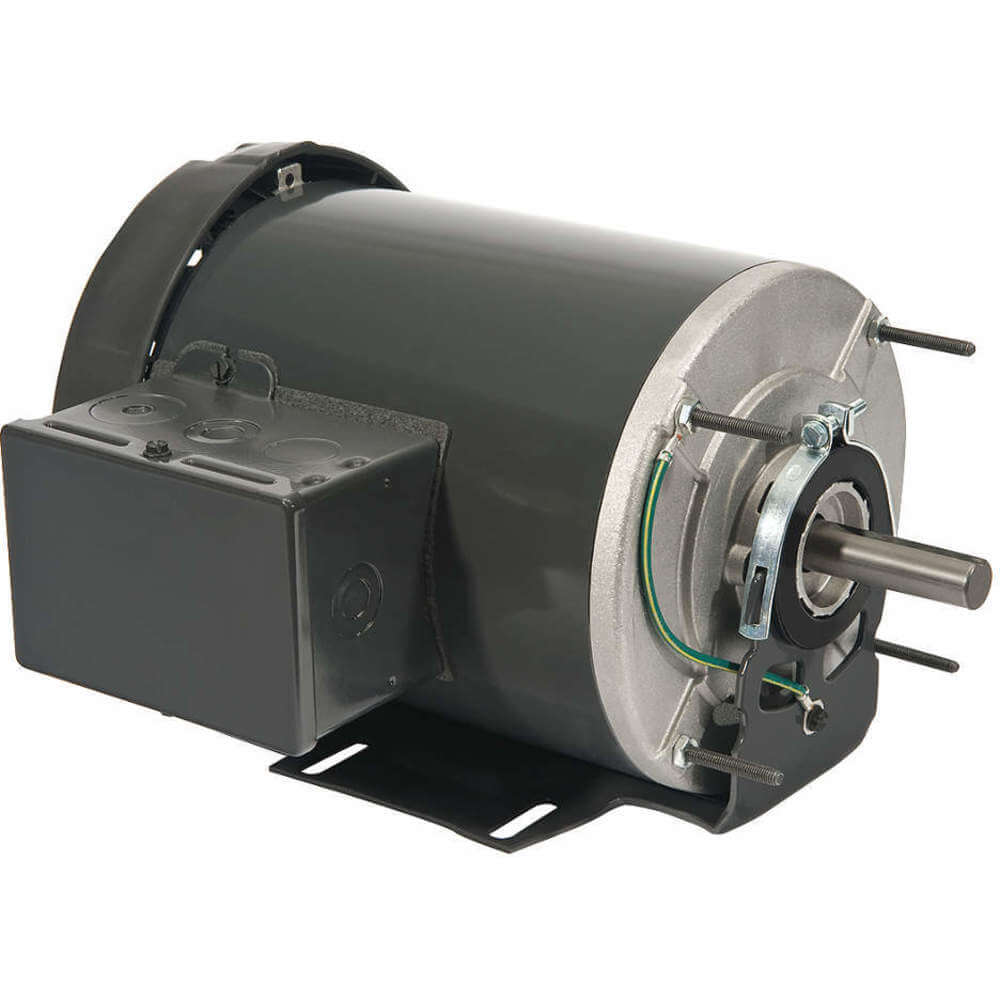

A6XJ101/3 hp5.9A56Class B5/8"63.9%Keyed11"€349.76
A6XJ581/4 hp, 1/2 hp7.2/5A56Class B5/8"64%Keyed12 13/16"€761.22

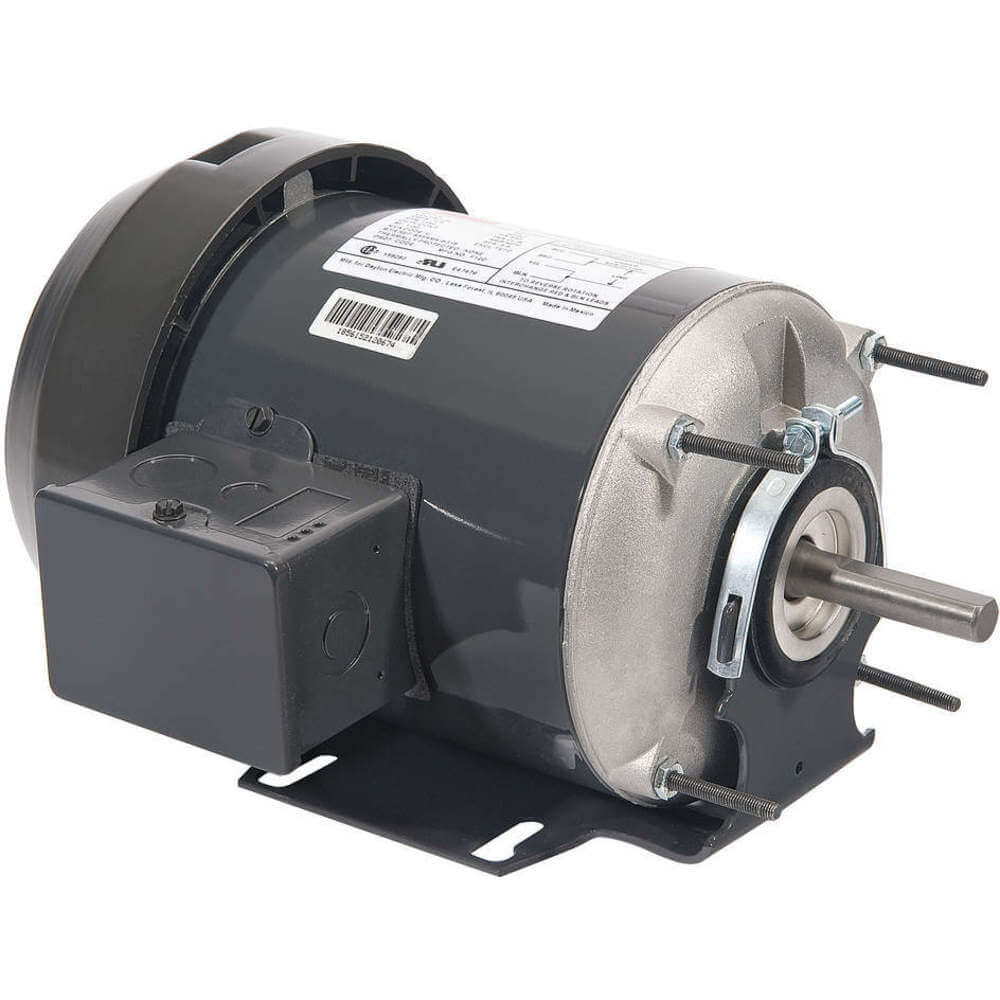

B6XJ011/8 hp3.5A48ZClass B1/2"50%Flat11 1/16"€356.14
DAYTON -

General Purpose Motor Carbon Steel Tefc

StyleModelVoltageHpFull Load AmpsMotor TypeService FactorMounting TypeFrameAmbient Temp.Price
A1K080115/208-230V AC3/4 hp10.4/5.3-5.2ACapacitor Start1.15-56C104°F€489.41
B1K081115/208-230V AC3/4 hp11/5.5-5.4ACapacitor Start1.15Face, Base56C40°C€683.67
C5UKF4115/208-230V AC3/4 hp11.1/5.6-5.4ACapacitor Start1Rigid Base48104°F€518.06
D5UKG4115/208-230V AC2 hp19.5/10.8-9.7ACapacitor Start, Run1Rigid Base56H104°F€926.42
E6K831115/208-230V AC3/4 hp10.4/5.3-5.2ACapacitor Start1.15Face56C104°F€363.84
F6K832115/208-230V AC1 1/2 hp14.6/8.1-7.4ACapacitor Start, Run1Face56C104°F€570.37
G6XJ53115/208-230V AC1 1/2 hp14.6/8.1-7.4ACapacitor Start, Run1Rigid Base56H104°F€721.33
D5UKG8230V AC3 hp15.4ACapacitor Start, Run1Rigid Base145T104°F€1,081.78
H6K176230V AC7 1/2 hp30ACapacitor Start, Run1Rigid Base215T104°F€2,575.47
I6K179BG230V AC7 1/2 hp30.3ACapacitor Start, Run1Rigid Base213T40°C€2,711.49
DAYTON -

General Purpose Motor Capacitor Start/run Open Dripproof

StyleModelHpFull Load AmpsMounting TypeService FactorFrameThermal ProtectionShaft Dia.EfficiencyPrice
A103806.001/2 hp4.4/2.4-2.2ARigid Base1.2548None1/2"72.4%€731.61
B103874.001/2 hp4.6/2.4-2.3ARigid Base1.2556None5/8"76.2%€572.15
B103844.001/2 hp4.4/2.4-2.2ARigid Base1.2556None5/8"72.4%€492.88
B103843.001/2 hp4.4/2.4-2.2ARigid Base1.2556Manual5/8"72.4%€519.88
B103842.001/2 hp4.4/2.4-2.2ARigid Base1.2556Automatic5/8"72.4%€524.78
C103876.001/2 hp4.6/2.4-2.3AFace1.2556CAutomatic5/8"76.2%€601.42
B103875.001/2 hp4.6/2.4-2.3ARigid Base1.2556Manual5/8"76.2%€677.37
B103877.001/2 hp4.6/2.4-2.3ARigid Base1.2556Automatic5/8"76.2%€628.38
A103814.001/2 hp4.4/2.4-2.2ARigid Base1.2548Manual1/2"72.4%€834.62
A103808.001/2 hp4.6/2.4-2.3ARigid Base1.2548Automatic1/2"76.2%€850.07
A103812.001/2 hp4.6/2.4-2.3ARigid Base1.2548None1/2"76.2%€948.06
A103816.001/3 hp3.8/1.9ARigid Base1.3548Automatic1/2"72.4%€900.57
A103809.001/3 hp3/1.6-1.5ARigid Base1.3548Automatic1/2"70.5%€778.79
A103813.001/3 hp3.8/1.9ARigid Base1.3548None1/2"72.4%€811.25
C103838.001/3 hp3.8/1.9AFace1.3556CAutomatic5/8"72.4%€633.65
B103836.001/3 hp3.8/1.9ARigid Base1.3556Manual5/8"72.4%€637.35
B103835.001/3 hp3.8/1.9ARigid Base1.3556Automatic5/8"72.4%€606.21
B103834.001/3 hp3.8/1.9ARigid Base1.3556None5/8"72.4%€543.42
B103837.001/4 hp2.4/1.2ARigid Base1.3556None5/8"68.5%€559.31
B103833.001/4 hp2.4/1.2ARigid Base1.3556Automatic5/8"68.5%€609.10
C103839.001/4 hp2.4/1.2AFace1.3556CAutomatic5/8"68.5%€704.34
B103841.001/4 hp2.4/1.2ARigid Base1.3556None5/8"62.2%€871.21
A103815.001/4 hp2.4/1.2ARigid Base1.3548Automatic1/2"68.5%€736.94
A103807.003/4 hp7.2/4-3.6ARigid Base1.2548None1/2"76.2%€780.38
B103840.003/4 hp7.2/4-3.6ARigid Base1.2556Automatic5/8"76.2%€780.96
DAYTON -

General Purpose Motor Cap Start/Run Open Drip-proof

Dayton general-purpose capacitor start motors provide additional power during the startup, ideal for use in air conditioners, auger drives, compressors, conveyors, fans and pumps. These single phase single speed motors are enclosed in a NEMA-rated frame for added safety and feature 2 capacitors for generating higher torque speeds of 1800 RPM. The motor provides continuous operation and are cradle base mounted on a horizontal surface, including ball bearings for smooth operation. Choose from a wide range of these capacitor start motors, available in 2 and 3/4 hp motor power ratings on Raptor Supplies.

StyleModelHpFull Load AmpsFrameThermal ProtectionEfficiencyOverall LengthLength Less ShaftNominal EfficiencyPrice
A30PT862 hp17/8.5A56HAutomatic84.5%13 9/16"11 5/8"84.5%€1,240.59
A30PT872 hp17/8.5A56HNone84.5%13 9/16"12 3/8"84.5%€1,165.09
B30PT723/4 hp7.4/3.7A56None80.2%13 13/16"11 7/8"80.2%€1,192.54
C30PT733/4 hp6.6/3.4A56Automatic80.2%13 13/16"11 7/8"80.2%€1,185.69
DAYTON -

General Purpose Motors, 3 Phase

Dayton general purpose 3 phase AC motors are designed for continuous duty operations in pumps, fans, blowers and conveyors. These motors are single speed and are capable of producing a maximum speed of 3450RPM. Their rolled steel construction with open dripproof enclosure provide corrosion resistance and safe operation. They are Class B insulated for withstanding high temperatures. These motors can be mounted in both horizontal and vertical orientation. The NEMA rated nominal efficiency ensures maximum energy savings. Choose from a wide range of these general purpose motors, available in 1/4, 1/3 and 1/2 HP on Raptor Supplies.

StyleModelHpFull Load AmpsService FactorEfficiencyOverall LengthLength Less ShaftNominal EfficiencyMotor Enclosure DesignPrice
A20CL661/2 hp1.8/0.9A1.2573.4%9 7/16"7 15/16"73.4%Open Dripproof€401.11
A103818.001/3 hp1.2/0.6A1.3573.4%10 7/8"9 3/8"73.4%Open Dripproof€749.44
A20CL651/3 hp1.4/0.7A1.3569.5%9 5/16"7 3/4"69.5%Open Dripproof€387.27
A103817.001/4 hp1/0.5A1.3569.5%10 3/8"8 3/4"69.5%Open Dripproof€466.50
DAYTON -

3 Phase General Purpose AC Motors, 2HP, 208 - 230 / 460VAC

Dayton 3-phase general purpose AC motors are designed to be used in water heaters, pumps, conveyors and off-road motorised equipment. They produce a power output of 2HP and deliver a maximum speed up to 3510 RPM and allow shaft rotation in both clockwise & counterclockwise directions. These continuous duty motors feature NEMA 56 rolled steel frames for structural rigidity & corrosion resistance. They are further equipped with ball bearings for low rotational friction. The Class F insulation offers operation in high temperatures. They are NEMA Premium rated, providing maximum energy savings. Choose from a wide range of Dayton 3-phase motors, available in 77 and 83.5 percent nominal efficiencies on Raptor Supplies.

StyleModelFrequencyFull Load AmpsMounting TypeFrameEfficiencyOverall LengthLength Less ShaftNominal EfficiencyPrice
A31LH3450/60 Hz5.3/2.7ARigid Base56H85.5%12 11/16"9 11/16"85.5%€457.33
B31LH5260 Hz5.4/2.7AFace56C86.5%13 1/16"10"86.5%€474.59
C31LH6960 Hz4.8/2.4A-56HC85.5%12 11/16"8 15/16"85.5%€427.29
D31LH7060 Hz4.8/2.4A-56HC85.5%12 11/16"8 15/16"85.5%€427.29
D31LH7160 Hz5.4/2.7A-56HC86.5%13 1/16"9 15/16"86.5%€474.59
DAYTON -

3 Phase General Purpose AC Motors

Dayton 3 phase general purpose AC motors are designed to power fans, pumps, ventilation equipment and machine tools with higher torque and greater efficiency than the single-phase models of same specifications. These motors feature NEMA 56 frame containing 3 windings to create a rotating magnetic field and provide continuous shaft rotation in both clockwise and counterclockwise direction. They are Class F insulation rated for protection against high temperatures. They are horizontally, faced mounted and are CE, CSA and UL compliant for safe operation. Choose from a wide range of these general purpose motors, available in 1160, 1720, 1765 and 3520 RPM ratings on Raptor Supplies.

StyleModelFull Load AmpsEfficiencyOverall LengthLength Less ShaftNominal EfficiencyMotor Enclosure DesignVoltagePhasePrice
A31LH360.8/0.4A72%10 5/16"6 15/16"72%Open Dripproof230/460V AC3€282.24
A31LH371.1/0.53A69.5%9 15/16"7 1/8"69.5%Open Dripproof230/460V AC3€308.67
A31LH381.1/0.55A67.5%10 5/16"7 1/8"67.5%Open Dripproof230/460V AC3€359.62
B31LH541/0.5A69.5%9 15/16"6 15/16"69.5%Open Dripproof230/460V AC3€328.37
DAYTON -

Three Phase Motors, 208-230/460V, 1/3 HP Power Output

Dayton 1/3 Hp, general purpose motors operate with high torque and greater efficiency, ideal for non-hazardous applications, such as machine tools, fans, compressors, conveyors, pumps and material handling tools. Unlike single-phase models, these units do not require start / run capacitors or centrifugal switches that may fail or wear, causing issues like motor shutdown, overheating and vibrations. They have rolled steel construction for durability and ball bearings for smooth and continuous operation. These units further come with open drip-proof enclosures with ventilated openings, allowing inflow of cooling air directly over motor windings, thereby keeping internal components safe from overheating. Choose from a wide range of these three-phase motors, available in 1.15 and 1.35 service factor options.

StyleModelFull Load AmpsEfficiencyLength Less ShaftNominal EfficiencyMotor Enclosure DesignVoltagePhaseHpPrice
A31LH391.1/0.6A72%6 15/16"72%Open Dripproof230/460V AC31/3 hp€323.61
B31LH561.1/0.6A72%6 15/16"72%Open Dripproof230/460V AC31/3 hp€323.61
A31LH401.3/0.68A73.4%8 1/4"73.4%Open Dripproof230/460V AC31/3 hp€365.73
B31LH571.3/0.68A73.4%6 15/16"73.4%Open Dripproof230/460V AC31/3 hp€365.73
B31LH581.5/0.7A71.4%8 1/2"71.4%Open Dripproof230/460V AC31/3 hp€303.33
A31LH411.5/0.76A71.4%8 1/2"71.4%Open Dripproof230/460V AC31/3 hp€318.44
DAYTON -

General Purpose Motors, 1/2 HP, Three Phase Design

Dayton three-phase general purpose motors are used for high torque applications such as compressors, fans, pumps, conveyors, machine tools and material handling tools. These units feature rolled steel construction for durability and structural rigidity and have ball bearings for smooth and continuous operation. The open drip-proof enclosure have ventilated openings to allow inflow of external air directly over the motor windings to keep internal components safe from overheating. Choose from an extensive range of these general purpose AC motors, available in speeds ranging from 1155 to 3490 rpm.

StyleModelFull Load AmpsEfficiencyOverall LengthLength Less ShaftNominal EfficiencyMotor Enclosure DesignVoltagePhasePrice
A31LH421.6/0.81A73.4%10 5/16"7 1/8"73.4%Open Dripproof230/460V AC3€352.25
B31LH591.6/0.81A73.4%10 5/16"6 15/16"73.4%Open Dripproof230/460V AC3€352.25
A31LH431.7/0.86A78.2%10 11/16"7 1/8"78.2%Open Dripproof230/460V AC3€352.25
B31LH601.7/0.86A78.2%10 11/16"6 15/16"78.2%Open Dripproof230/460V AC3€374.73
A31LH442/0.99A72%10 11/16"8 3/4"72%Open Dripproof230/460V AC3€322.86
B31LH612/0.99A75.3%10 11/16"8 1/2"75.3%Open Dripproof230/460V AC3€343.46
DAYTON -

3 Phase General Purpose Motors, 1.5HP, 208 - 230 / 460VAC

Dayton general purpose AC motors are ideal for use in pumps, conveyors, fans and blowers. These 3 phase motors are capable of producing a power output of 1.5HP and a maximum speed of 3510 RPM. They feature rolled steel construction in NEMA 56 frame and are equipped with a keyed shaft designed to be rotated in both clockwise and counterclockwise directions. The NEMA 56H denotes that the motor has 3 & 5 inch mounting holes, while NEMA 56C denotes the motor is face-mounted. They have ball bearings for smooth operation and Class F insulation to tolerate high temperatures during the operation. Choose from a wide range of 3 phase motors, available in 8.75 and 9 inch shaft lengths on Raptor Supplies.

StyleModelFrequencyFull Load AmpsMounting TypeFrameEfficiencyOverall LengthMotor DesignLength Less ShaftPrice
A31LH3350/60 Hz4.2/2.1ARigid Base56H86.5%13 1/16"3 Phase9 11/16"€425.32
A31LH3250/60 Hz3.7/1.85ARigid Base56H84%11 7/8"3 Phase8 3/4"€411.59
B31LH5060 Hz3.7/1.9AFace56C84%10 11/16"3 Phase9"€410.57
C31LH6760 Hz3.7/1.9A-56C84%10 11/16"3 Phase8 15/16"€410.57
D31LH6860 Hz4.3/2.1A-56HC86.5%13 1/16"3 Phase9 15/16"€424.21
B31LH5160 Hz4.3/2.1AFace56C86.5%13 1/16"Three Phase-€424.21
DAYTON -

3 Phase General Purpose AC Motors, 1HP, 208-230 / 460VAC

Dayton 3-phase general purpose AC motors are used in water heaters, pumps, conveyors and off-road motorised equipment. These continuous duty motors feature NEMA 56 rolled steel frames for structural rigidity & corrosion resistance and are equipped with ball bearings for low rotational friction. They deliver speeds up to 3470 RPM and allow shaft rotation in both clockwise & counterclockwise directions. These motors conform to CE, CSA and UL standards and are NEMA Premium rated, providing excellent energy-saving efficiency. Choose from a wide range of these Dayton 3-phase motors, available in 77 and 83.5 percent nominal efficiencies on Raptor Supplies.

StyleModelFrequencyFull Load AmpsService FactorMounting TypeFrameEfficiencyOverall LengthLength Less ShaftPrice
A31LH3150/60 Hz3.1/1.6A1.15Rigid Base56H83.5%11 1/2"8 3/4"€405.75
B31LH4860 Hz3/1.5A1.25Face56C77%10 11/16"9 13/16"€404.60
B31LH4960 Hz3.1/1.6A1.15Face56C83.5%11 1/2"8 3/4"€404.18
C31LH6560 Hz3/1.5A1.25-56C77%10 11/16"8 1/2"€379.92
D31LH6660 Hz3.1/1.6A1.15-56HC83.5%11 1/2"9 1/8"€597.33
DAYTON -

Motor with Bracket, 480vs

StyleModelVoltagePrice
AHV390011002001G480V€870.13
BPSC127-425F480V AC€259.15
BPSC127-625B480V AC€218.66
-

Carbonator Pump Motors

StyleModelMotor Enclosure DesignVoltageHpFrequencyFull Load AmpsMounting TypeFrameAmbient Temp.Price
A484H29Open115V AC1/3 hp60 Hz6ARigid Base48YZ40°C€290.00
B484H28Open Dripproof120/240V AC1/4 hp50/60 Hz5.1-5/2.6-2.5ACradle Base48YZ40°C€254.44
C484H30Open Dripproof115V AC1/3 hp60 Hz6.5ACradle Base4840°C€343.94
D484H34Open Dripproof115/230V AC3/4 hp50/60 Hz9.1/4.6ACradle Base48YZ40°C€490.80
E484H32Open Dripproof120/240V AC1/2 hp50/60 Hz7.6-7.7/3.9ACradle Base48YZ40°C€423.88
F484H31Open Dripproof120/240V AC1/3 hp50/60 Hz5.7-5.6/2.8-2.8ACradle Base48YZ40°C€403.90
G484H33Open Dripproof115V AC1/2 hp60 Hz8.4ACradle Base48YZ40°C€419.87
-

General Purpose Motors, Totally Enclosed Fan Cooled

Dayton general purpose totally enclosed fan cooled motors are designed for pumps, fans, conveyor belts, compressors & machine tools. These continuous duty motors feature a foot-mounted steel frame for reduced vibrations, anad high-performance ball bearings capable of withstanding heavy loads. Class B and F insulation provide safety from electrical hazards.

StyleModelVoltagePhaseHpFrequencyFull Load AmpsService FactorMotor TypeMounting TypePrice
A6XJ44115/208-230V AC11/4 hp60 Hz5.6/2.8-2.7A1Capacitor StartFace€632.73
B5K961115/208-230V AC12 hp60 Hz19.5/10.8-9.7A1Capacitor Start, RunRigid Base€1,065.35
C1K065115/208-230V AC11 hp60 Hz14/6.9-7A1.15Capacitor StartRigid Base€473.33
D1K075115/208-230V AC12 hp60 Hz18.9/10.3-9.4A1Capacitor Start, RunFace€1,085.39
E1K077115/208-230V AC11/3 hp60 Hz6.6/3.3-3A1Capacitor Start-€588.38
F5UKG5BG115/208-230V AC12 hp60 Hz18.9/10.3-9.4A1Capacitor Start, RunRigid Base€815.84
G5UKG7115/208-230V AC12 hp60 Hz18.8/10.2-9.4A1Capacitor Start, RunRigid Base€806.07
H5UKG3115/208-230V AC12 hp60 Hz19.5/10.8-9.7A1.15Capacitor Start, RunRigid Base€840.18
I5UKG0115/208-230V AC11 1/2 hp60 Hz14.4/8-7.2A1.15Capacitor Start, RunBase€896.82
J5UKF9115/208-230V AC11 1/2 hp60 Hz14.6/8.1-7.4A1.15Capacitor Start, RunRigid Base€789.04
K5UKF8115/208-230V AC11 hp60 Hz14/6.9-7A1.15Capacitor StartRigid Base€661.56
L5UKF7115/208-230V AC11 hp60 Hz11.8/6.3-5.9A1Capacitor StartRigid Base€478.19
M5UKF2115/208-230V AC11/2 hp60 Hz8.6/4.4-4.1A1Capacitor StartRigid Base€344.71
N6K637115/208-230V AC11/2 hp60 Hz9/4.5-4.3A1.15Capacitor StartRigid Base€736.02
G5K672115/208-230V AC11/2 hp60 Hz10.6/5.4-5.3A1Capacitor Start, RunRigid Base€763.53
O5UKF6BG115/208-230V AC13/4 hp60 Hz10.6/5.4-5.3A1.15Capacitor Start, RunRigid Base€1,416.73
P5K502BG115/208-230V AC11/3 hp60 Hz6.8/3.4A1Capacitor StartRigid Base€765.46
Q5K341115/208-230V AC11/3 hp60 Hz7.7/3.9A1.15Capacitor StartFace€393.57
R3K300115/208-230V AC11 1/2 hp60 Hz14.6/8.1-7.4A1Capacitor Start, RunRigid Base€741.65
S3K344115/208-230V AC12 hp60 Hz19.5/10.8-9.7A1Capacitor Start, RunRigid Base€1,072.46
T3K348115/208-230V AC11 hp60 Hz13.9/7-6.9A1Capacitor StartFace, Base€582.12
U1K067BG115/208-230V AC12 hp60 Hz18.9/10.3-9.4A1Capacitor Start, RunRigid Base€687.26
V1K078115/208-230V AC11/2 hp60 Hz7.8/4.1-3.9A1Capacitor Start-€469.45
W1K082115/208-230V AC11 1/2 hp60 Hz14.4/8-7.2A1.15Capacitor Start, Run-€899.78
Q6K342115/208-230V AC11/2 hp60 Hz7.7/3.9A1.15Capacitor StartFace€620.55
-

Direct Drive Blower Motors

StyleModelVoltageMotor TypeHpFull Load AmpsMounting TypePhaseFrequencyService FactorPrice
A4YU35115/208-230V ACCapacitor Start3/4 hp10.6ACradle Base160 Hz1.25€602.27
B5BE60115/208-230V ACCapacitor Start1 1/2 hp13.2/7.2-6.6AExtended Studs160 Hz1.15€1,256.80
C5BE58115/208-230V ACCapacitor Start1 hp12.8/6.4AExtended Studs160 Hz1.15€785.75
D4YU30115/208-230V ACCapacitor Start1 hp12.8/6.4ACradle Base160 Hz1.15€830.86
E4YU31115/208-230V ACCapacitor Start1 1/2 hp13.2/7.2-6.6ARigid Base160 Hz1.15€623.77
F4YU22115/230V ACPermanent Split Capacitor1/2 hp6/3ARigid Base160 Hz1€785.00
G4YU28115/230V ACPermanent Split Capacitor1/2 hp6/3ARigid Base160 Hz1€483.89
H4YU29115/230V ACPermanent Split Capacitor3/4 hp7/3.5ARigid Base160 Hz1€456.61
I5BE66115/230V ACPermanent Split Capacitor1/2 hp5.4/2.7AExtended Studs160 Hz1€385.03
JGGS_47827115/230V ACPermanent Split Capacitor1/2 hp4.3/2.3AYoke1--€482.42
KGGS_47823115/230V ACPermanent Split Capacitor1/2 hp5.2/2.6AYoke1--€276.93
L4HZ71115/230V ACPermanent Split Capacitor3/4 hp10-5AExtended Studs160 Hz1€512.40
JGGS_47826115/230V ACPermanent Split Capacitor1/3 hp3.6/1.8AYoke1--€340.03
M5BE68115/230V ACPermanent Split Capacitor1 hp11.4/5.7AExtended Studs160 Hz1€950.91
JGGS_47825115/230V ACPermanent Split Capacitor1/4 hp2.9/1.5AYoke1--€232.01
N4YU26115/230V ACPermanent Split Capacitor1 hp11.4/5.7ARigid Base160 Hz1€866.91
O4YY55115/230V ACPermanent Split Capacitor3/4 hp8/4ARigid Base160 Hz1€608.26
P4HZ61BG115/230V ACPermanent Split Capacitor1/2 hp5.2-2.4AExtended Studs160 Hz1€350.22
Q5BE56115/230V ACPermanent Split Capacitor3/4 hp7/3.5AExtended Studs160 Hz1€563.63
R4HZ63BG115/230V ACPermanent Split Capacitor1/2 hp8-4AExtended Studs160 Hz1€400.27
S5BE54115/230V ACPermanent Split Capacitor1/2 hp6/3AExtended Studs160 Hz1€367.80
T5BE62115V ACPermanent Split Capacitor1/6 hp2.2AExtended Studs160 Hz1€346.52
U7E649115V ACPermanent Split Capacitor1/3 hp5AFlexible Arms160 Hz1€217.93
U7E660115V ACPermanent Split Capacitor1/4 hp3.8AResilient Ring Extended Studs160 Hz1€319.28
U7E658115V ACPermanent Split Capacitor1/4 hp3.4AExtended Studs160 Hz1€343.58
DAYTON -

Belt Drive Motors, Keyed Shaft, 5/8 Inch Shaft Diameter

Dayton belt drive motors are ideal for turning a pulley or belt for powering HVAC equipment such as air coolers, roof ventilators, belt-drive fans & air circulators. These motors are equipped with ball / sleeve bearings for less motor friction and reduced noise at low speeds. They feature an open drip-proof enclosure to prevent motor overheating and offer face / cradle / stud mounting for easy installation. With a maximum nominal efficiency of 74%, these motors are available in shaft lengths of 1.875, 2.25 and 2.437 inches.

StyleModelVoltageHpFull Load AmpsMounting TypeService FactorFrequencyMotor TypeFramePrice
A1AGG3115/208-230V1/2 hp7.2/3.6ACradle Base1.2560 HzCapacitor Start56€377.26
B6K321115/208-230V1 hp13.6/6.9ACradle Base1.1560 HzCapacitor Start56€536.52
C24C180115/208-230V1/2 hp7.7/3.8-3.7ACradle Base1.2560 HzCapacitor Start56H€494.75
C24C181115/208-230V3/4 hp9.8/5.2-5ACradle Base1.2560 HzCapacitor Start56H€620.81
D24C182115/208-230V1 hp13.6/6.9ACradle Base1.1560 HzCapacitor Start56H€713.31
E6K729115/208-230V1/2 hp4.3-4.2/8.6ACradle Base1.2560 HzSplit Phase56€460.90
F3K617BG115/208-230V3/4 hp11.2/5.6ACradle Base1.2560 HzSplit Phase56H€518.36
G4VAG2115/208-230V1/2 hp4.3-4.2/8.3ACradle Base1.2560 HzSplit Phase56€514.66
H4VAG3BG115/208-230V3/4 hp6.1-6/11.8ACradle Base1.1560 HzSplit Phase56€641.31
I4VAG6BG115/208-230V1/2 hp8.2/4.1ACradle Base1.1560 HzCapacitor Start56€517.14
J4VAG7115/208-230V3/4 hp11.1/5.5ACradle Base1.2560 HzCapacitor Start56€639.06
K4VAG8115/208-230V1 hp4.4-4/7.8ACradle Base1.2560 Hz-56€604.78
L6K366115/230V AC1/3 hp5.7/2.8ACradle Base1.3550/60 HzCapacitor Start56€429.06
M6K376115/230V AC3/4 hp9.8/5ACradle Base1.2550/60 HzCapacitor Start56€767.11
N3K199115/230V AC1/2 hp7.7/3.8ACradle Base1.2550/60 HzCapacitor Start56€643.56
O5K416BG115V AC1/2 hp7.2ACradle Base1.2560 HzSplit Phase56€393.10
P6XH51BG115V AC1/3 hp7.4AFace1.3560 HzSplit Phase56CZ€872.43
Q6XH90BG115V AC1/12 hp3.02AFace1.460 HzSplit Phase56CZ€322.78
R6XH86BG115V AC1/3 hp, 1/9 hp5.8/4.1AFace1.3560 HzSplit Phase56CZ€485.04
S6XH85115V AC1/4 hp, 1/10 hp4.6/3.7AFace1.3560 HzSplit Phase56CZ€775.75
R6XH84BG115V AC1/4 hp, 1/12 hp5.4/2.8AFace1.3560 HzSplit Phase56CZ€372.43
S6XH79BG115V AC1/2 hp, 1/6 hp7.7/3.9AFace1.2560 HzSplit Phase56CZ€880.40
S6XH54115V AC1/6 hp, 1/15 hp4.2/3.1AFace1.3560 HzSplit Phase56CZ€845.99
T6XH53BG115V AC1/2 hp9.2AFace1.2560 HzSplit Phase56CZ€1,042.21
U6XH52BG115V AC1/2 hp8.6AFace1.2560 HzSplit Phase56CZ€555.61
12
