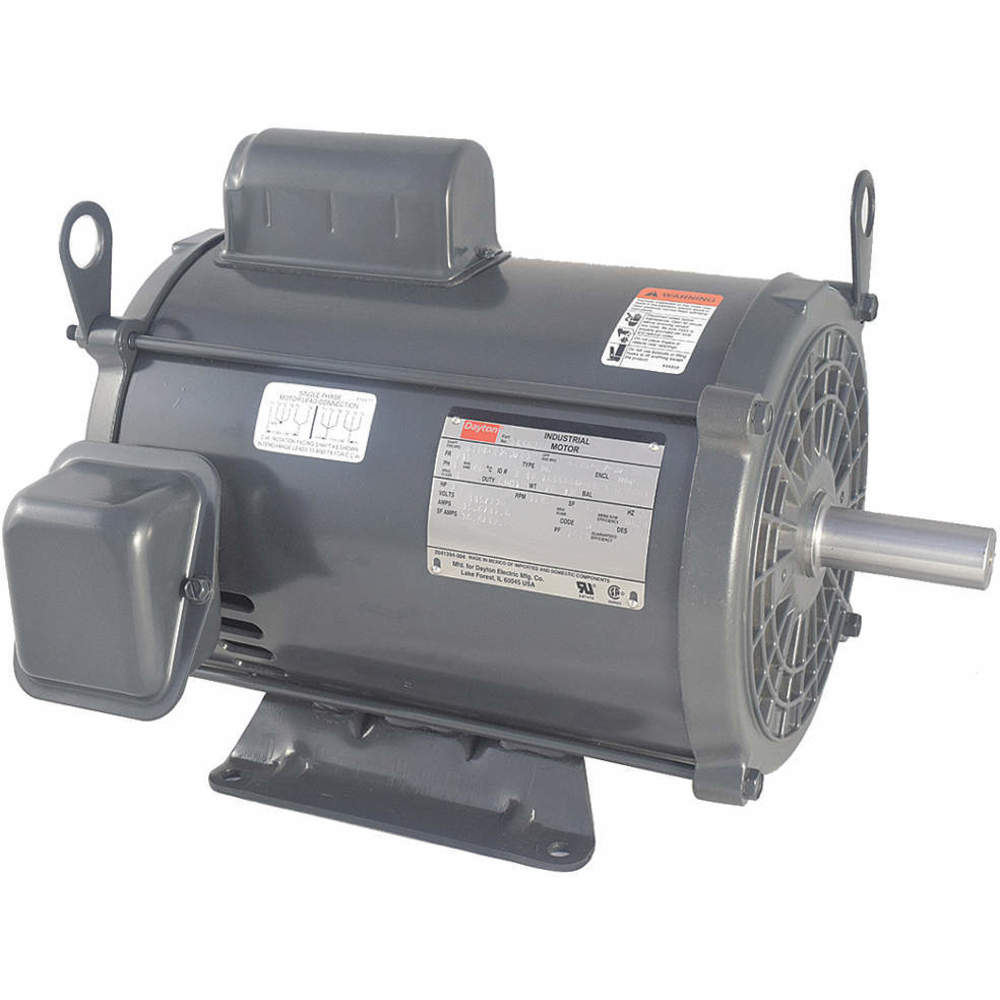

DAYTON 5K483 General Purpose Motor Carbon Steel Odp 3 Hp 1725 Rpm 215
80.4%
Get it by Tuesday, Dec 23
10.00% off
€1,429.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 80.4% |
| Frame | 215 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 35.6/17.8A |
| Hp | 3 hp |
| Includes | Shaft Key |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 13 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Energy Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80.4% |
| Number Of Speeds | 1 |
| Overall Length | 16 7/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 3" |
| Thermal Protection | None |
| Voltage | 115/230V AC |
Shipping Info:
| Ship weight (kg) | 32.4 |
| Ship height (cm) | 33.27 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 38.86 |
| HS code | 8501406040 |
| Country of Origin | US |
Product Variants
| Product | Model | Frequency | Full Load Amps | Service Factor | Nameplate Rpm | Phase | Motor Type | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | 60 Hz | 8.3/4.2A | 1.15 | 1750 RPM | 3 | Three Phase | 3 hp | Face | €693.46 | |
 |
01518OT3H254TC | 60 Hz | 14.9A | 1.15 | 1775 RPM | 3 | Three Phase | 15 hp | Rigid Base | €1,909.02 | |
 |
02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 1765 RPM | 3 | Three Phase | 20 hp | Rigid Base | €2,318.06 | |
|
02018OT3H256TC | 60 Hz | 19.8A | 1.15 | 1770 RPM | 3 | Three Phase | 20 hp | Rigid Base | €2,237.16 | |
|
02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 1770 RPM | 3 | Three Phase | 25 hp | Rigid Base | €2,987.15 | |
|
02518OT3H284TC | 60 Hz | 23.9A | 1.15 | 1770 RPM | 3 | Three Phase | 25 hp | Rigid Base | €3,659.77 | |
|
03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | - | 3 | - | - | - | €3,468.72 |
