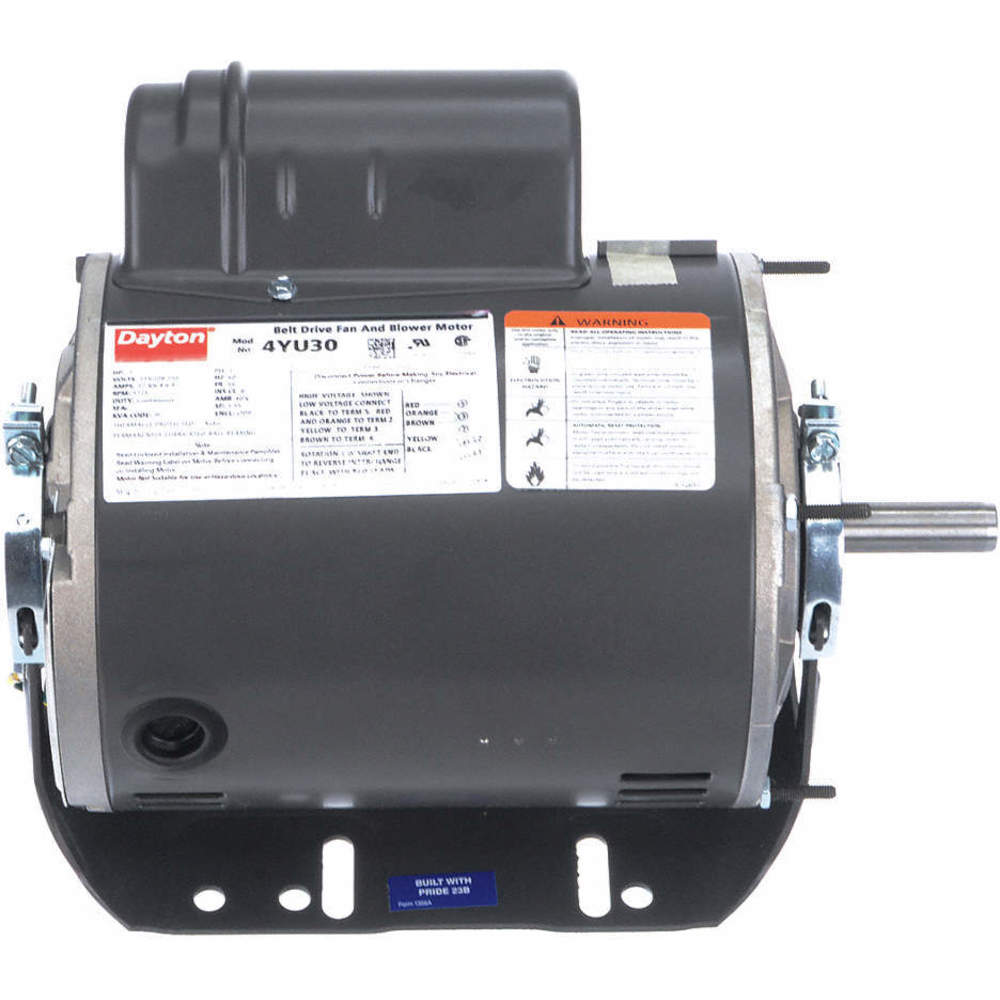

DAYTON 4YU30 Motor Capacitor Start 1 Hp 1725 115/208-230v 56 Odp
Get it by Wednesday, Dec 24
10.00% off
€735.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Capacitor Included | Yes |
| Capacitor Required | Included |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Hp | 1 hp |
| Hz | 60 Hz |
| Includes | Capacitor |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 9 1/8" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Stud Pattern | 4 9/32" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 13.25 |
| Ship height (cm) | 27.69 |
| Ship length (cm) | 49.78 |
| Ship width (cm) | 28.96 |
| HS code | 8501406040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Motor Type | Shaft Dia. | Motor Shaft Rotation | Hp | No. Of Speeds | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1AGF8 | 115V AC | 1550 RPM | Shaded Pole | 1/2" | Counter Clockwise Shaft End | 1/17 hp | 3 | 2 3/4" | €288.91 | |
 |
1AGF9 | 115V AC | 1550 RPM | Permanent Split Capacitor | 1/2" | Counter Clockwise Shaft End | 1/8 hp | 3 | 3 3/4" | €309.38 | |
 |
3LU71 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 6" | €179.41 | |
 |
3LU72 | 208-230V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/6 hp | 4 | 5 13/16" | €263.33 | |
 |
3LU73BG | 115V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €346.96 | |
 |
3LU74 | 208-230V AC | 1625 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 3 | 6" | €379.29 | |
 |
3LU75 | 115V AC | 1075 RPM | Permanent Split Capacitor | 1/2" | Clockwise/Counter Clockwise | 1/4 hp | 4 | 6" | €319.51 |
