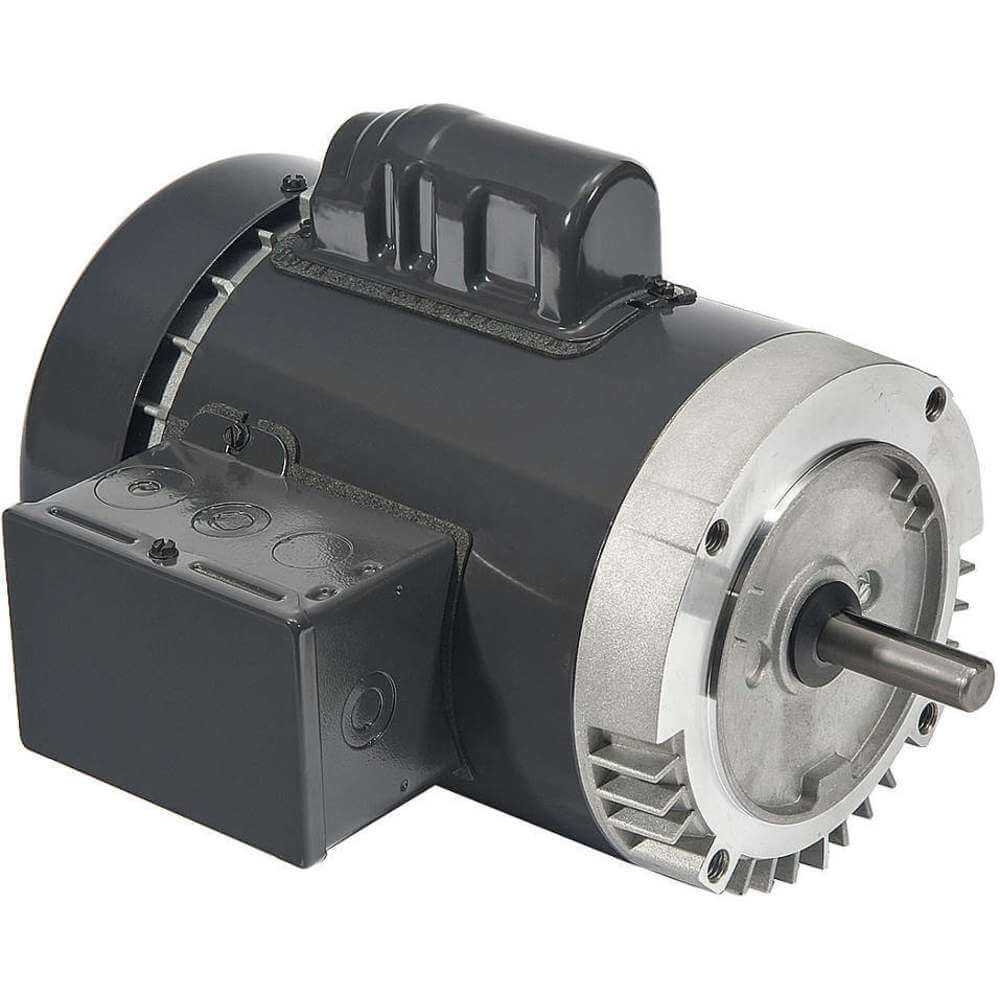

DAYTON 6K436 General Purpose Motor Carbon Steel Tefc 3/4 Hp 1745 Rpm 56c
Get it by Wednesday, Dec 24
10.00% off
€608.02 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 70.2% |
| Footnotes | 51 |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11/5.4-5.5A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 13/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70.2% |
| Number Of Speeds | 1 |
| Overall Length | 12 1/2" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Csa (225293), Ul (E47479) |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 13.25 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 35.56 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Phase | Frequency | Full Load Amps | Motor Type | Service Factor | Nameplate Rpm | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U3E3DCR | 230/460V AC | 3 | 50/60 Hz | 9.1/4.5A | Three Phase | 1.25 | 1200 RPM | 3 hp | €1,167.75 | |
 |
2TJ12 | 230V AC | 1 | 60 Hz | 22A | Capacitor Start/Run | 1 | 1740 RPM | 5 hp | €1,911.34 | |
 |
182TTFBD6079 | 230/460V AC | 3 | 60 Hz | 4.6/2.3A | Three Phase | 1.15 | 1175 RPM | 1 1/2 hp | €1,572.53 | |
 |
5GD60 | 115/208-230V AC | 1 | 60 Hz | 11.4/5.7A | Capacitor Start | 1.15 | 1725 RPM | 3/4 hp | €511.18 | |
 |
5K596 | 115V AC | 1 | 60 Hz | 8A | Split Phase | 1 | 1725 RPM | 1/2 hp | €373.89 | |
|
5K618 | 115V AC | 1 | 60 Hz | 7.2/5A | Split Phase | 1 | 1725/1140 RPM | 1/4 hp, 1/2 hp | €499.18 | |
 |
5K968 | 230V AC | 1 | 60 Hz | 23A | Capacitor Start/Run | 1 | 1745 RPM | 5 hp | €2,201.96 |
