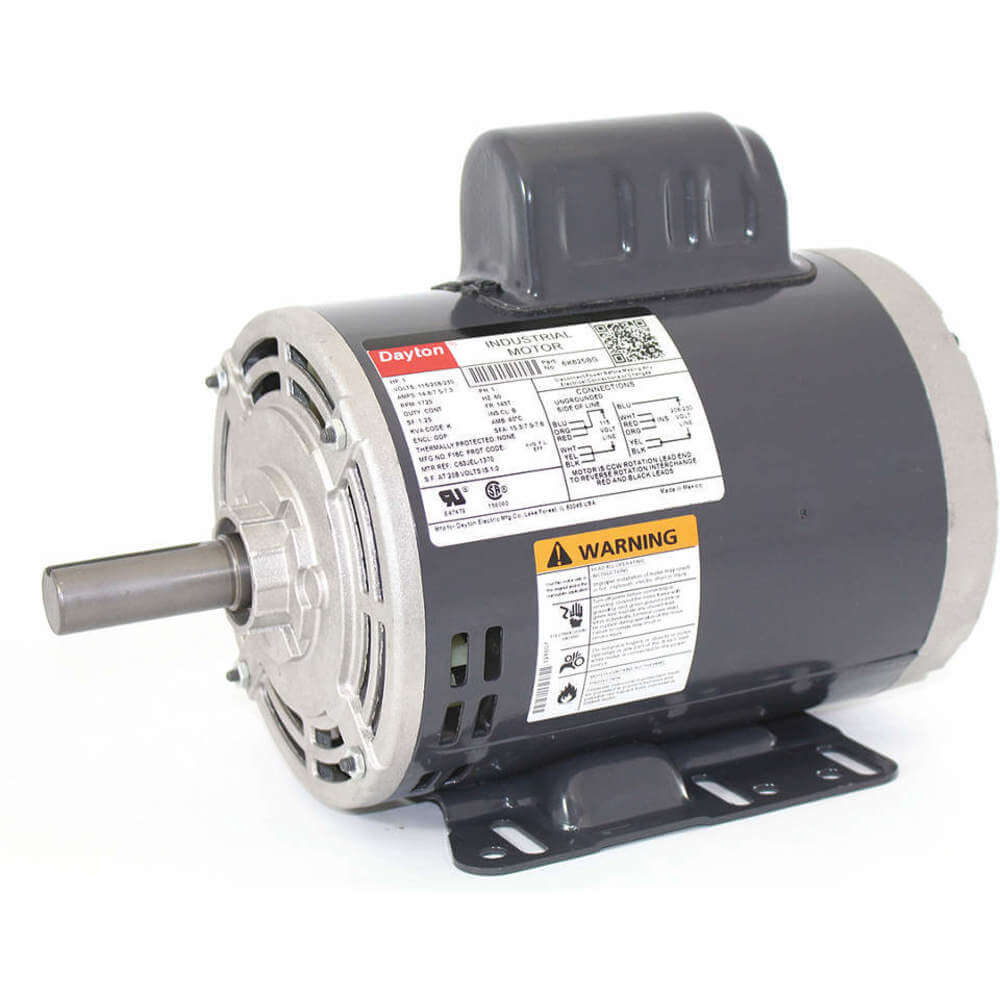

DAYTON 6K825 General Purpose Motor Carbon Steel Odp 1 Hp 1730 Rpm 143t
71.5%
Get it by Tuesday, Feb 17
10.00% off
€515.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 71.5% |
| Footnotes | 51 |
| Frame | 143T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 14.8/7.5-7.3A |
| Hp | 1 hp |
| Includes | Shaft Key, Conduit Box |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 71.5% |
| Number Of Speeds | 1 |
| Overall Length | 12 1/4" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 27.43 |
| Ship length (cm) | 48.77 |
| Ship width (cm) | 28.7 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
Dayton 6K825 general-purpose motor is ideal for pumps, fans, compressors, blowers, industrial machines & conveyors.
Features:
- This motor conserves energy over extended periods of time.
- It features an open drip-proof enclosure for preventing heating of windings.
- This motor is equipped with ball bearings for low rotational friction.
- It has power factor ranging from 69.7 to 75.8 and can run at speeds up to 1744 rpm.
- This motor has frames made of rolled steel for structural rigidity and long service life.
Frequently Asked Questions:
Q. What material are the windings made of?
A. This motor uses copper windings for high electrical conductivity and heat resistance.
Q. What safety protocols does Dayton 6K825 general-purpose motor adhere to?
A. It features Class B insulation to ensure safety.
Q. What is the significance of the letters C and T written on this motor?
A. The letter 'C' indicates that the motor can be face-mounted and the letter 'T' signifies integral HP motor dimension standards set by NEMA in 1953 and 1964.
Q. What is the nominal efficiency of this motor?
A. This motor delivers nominal maximum efficiency of 71.5%.
Product Variants
| Product | Model | Frequency | Full Load Amps | Service Factor | Phase | Nameplate Rpm | Motor Type | Hp | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
11W342 | 60 Hz | 8.3/4.2A | 1.15 | 3 | 1750 RPM | Three Phase | 3 hp | Face | €693.46 | |
 |
02018OT3E256TC-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €2,318.06 | |
|
02518OT3E284TC-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,987.15 | |
|
03018OT3E286TC-W40 | 60 Hz | 69.8/34.9A | 1.25 | 3 | - | - | - | - | €3,468.72 | |
 |
02018OT3E256T-W40 | 60 Hz | 48.2/24.1A | 1.25 | 3 | 1765 RPM | Three Phase | 20 hp | Rigid Base | €1,996.98 | |
|
02036OT3E254T-W40 | 60 Hz | 48.6/24.3A | 1.25 | 3 | 3535 RPM | Three Phase | 20 hp | Rigid Base | €2,075.40 | |
 |
02518OT3E284T-W40 | 60 Hz | 59/29.5A | 1.25 | 3 | 1770 RPM | Three Phase | 25 hp | Rigid Base | €2,031.73 |
