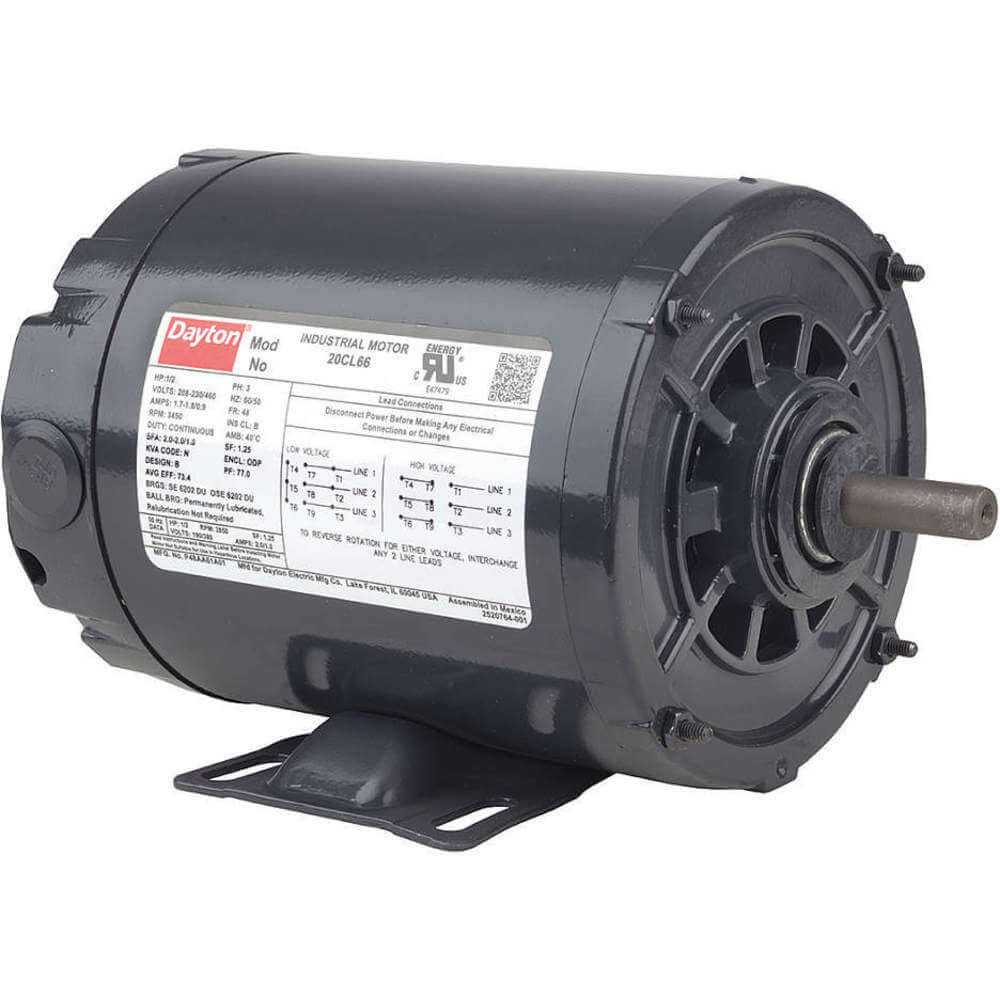

DAYTON 20CL66 3-phase 1/2 Hp 3450rpm 48 Eff 73.4
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€367.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 73.4% |
| Efficiency Group | Energy |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.8/0.9A |
| Green Certification Or Other Recognition | Energy Aware |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 7 15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3 Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal/Vertical Shaft Down |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 73.4% |
| Overall Length | 9 7/16" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | None |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 7.21 |
| Ship height (cm) | 22.1 |
| Ship length (cm) | 31.5 |
| Ship width (cm) | 23.88 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Variants
| Model | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Efficiency | Overall Length | Length Less Shaft | Rpm Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 20CL65 | 3450 RPM | 1/3 hp | 1.4/0.7A | 1.35 | 69.5% | 9 5/16" | 7 3/4" | 3001-3600 RPM | €437.73 | |
| 103817.00 | 1725 RPM | 1/4 hp | 1/0.5A | 1.35 | 69.5% | 10 3/8" | 8 3/4" | 1701-1800 RPM | €495.65 | |
| 103818.00 | 1725 RPM | 1/3 hp | 1.2/0.6A | 1.35 | 73.4% | 10 7/8" | 9 3/8" | 1701-1800 RPM | €796.28 |
