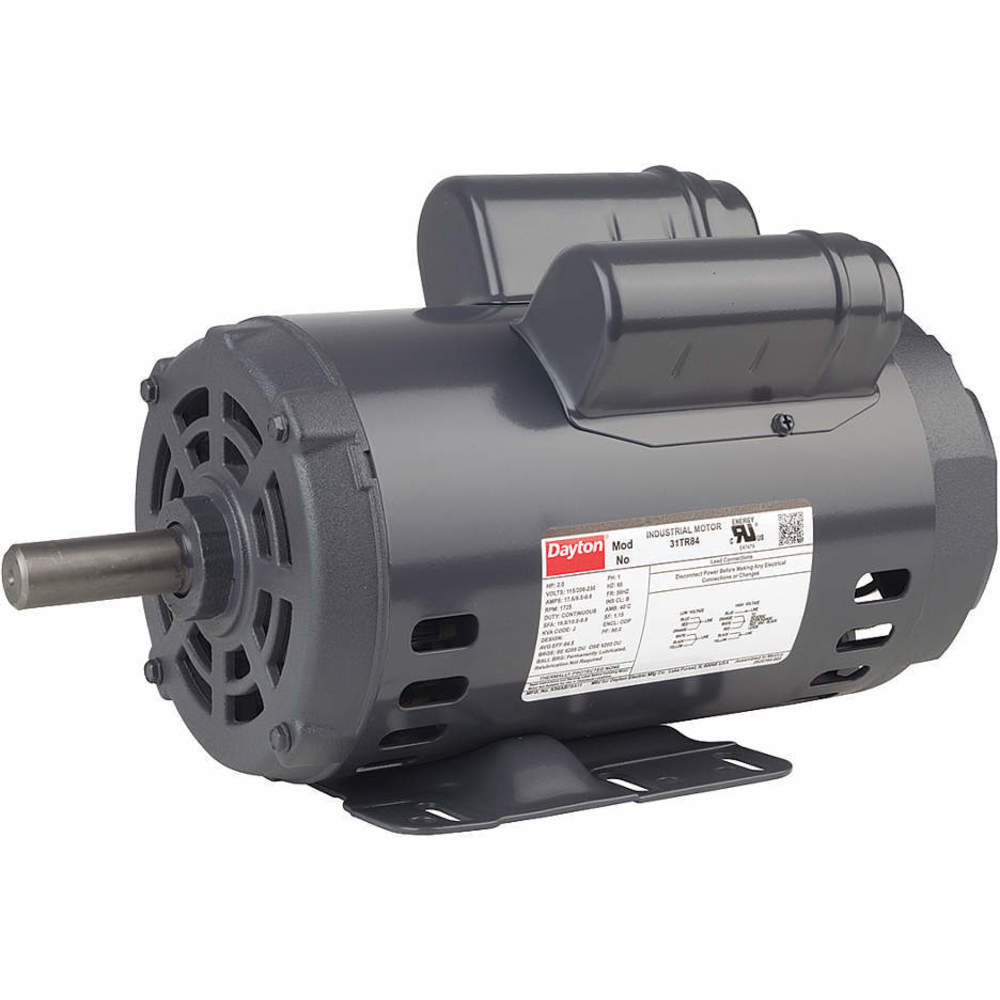

DAYTON 31TR81 Motor Capacitor Start / Capacitor Run Open Dripproof 1 Hp 1725 56hz Eff 82.6
Get it by Wednesday, Dec 24
10.00% off
€1,084.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.6% |
| Efficiency Group | Premium |
| Frame | 56HZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.4/4.6-4.2A |
| Green Certification Or Other Recognition | Energy Aware |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hp | 1 hp |
| Includes | Start/Run Capacitors(506 MFD, 165V Start Capacitor & 65 MFD, 240V Run Capacitor) |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.6% |
| Number Of Speeds | 1 |
| Overall Length | 13 1/4" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Standards | Ul (E47479) |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 19.31 |
| Ship height (cm) | 27.69 |
| Ship length (cm) | 39.12 |
| Ship width (cm) | 26.42 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Nameplate Rpm | Full Load Amps | Mounting Type | Frame | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103805.00 | 115/208-230V AC | 1/2 hp | 1.25 | 3450 RPM | 4.4/2.4-2.2A | Rigid Base | 48 | Automatic | €863.34 | |
 |
30PT69 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56 | Automatic | €673.11 | |
|
30PT70 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56 | None | €801.32 | |
 |
30PT71 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56H | Automatic | €748.22 | |
 |
30PT38 | 115/230V AC | 1/4 hp | 1.35 | 1725 RPM | 3.1/1.5A | Face | 56C | None | €477.14 | |
|
30PT40 | 115/230V AC | 1/2 hp | 1.25 | 1725 RPM | 5/2.6A | Face | 56C | None | €773.94 | |
 |
30PT41 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Face | 56C | None | €861.64 |
