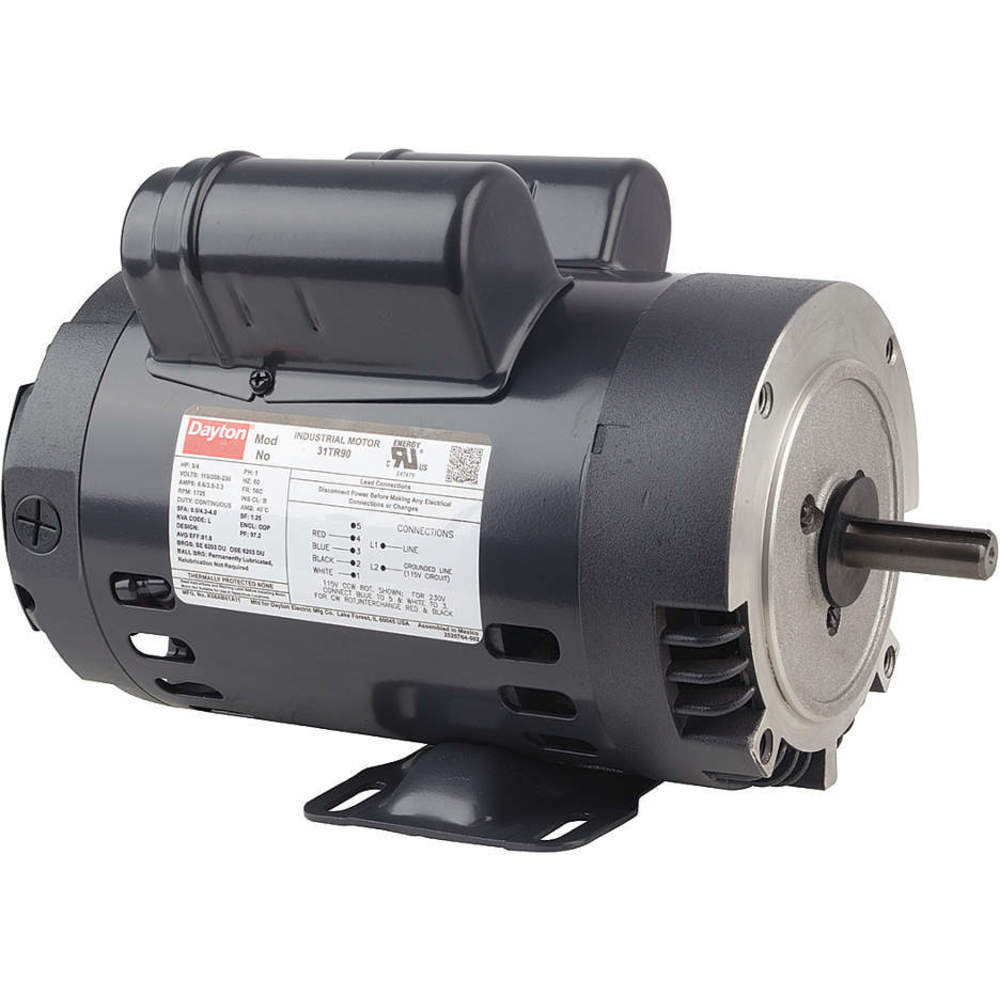

DAYTON 119160.00 Motor Capacitor Start / Capacitor Run Open Dripproof 3/4 Hp 1725 56c Eff 81.8
Get it by Tuesday, Sep 1
5.00% off
€1,263.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 81.8% |
| Efficiency Group | Premium |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.5-3.3A |
| Green Certification Or Other Recognition | Energy Aware |
| Hp | 3/4 hp |
| Included | Start/Run Capacitors |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Capacitor Start, Run |
| Nameplate Speed | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.8% |
| Overall Length | 13 1/8" |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | None |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 18.7 |
| Ship height (cm) | 27.18 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 23.62 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Full Load Amps | Mounting Type | Frame | Thermal Protection | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103805.00 | 115/208-230V AC | 1/2 hp | 1.25 | 4.4/2.4-2.2A | Rigid Base | 48 | Automatic | 1/2" | €812.55 | |
 |
30PT69 | 115/230V AC | 3/4 hp | 1.25 | 7/3.5A | Cradle Base | 56 | Automatic | 5/8" | €703.21 | |
|
30PT70 | 115/230V AC | 3/4 hp | 1.25 | 7/3.5A | Cradle Base | 56 | None | 5/8" | €747.06 | |
 |
30PT71 | 115/230V AC | 3/4 hp | 1.25 | 7/3.5A | Cradle Base | 56H | Automatic | 5/8" | €759.45 | |
 |
30PT38 | 115/230V AC | 1/4 hp | 1.35 | 3.1/1.5A | Face | 56C | None | 5/8" | €498.47 | |
|
30PT40 | 115/230V AC | 1/2 hp | 1.25 | 5/2.6A | Face | 56C | None | 5/8" | €728.42 | |
 |
30PT41 | 115/230V AC | 3/4 hp | 1.25 | 7/3.5A | Face | 56C | None | 5/8" | €865.83 |
